Ruijie RG-EW3000GX AX3000 DUAL-BAND GIGABIT WI-FI 6 GAMING ROUTER. NEXT-GEN GIGABIT WI-FI 6 SPEED
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

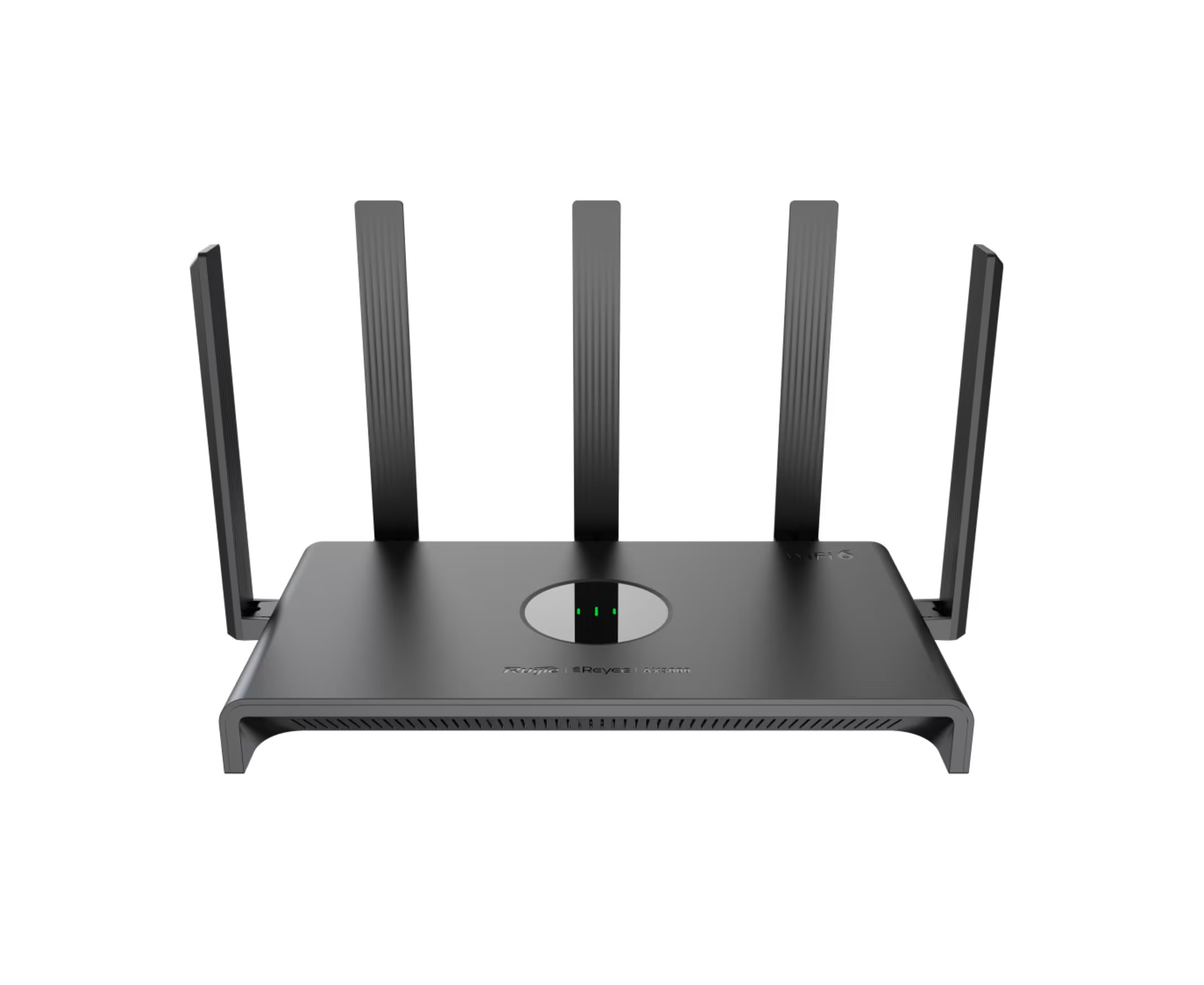

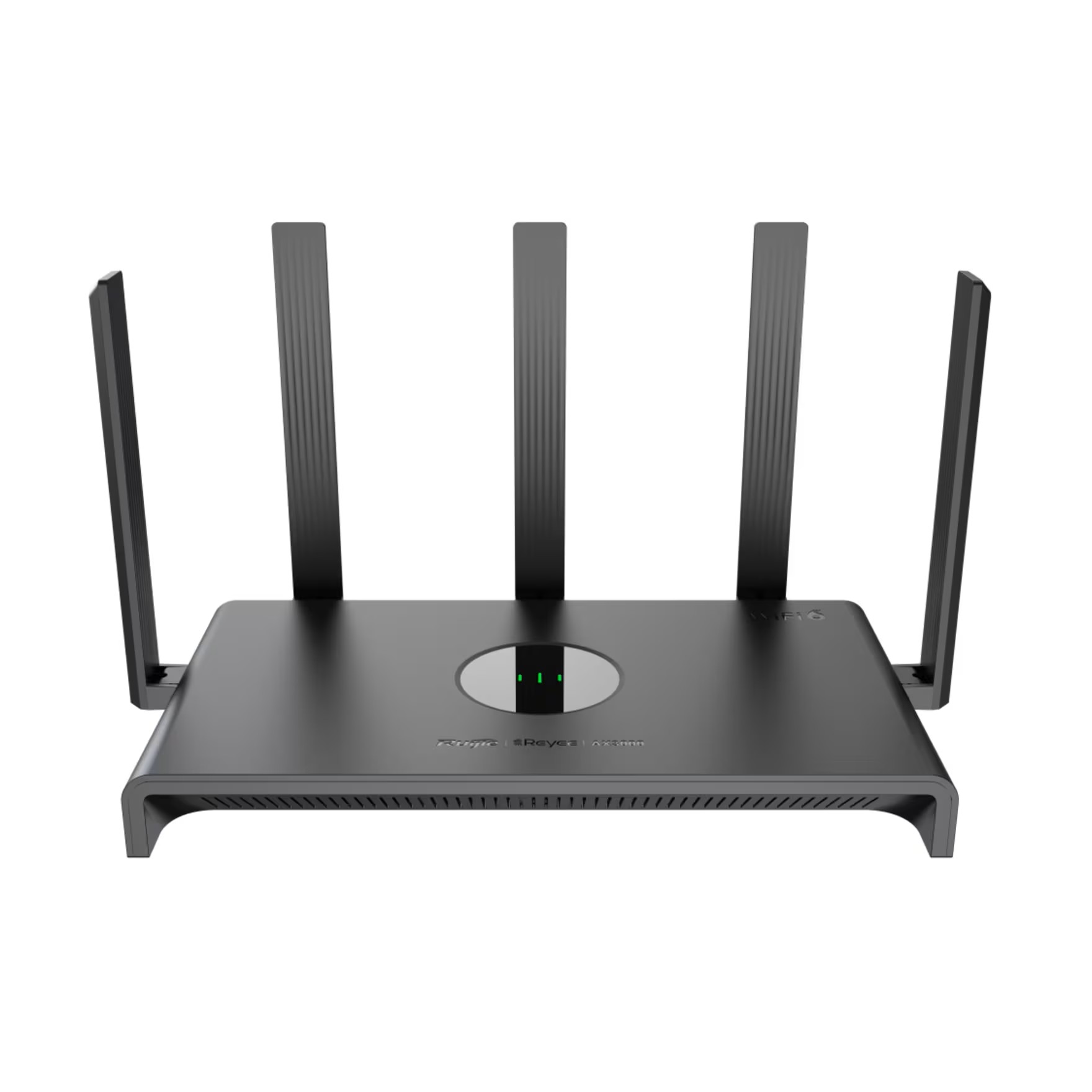

Ruijie RG-EW3000GX Wi-Fi 6 Router – High-Speed, Reliable, and Mesh-Ready
Experience seamless, high-speed internet throughout your home or small office with the Ruijie RG-EW3000GX. Designed with the latest Wi-Fi 6 technology, this dual-band router delivers lightning-fast speeds of up to 3000 Mbps, ensuring smooth 4K streaming, online gaming, and fast downloads across all your devices.
Equipped with five high-gain external antennas, the RG-EW3000GX provides extensive coverage, eliminating dead zones and keeping every corner of your home connected. Its mesh networking capability allows you to easily expand your network by adding additional units, creating a unified, high-performance Wi-Fi system for multi-story homes or larger spaces.
The router features multiple Gigabit Ethernet ports, including dual-WAN support, enabling reliable wired connections and even the ability to combine two internet connections for maximum performance. With advanced network management, the RG-EW3000GX supports up to 60 users simultaneously, making it perfect for busy households, home offices, and small businesses.
Compact, energy-efficient, and easy to set up, the Ruijie RG-EW3000GX combines powerful performance with reliability and flexibility, giving you a modern Wi-Fi solution that keeps your devices connected, fast, and secure.
Key Features:
-
Wi-Fi 6 (802.11ax) dual-band for ultra-fast wireless speeds
-
Combined speed up to 3000 Mbps for smooth streaming and gaming
-
Five high-gain external antennas for extensive coverage
-
Mesh networking capability for seamless Wi-Fi expansion
-
Dual-WAN support for increased reliability and performance
-
Gigabit Ethernet ports for fast wired connections
-
Supports up to 60 users simultaneously
