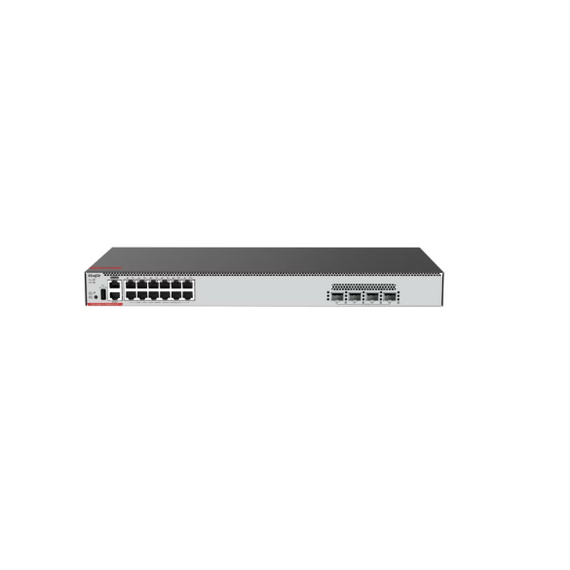

Ruijie RG-NBS3300-16MG4XS-HP 20-Port Multi-Gigabit Layer 2 Cloud Managed PoE++ Switch with 4 × 10G SFP+ Uplinks
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Ruijie RG-NBS3300-16MG4XS-HP 20-Port Multi-Gigabit Layer 2 Cloud Managed PoE++ Switch with 4 × 10G SFP+ Uplinks
The Ruijie RG-NBS3300-16MG4XS-HP is a next-generation Layer 2 cloud managed switch designed to meet the demands of modern enterprise, education, hospitality and surveillance networks. Equipped with Multi-Gigabit access ports and high-speed 10GbE fibre uplinks, it provides the bandwidth required for Wi-Fi 6, Wi-Fi 6E and Wi-Fi 7 wireless deployments, as well as high-resolution IP surveillance and bandwidth-intensive business applications. The switch features 16 × 10/100/1000/2500BASE-T RJ45 ports and 4 × 10GbE SFP+ uplink ports. All RJ45 ports support Power over Ethernet, including 4 IEEE 802.3bt PoE++ ports capable of delivering up to 90W per port, while the remaining 12 ports support IEEE 802.3af/at PoE+ with up to 30W per port. A generous 370W PoE budget enables the switch to power multiple high-performance wireless access points, PTZ cameras and other PoE-enabled devices simultaneously. The RG-NBS3300-16MG4XS-HP includes a comprehensive suite of Layer 2 management features such as VLAN, QoS, Link Aggregation, STP/RSTP, IGMP Snooping, ACLs, DHCP Snooping, Port Mirroring, Port Isolation and 802.1X authentication. Advanced CPU Protection Policy (CPP) and enterprise-grade security mechanisms help safeguard the network from attacks whilst ensuring reliable performance. Management is simplified through Ruijie Cloud, allowing administrators to remotely configure, monitor and troubleshoot the network using the web interface or the Ruijie Reyee App. With zero-touch deployment, cloud monitoring and firmware upgrades, the switch reduces installation time and ongoing maintenance costs.
KEY FEATURES
- 16 × 10/100/1000/2500BASE-T Multi-Gigabit RJ45 ports
- 4 × 10GbE SFP+ uplink ports (non-combo)
- Layer 2 cloud-managed switch
- 4 × IEEE 802.3bt PoE++ ports (Ports 1–4, up to 90W each)
- 12 × IEEE 802.3af/at PoE/PoE+ ports (Ports 5–16, up to 30W each)
- 370W total PoE power budget
- 160Gbps switching capacity
- 119.04Mpps forwarding rate
- 16K MAC address table
- Up to 4,094 VLANs (802.1Q, Port-based VLAN, Voice VLAN)
- Static Link Aggregation (LAG)
- Spanning Tree Protocol (STP/RSTP)
- LLDP and LLDP-MED
- IGMP Snooping v1/v2/v3, IGMP Fast Leave and MVR
No reviews found
