Ruijie RG-POE-AT30 802.3at 48v Gigabit PoE + Injector
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

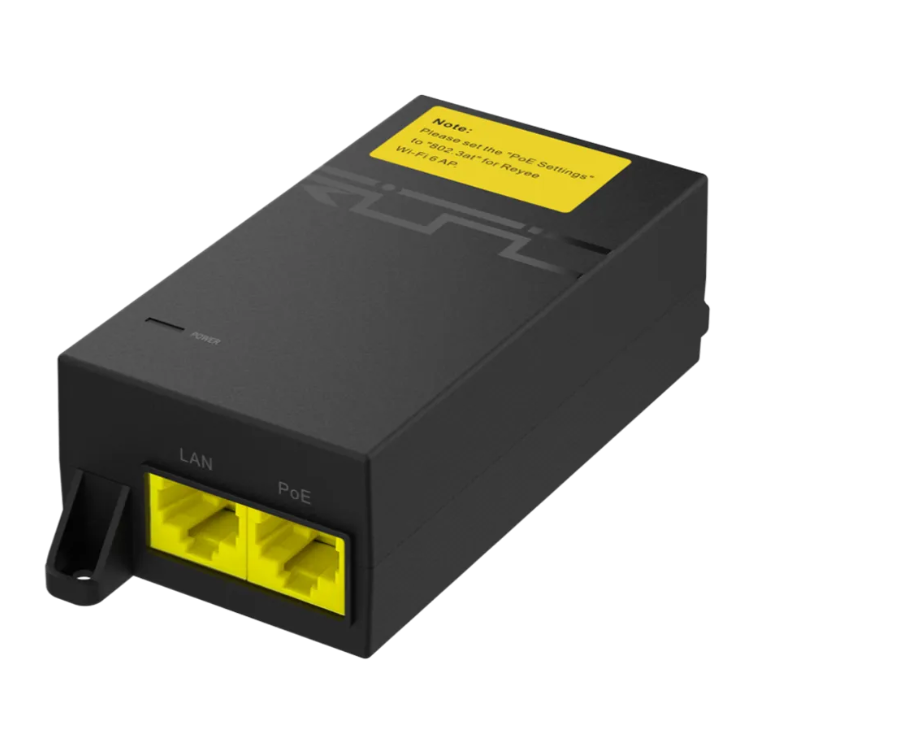

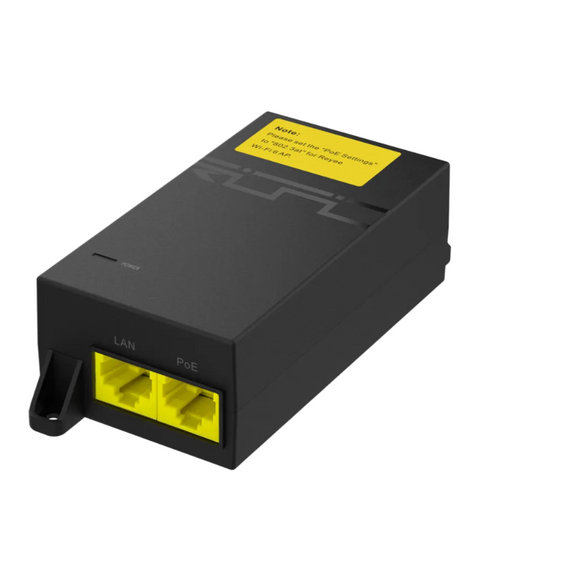

Ruijie Reyee RG-POE-AT30 GbE PoE+ Injector
The Ruijie Reyee RG-POE-AT30 Gigabit Power Over Ethernet PoE+ Injector is designed to power network devices with efficiency and reliability. Boasting an output voltage of 52V DC at 0.60A, this injector ensures a steady and robust power supply for connected devices. With a rated voltage range of 100-240V AC at 50/60Hz and an input current of 0.7A (Max), the RG-POE-AT30 demonstrates versatile compatibility while maintaining an inrush current of less than 100A at 230V AC, guaranteeing a smooth and secure power initiation process. Additionally, its 2-pair powering configuration on pins 4,5(+) and pins 7,8(-) ensures optimised power delivery for enhanced network performance.
Key Features
- Stable and high-performance power supply for access points.
- Adapted for a range of environmental temperatures.
- Better surge protection range.
- Compatible with the following products:
- RG-RAP1200(F)
- RG-RAP1200(P)
- RG-RAP1201
- RG-RAP1260
- RG-RAP1261
- RG-RAP2200(F)
- RG-RAP2200(E)
- RG-RAP2260
- RG-RAP2260(G)
- RG-RAP2260(E)
- RG-RAP2266
- RG-RAP6202(G)
- RG-RAP6260(G)
- RG-RAP6262
- RG-RAP6262(G)
