Ruijie RG-RAP72Pro WI-FI7 BE5040 DUAL-BAND CEILING ACCESS POINT
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

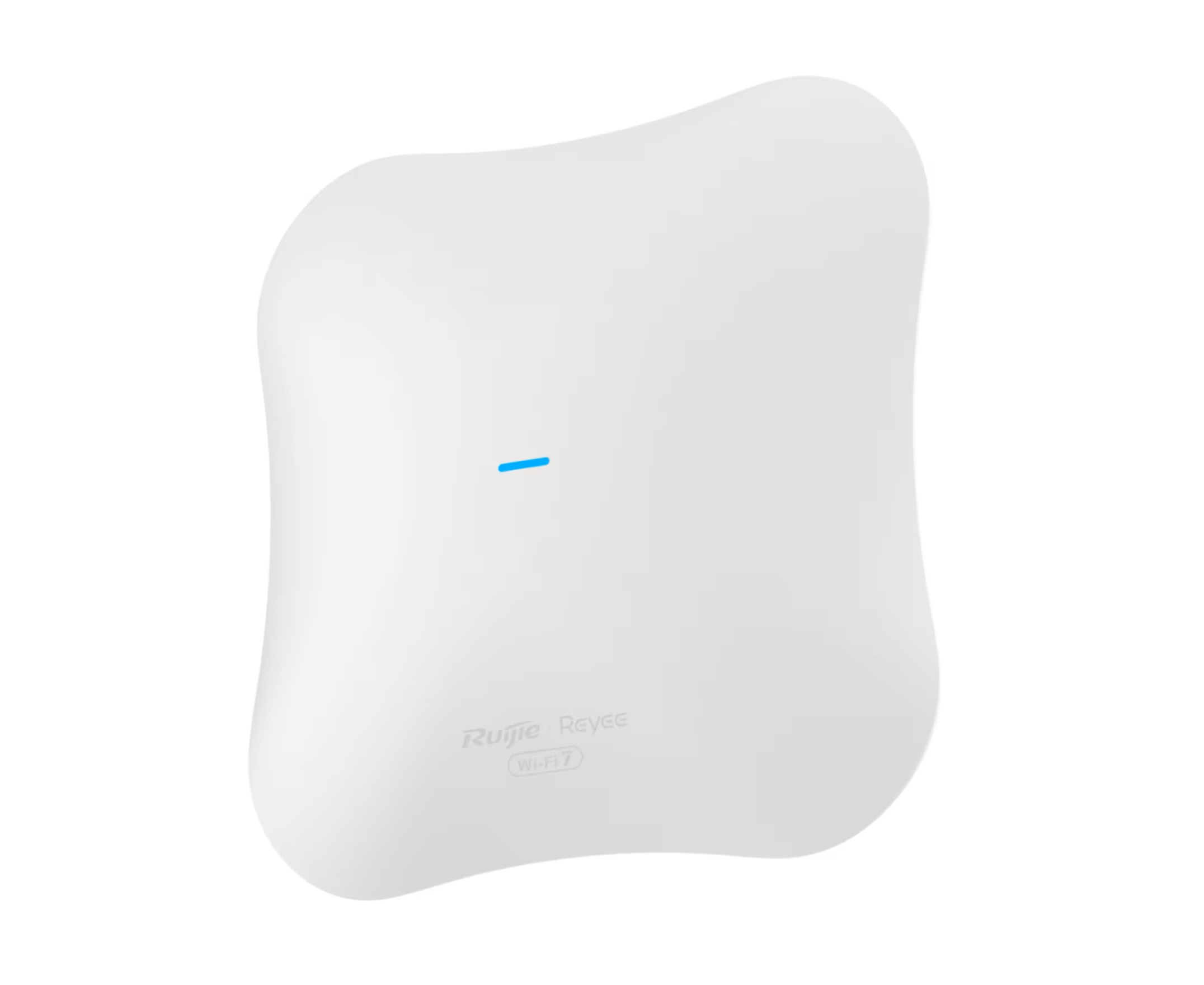

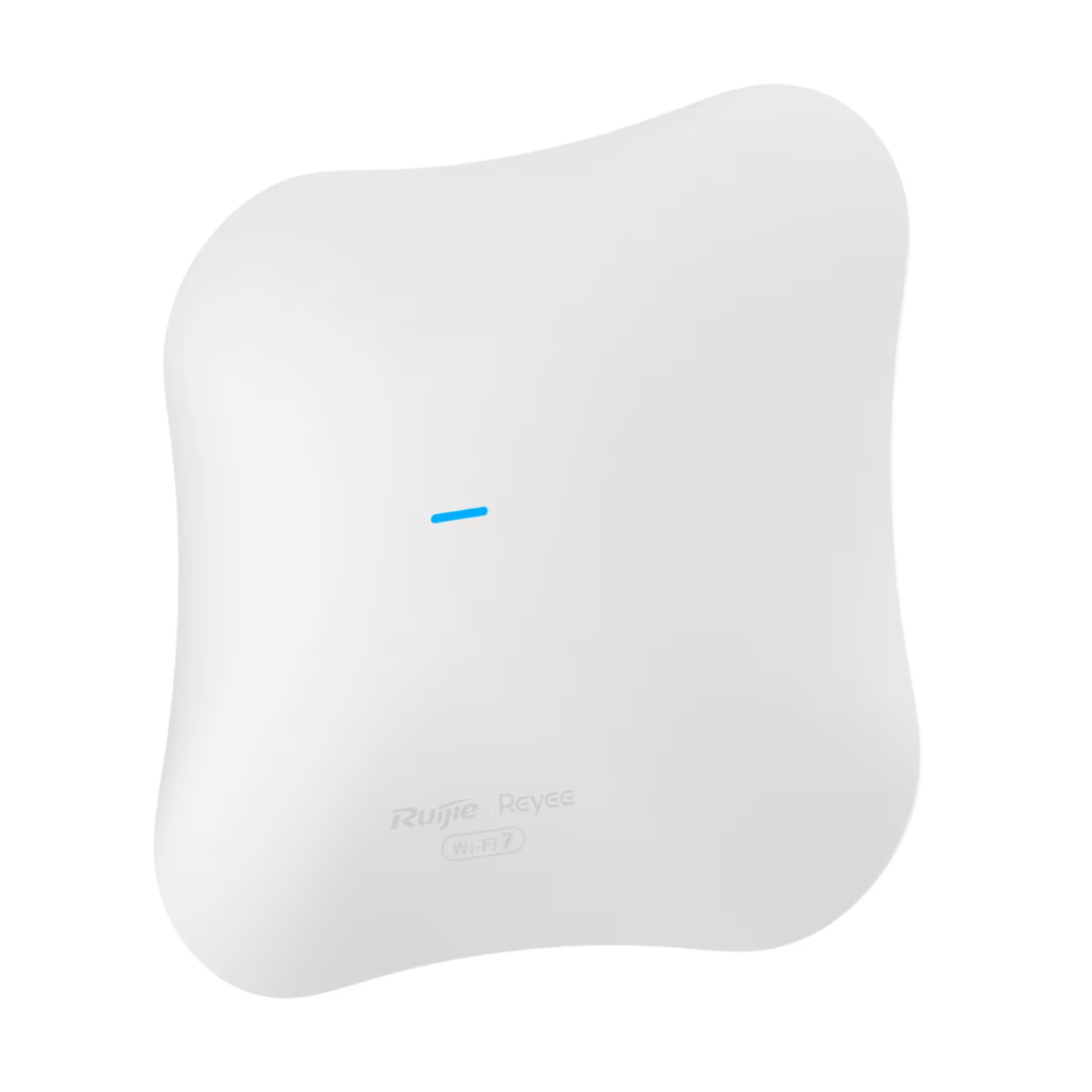

Ruijie RG-RAP72Pro — Wi-Fi 7 Dual-Band Ceiling Access Point
The Ruijie RG-RAP72Pro is a high-performance Wi-Fi 7 ceiling-mounted access point designed for modern enterprise and commercial environments. It delivers ultra-fast wireless speeds, strong multi-device performance, and wide coverage, making it suitable for offices, schools, hospitality, retail, and high-density public spaces.
This access point supports both 2.4 GHz and 5 GHz bands with advanced MU-MIMO technology, providing a combined wireless throughput of up to 5011 Mbps. Built-in omnidirectional antennas ensure stable area-wide coverage, while support for modern features such as OFDMA, 4K-QAM, multi-link operation, and mesh networking enhances performance in busy networks.
The RG-RAP72Pro includes one Gigabit Ethernet port and one 2.5G Ethernet uplink port for high-speed backhaul. It can be powered via 802.3at PoE+ or an optional 12 V DC adapter, allowing flexible installation without additional cabling. It supports up to 8 SSIDs, enterprise-level security standards including WPA3, VLAN segmentation, and client isolation, making it suitable for multi-purpose networks.
Key Features
-
Wi-Fi 7 dual-band indoor access point
-
Combined wireless throughput up to 5011 Mbps
-
2.4 GHz 2×2 MU-MIMO and 5 GHz 3×3 MU-MIMO
-
Supports OFDMA, 4K-QAM, MLO, and mesh networking
-
1 × Gigabit Ethernet port and 1 × 2.5G uplink port
-
Powered via 802.3at PoE+ or 12 V DC adapter
-
Supports up to 8 SSIDs and enterprise-grade security
-
Ceiling or wall mounting design
