Smoke Screen Defender 12V Vehicle Security Fog/Cloak Machine
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
Meet Defender, a paradigm shift in vehicle security.
Defender is a battery-operated, microprocessor-controlled fog generator, utilising the vaporise principle for efficient fog creation.
This 12V powerhouse transcends conventional alarms, emerging as a proactive guardian for your valuable tools and assets on the move.
Specially designed for vehicles, At the first sign of intrusion, it responds with a rapid fog deployment, creating an immediate and disorienting barrier, turning your vehicle into an unwelcome territory for intruders.
But this is no ordinary fog – it’s a sophisticated blend that vanishes without a trace, leaving no smell or residue, ensuring the integrity of your vehicle’s interior.
Its unique sleep mode drastically reduces power consumption, using only 1.5 milliamperes in stand-by, allowing about 250 hours of standby time on a 12ah battery. Once installed and connected to the battery, Defender is armed when the vehicle is unattended. Remarkable!
Defender: shielding your valuables.
- 400w power rating
- Continuous burst only limited by consumable
- Connects to existing vehicle electrics
- Rapid heating capability
- Can be controlled/alarmed by existing vehicle alarm system (depending on system capabilities)
- £10 million product and public liability insurance
- 12 month warranty.

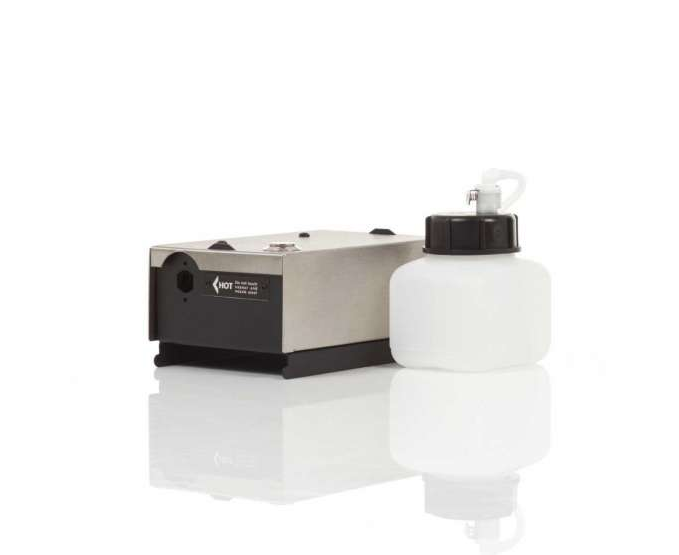

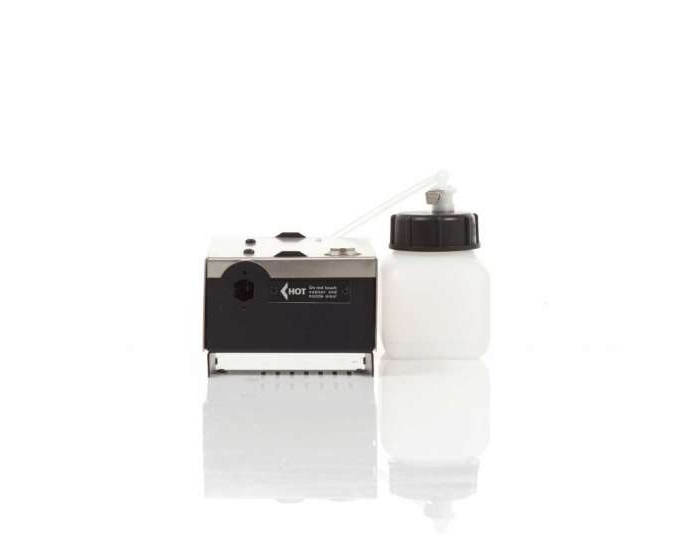

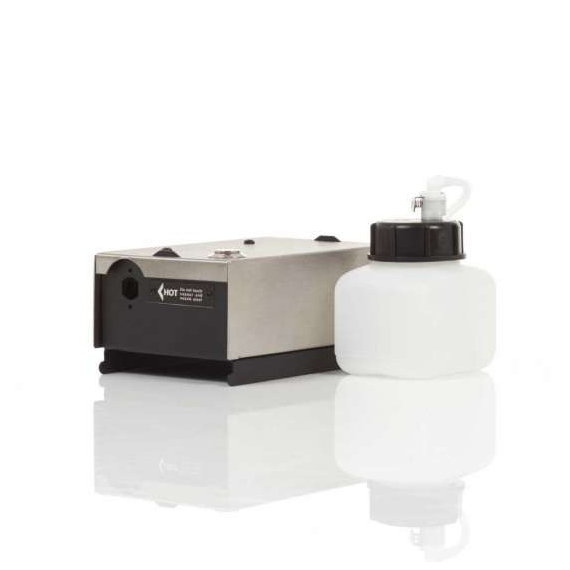

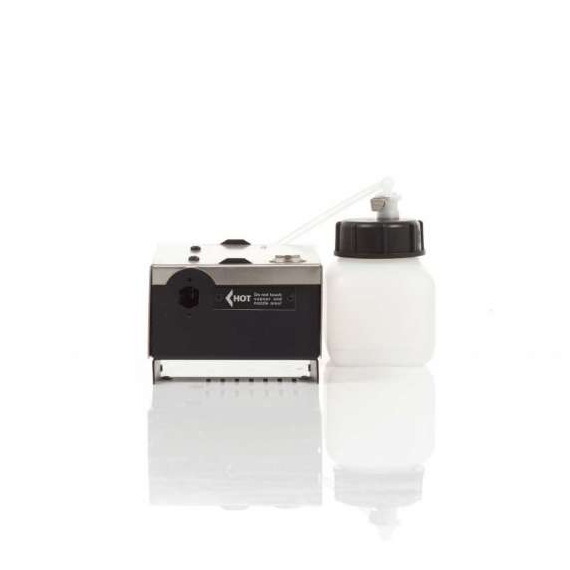

- Rugged and compact steel casing in silver
- Stainless steel heating coil

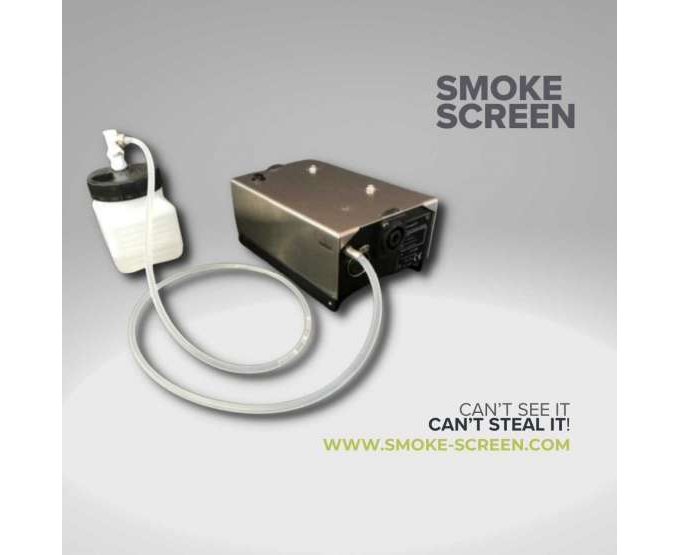

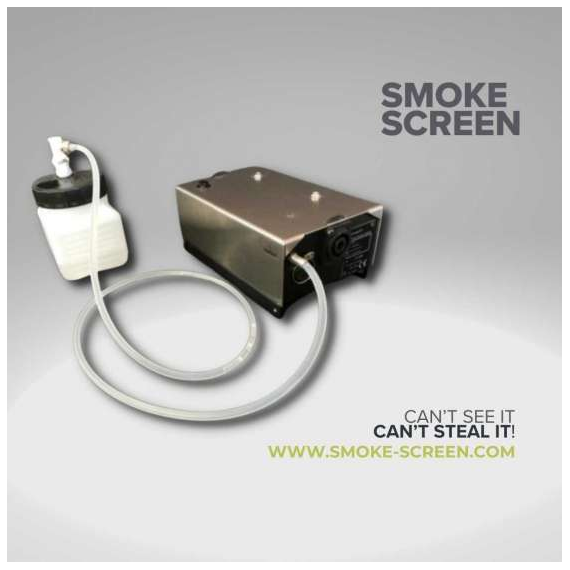

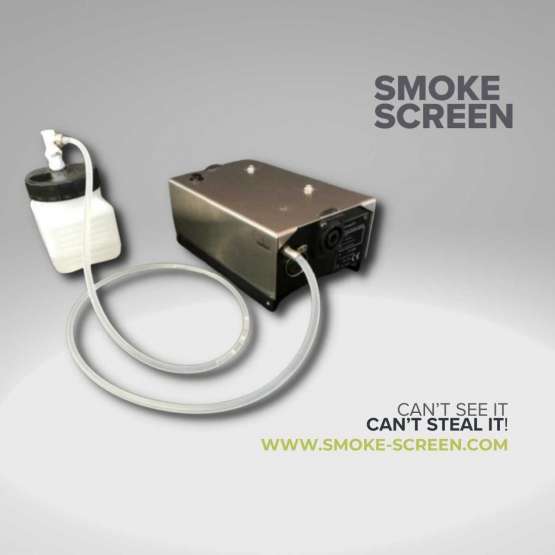

- 50cm hose connecting unit to reservoir for installation versatility
- CE marked
- 250ml fluid system (supplied with additional 500ml refill)
- 16(H) x 10(D) x 7.5(W) cm
- Weight: 970g.
