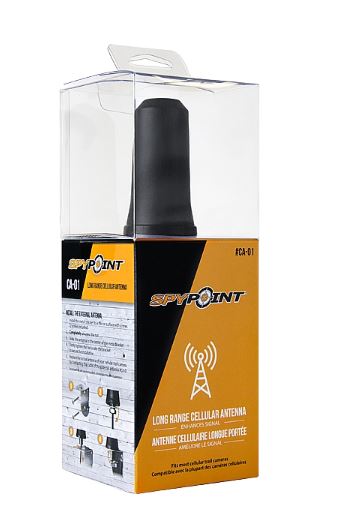

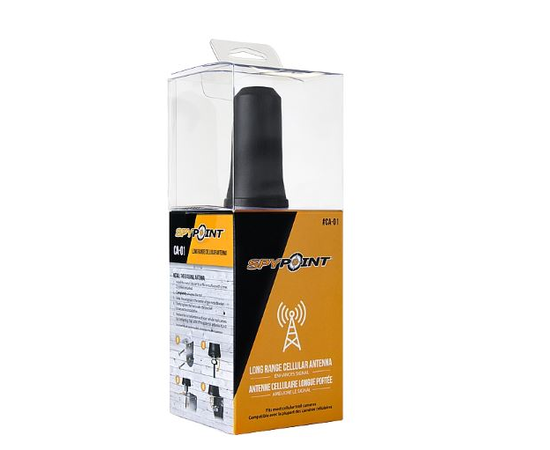

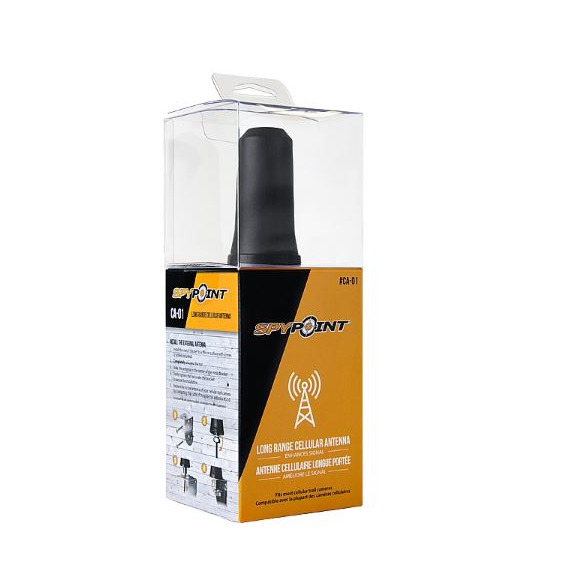

Spypoint Cellular Trail Camera Booster Antenna
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

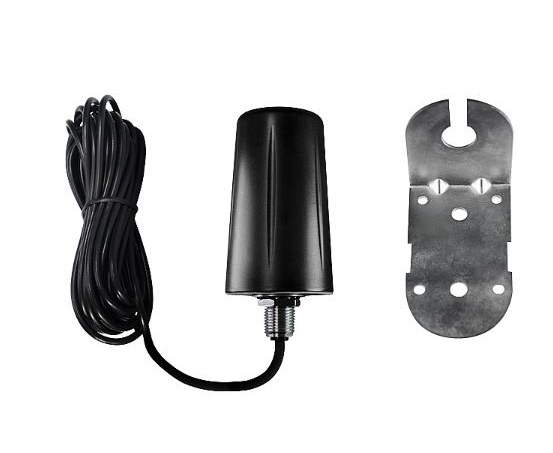

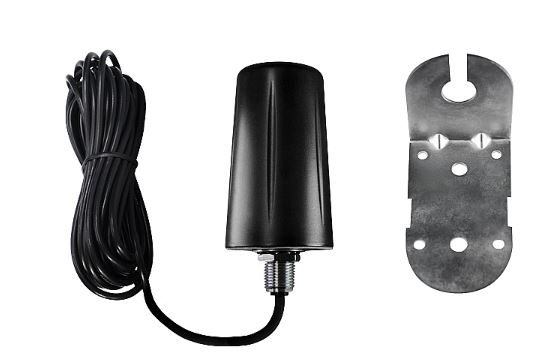

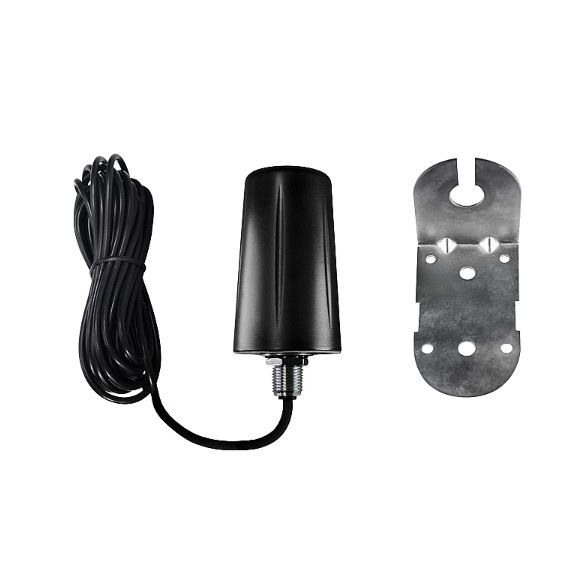

Need a signal boost? This external, passive, omnidirectional antenna can boost cellular signal in low coverage areas. The 15-foot cable and attached mounting bracket make installation a snap, and ensures you can get into position. No external power source is required, and the included adapter means it works with most cellular cameras on the market.
Designed to help boost signal for any Spypoint LINK Trail Camera, allowing for a more efficient transmission of image/ video data to the Spypoint LINK App over long distances.
Simply remove your Trail cameras antenna and screw-in the Cellular Trail Camera Booster Antenna. Then use the supplied metal bracket to secure the accessory to the target object.
Features:
- Boost LINK Trail Camera signal in those out of network range areas
- Long distance effective (Gain:5 dBi - between 1-2 bars)
- Compatible with LTE and lower speed networks I.E.: 4G, 3G, etc.
- External omnidirectional antenna, effective in low coverage areas
- 4.9m (16ft) cable
- RP-SMA Connector
- LINK Series compatible
- Uses the Trail Cameras power source
