Spypoint FORCE-PRO Trail camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
Product Description

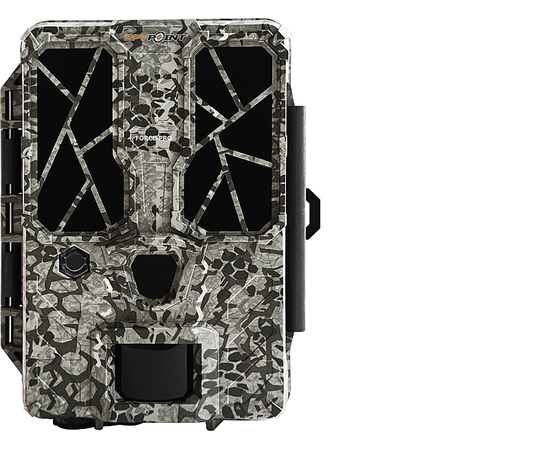

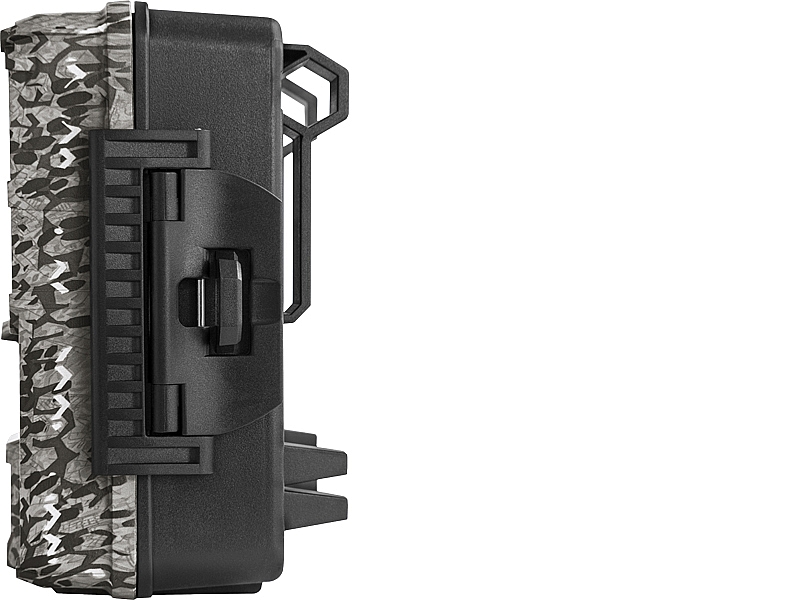

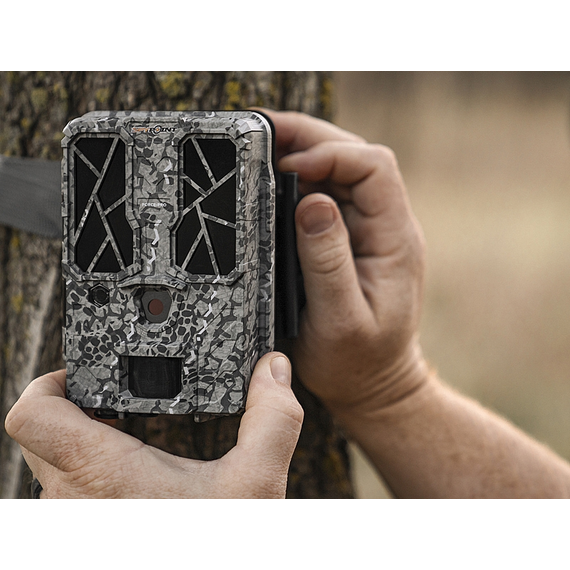

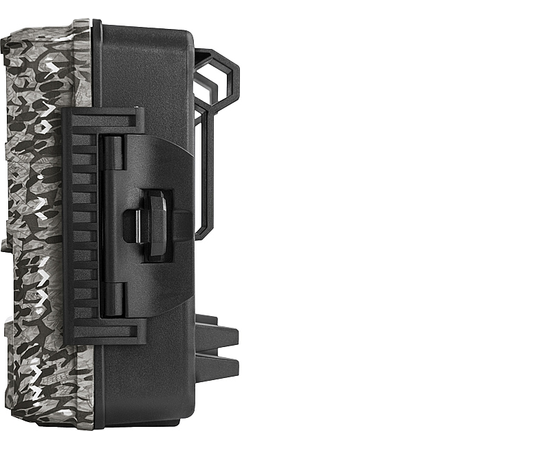

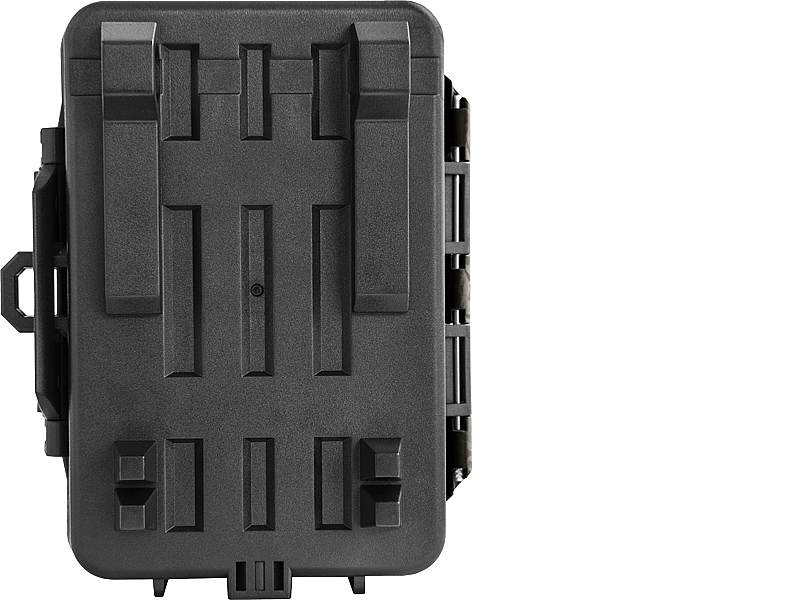

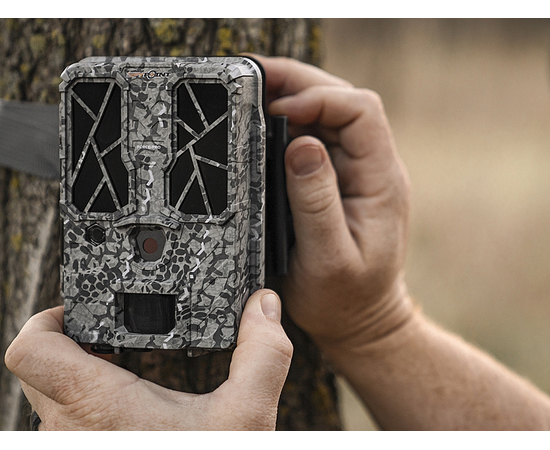

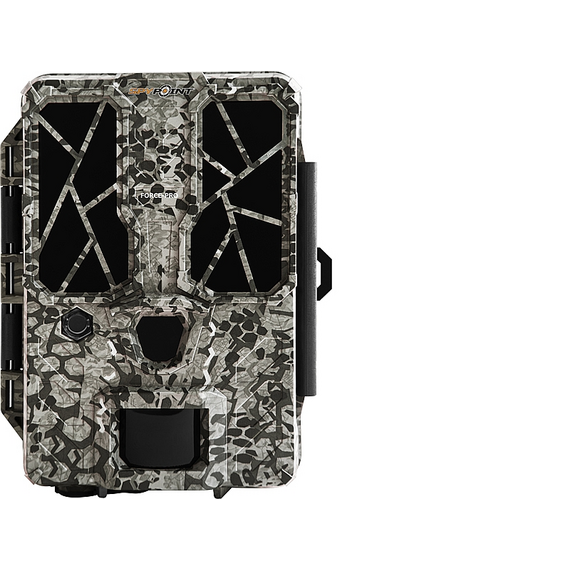

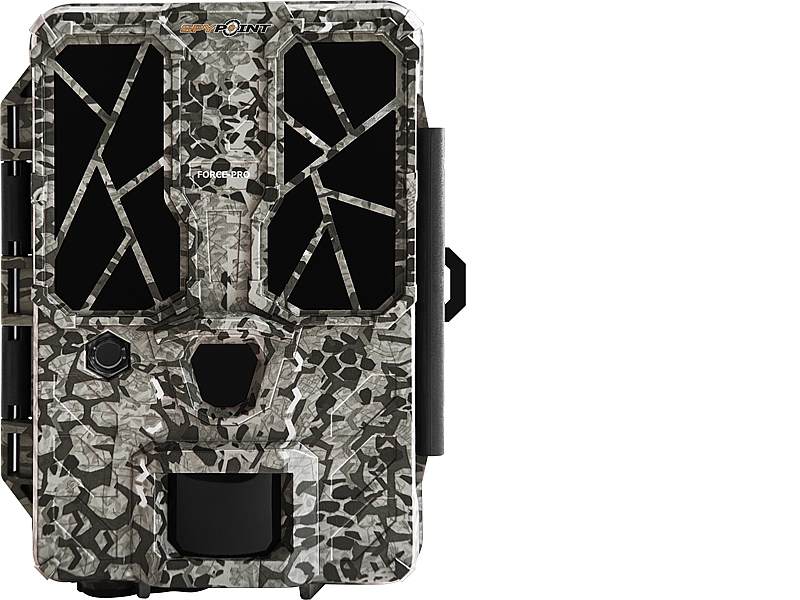

The FORCE-PRO Trail Camera brings a new level of quality to the SPYPOINT range.This unit is fitted with a high-powered 30MP camera for HD photography as well as video capture at 4K resolution (3840x2160px) with audio, which alongside the FORCE-PRO ' s sub-second trigger speed, long-distance detection and high-powered LED's means users will be able to get the best SPYPOINT experience to-date.
Supports SD cards up to 128GB (16GB card included).
- High-resolution photographs
- 4K resolution video (Audio capable)
- Long-distance performance
- Colour photos by day & black & white by night
- Fast trigger speed
- Multiple modes
- Photo stamp options
- Can be powered by standard AA batteries or an external 12V power source (not incl.)
- Tripod mountable
Specifications:
- Definition: 30MP
- LED's: 54
- Detection Range: 33.5m (110ft)
- Flash Range: 27.4m (90ft) '
- Trigger Speed: 0.2s
- Date, time, moon phase, and temperature stamp
- Times lapse mode
- Multi-Shot mode (up to 6 photos per detection)
Video Recording
- Resolution: 4K (3840x2160px)(10 - 60 secs)
- File Format: AVI
Audio
- Sound Recording: Yes
Memory/Power
- Memory Card: Includes a 16GB SD Card (Supports up to 128GB)
- Power: 8xAA batteries (not incl.)

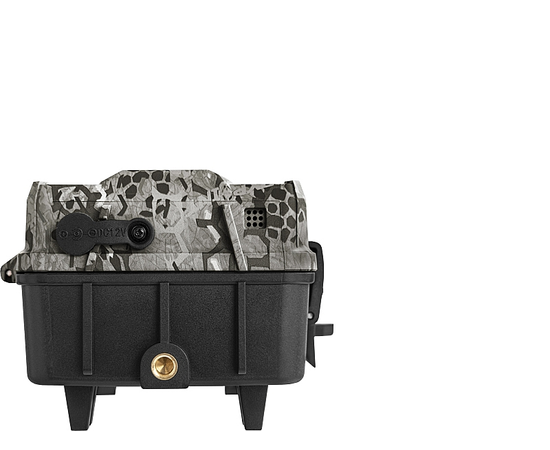

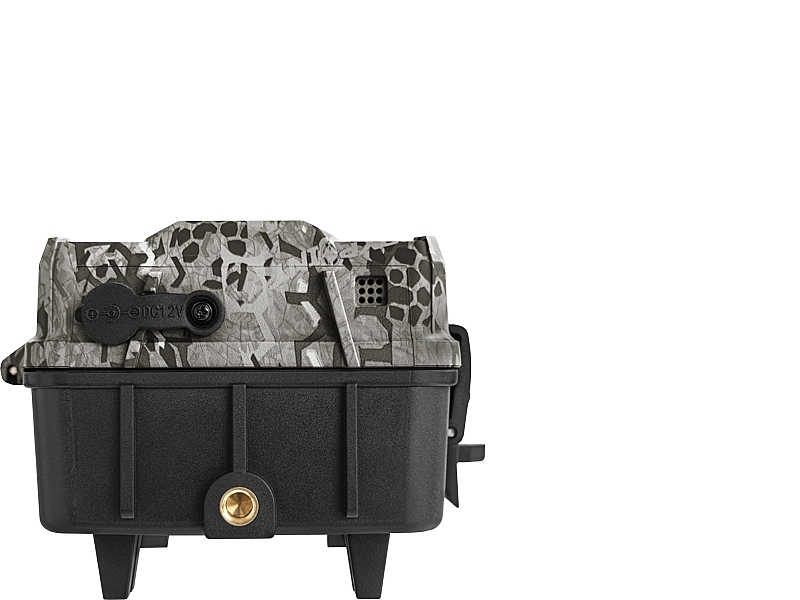

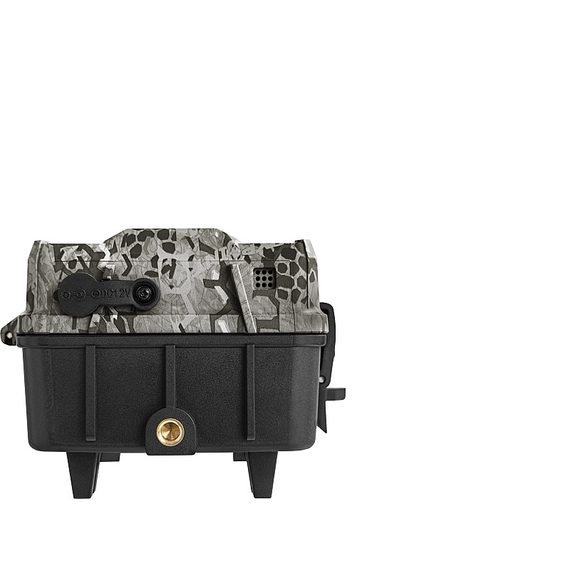

- 12V jack
Other

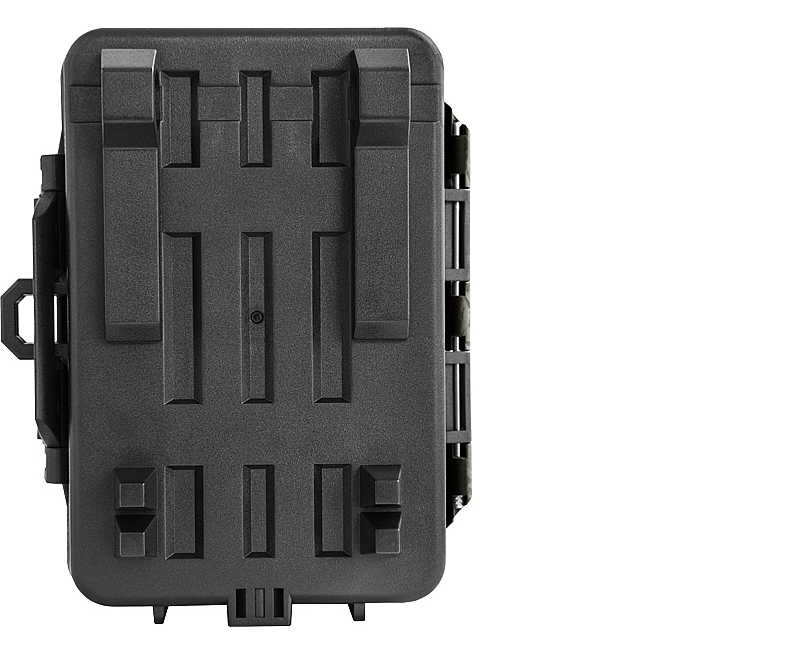

- Tripod Mount: ¼"-20
