Uniview 12MP 360° Fisheye Panoramic IP Camera with Two-Way Audio & AI Heatmap Analytics (UV-IPC86CEB-AF18KC-I0-W)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

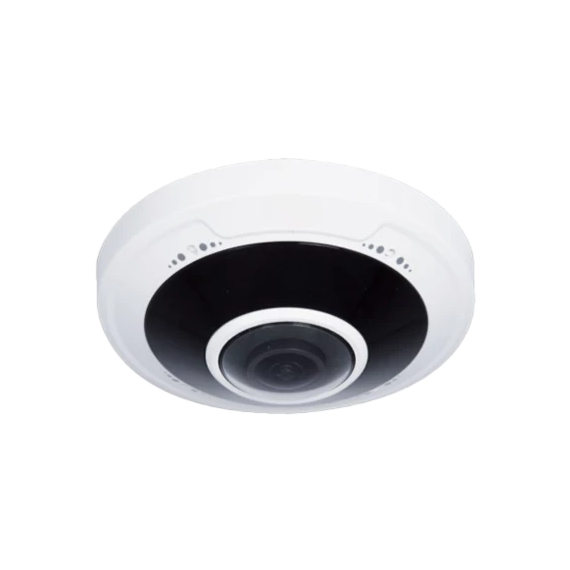

Uniview 12MP Fisheye White UV-IPC86CEB-AF18KC-I0-W
The UV-IPC86CEB-AF18KC-I0-W is a high-end 12MP fisheye network camera designed for complete area surveillance with a single device. It uses a 1/1.7” CMOS sensor and delivers ultra-HD 4000 × 3000 resolution, providing a true 360° panoramic view with no blind spots. Its 1.8mm ultra-wide fisheye lens captures an entire environment in one frame and supports multiple dewarping display modes, including 360° panoramic view, split views, and virtual PTZ perspectives for flexible monitoring. The camera features built-in infrared illumination with up to 15 meters night vision range, ensuring visibility in low-light or complete darkness. It also includes a built-in microphone and speaker, enabling two-way audio communication for interactive monitoring. Advanced intelligent functions such as heatmap analysis, motion detection, and multi-view decoding make it ideal for business intelligence and security applications. With IP67 weatherproof and IK10 vandal-resistant housing, it is suitable for retail stores, offices, warehouses, airports, and large indoor public areas.
Key Features
- 12MP ultra-HD resolution (4000 × 3000)
- 360° fisheye panoramic coverage (no blind spots)
- 1.8mm ultra-wide fixed fisheye lens
- Multiple dewarping modes (360°, split, virtual PTZ views)
- IR night vision up to 15 meters
- Built-in microphone and speaker (two-way audio)
- Heatmap analytics for crowd and movement tracking
- Smart motion detection and ROI/OSD support
- Supports microSD card up to 512GB
- Ultra 265 / H.265 / H.264 compression
- IP67 waterproof and IK10 vandal-resistant design
- PoE support for easy installation
- ONVIF compatible for NVR integration
Ideal For
Retail stores, parking lots, warehouses, office buildings, and residential areas—anywhere you need continuous color imaging and dependable security.
