Uniview 32-Channel AI Hybrid XVR Recorder with Dual HDD Support, 4K HDMI Output, H.265 Compression & Smart Motion Detection (UV-XVR302-32Q3)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

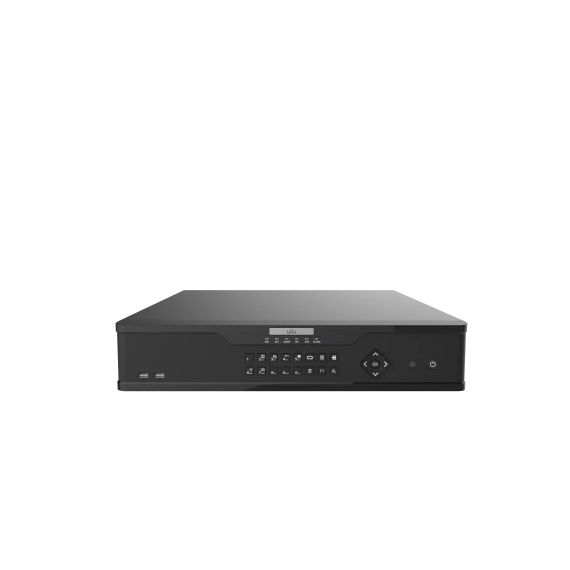

Uniview 32-Channel AI Hybrid XVR Recorder with Dual HDD Support, 4K HDMI Output, H.265 Compression & Smart Motion Detection – UV-XVR302-32Q3
The UV-XVR302-32Q3 is a professional-grade 32-channel hybrid video recorder designed for large-scale surveillance systems. It supports up to 32 analogue cameras with additional IP camera integration, allowing a total of up to 36 channels depending on configuration. With H.265 compression technology, it ensures efficient storage usage while maintaining high-quality video recording. The system provides 4K HDMI output for ultra-clear monitoring and supports dual SATA HDDs for extended storage capacity. Advanced AI functions such as Ultra Motion Detection (UMD), intrusion detection, and smart event search improve accuracy and reduce false alarms, making it ideal for industrial sites, commercial complexes, warehouses, and city-scale surveillance projects.
Key Features
- 32-channel hybrid XVR recorder (analogue + IP support)
- Supports TVI / AHD / CVI / CVBS / IP cameras
- H.265 / H.264 video compression
- Supports up to 8MP Lite recording (camera dependent)
- Up to 36 IP camera channels (configuration dependent)
- 4K HDMI output + VGA simultaneous display
- Dual SATA HDD support (up to 16TB each HDD)
- AI motion detection (Ultra Motion Detection – UMD)
- Intelligent event search and playback
- Motion detection and smart alerts
- Audio over coax support (TVI/CVI cameras only)
- ONVIF & RTSP compatibility
- Gigabit Ethernet support (stable streaming)
- 4 alarm inputs / 1 alarm output
- USB 3.0 + USB 2.0 ports for backup/export
- Ideal for enterprise and large surveillance systems
Ideal Applications
Perfect for industrial zones, parking lots, retail stores, warehouses, and public areas, the IPC2B15SS-ADF28(40)KMC-I1 combines intelligent detection, full-color clarity, and active deterrence for complete, always-on protection.
