Uniview 32-Channel Enterprise AI NVR with 8 HDD Bays, 32MP Recording, RAID Storage & Advanced IQ Analytics (UV-NVR508-32E-IQ)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Uniview 32-Channel Enterprise AI NVR with 8 HDD Bays, 32MP Recording, RAID Storage & Advanced IQ Analytics (UV-NVR508-32E-IQ)

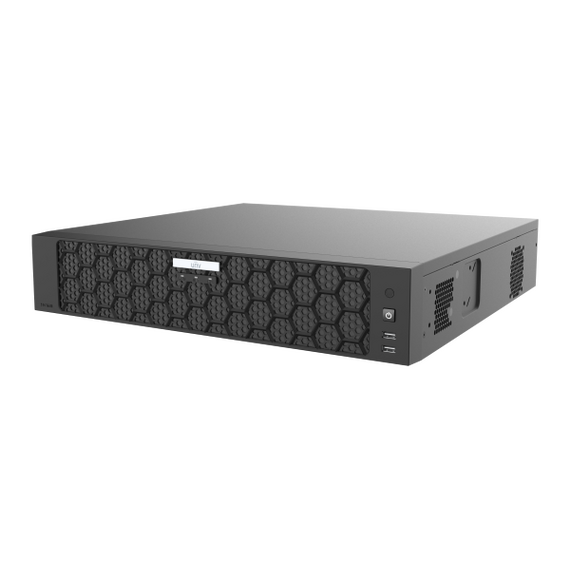

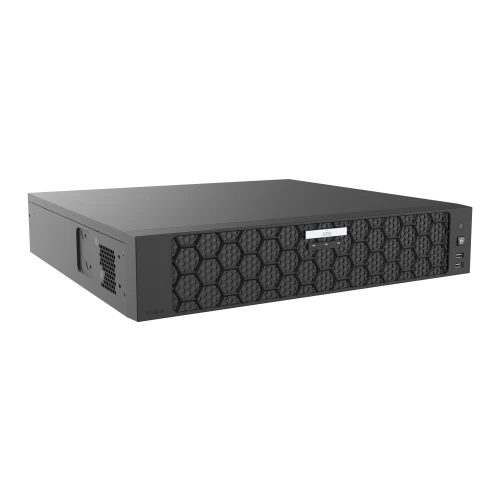

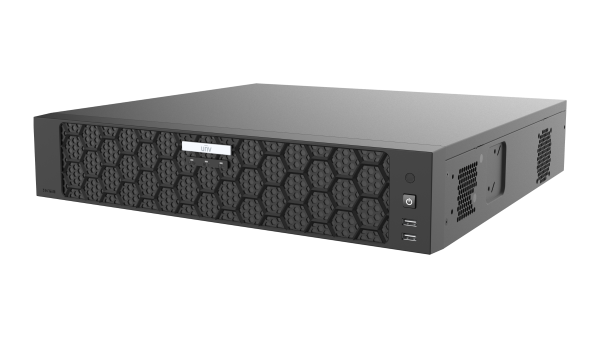

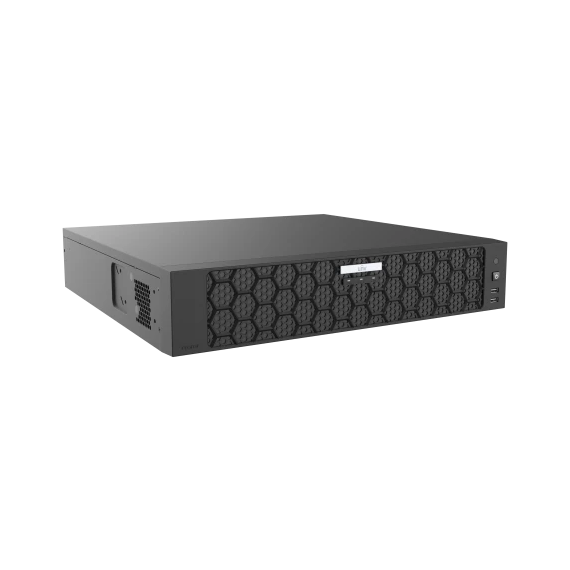

The UV-NVR508-32E-IQ is a powerful enterprise-class AI Network Video Recorder built for large-scale professional surveillance systems. Supporting up to 32 IP cameras with recording resolutions up to 32MP, this NVR delivers advanced intelligent monitoring powered by Uniview’s IQ AI engine. It supports Ultra 265/H.265/H.264 compression, advanced analytics such as Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD), face recognition, AcuSearch, AcuTrack, vehicle analysis, and people counting. With 8 SATA HDD bays and RAID 0/1/5/6/10 support, it provides massive secure storage capacity for long-term recording. Dual HDMI and dual VGA outputs enable multi-monitor independent display configurations, making it ideal for enterprise security centers, smart cities, factories, campuses, malls, and critical infrastructure deployments.
Key Features
- 32-channel IP camera support
- Supports up to 32MP recording resolution
- Ultra 265 / H.265 / H.264 compression
- Advanced IQ AI analytics engine
- Smart Intrusion Prevention (SIP)
- Ultra Motion Detection (UMD)
- AcuSearch & AcuTrack intelligent search
- Face recognition & vehicle analysis
- People counting & heat map analytics
- 8 × SATA HDD bays for large storage capacity
- RAID 0 / 1 / 5 / 6 / 10 support
- Dual HDMI + dual VGA independent outputs
- 384Mbps incoming bandwidth
- N+1 hot spare support for redundancy
- ANR technology for recording backup during network failure
- Dual Gigabit Ethernet ports
- Cloud upgrade support
- Rackmount 2U enterprise design for 24/7 operation
