Uniview 4-Channel AI NVR with 4 Built-in PoE Ports, 4K Output, H.265 Compression & IQ Smart Analytics (UV-NVR501-04B-P4-IQ)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

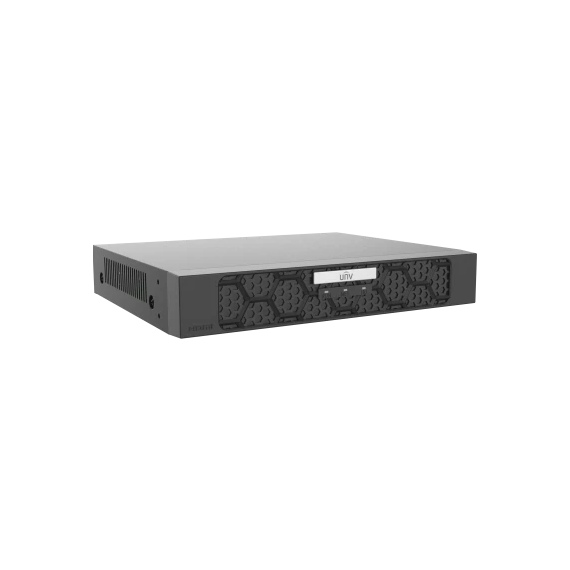

Uniview 4-Channel AI NVR with 4 Built-in PoE Ports, 4K Output, H.265 Compression & IQ Smart Analytics (UV-NVR501-04B-P4-IQ)
The UV-NVR501-04B-P4-IQ is a next-generation 4-channel PoE Network Video Recorder designed for intelligent surveillance systems. It features 4 built-in PoE ports, allowing direct plug-and-play connection of IP cameras without an external switch. Powered by Uniview’s IQ series AI engine, it supports advanced analytics such as Ultra Motion Detection (UMD), AcuSearch, and Smart Intrusion Prevention, enabling more accurate event detection and faster video search. With H.265 compression, it reduces storage usage while maintaining high-definition recording quality. The system supports up to 4K HDMI output and remote access via mobile and CMS platforms, making it ideal for smart homes, retail shops, and small business security systems.
Key Features
- 4-channel IP camera NVR
- 4 × built-in PoE ports (plug-and-play setup)
- H.265 / Ultra 265 compression support
- 4K HDMI output + VGA display
- AI-powered IQ series analytics (UMD, AcuSearch, SIP)
- Smart motion detection with reduced false alarms
- Remote live view via UNV-Link app
- 1 SATA interface (supports up to 24TB HDD)
- ONVIF & RTSP compatibility
- Supports up to 16MP camera input
- Smart playback and event search
- Compact 1U design for easy installation
- Stable 24/7 recording performance
