Uniview 4-Channel Hybrid XVR Recorder with H.265 Compression, Smart Motion Detection & Multi-Format Camera Support (UV-XVR301-04U3)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

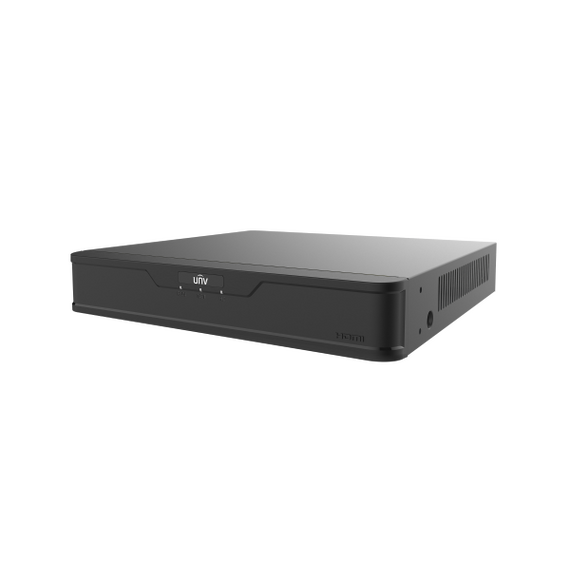

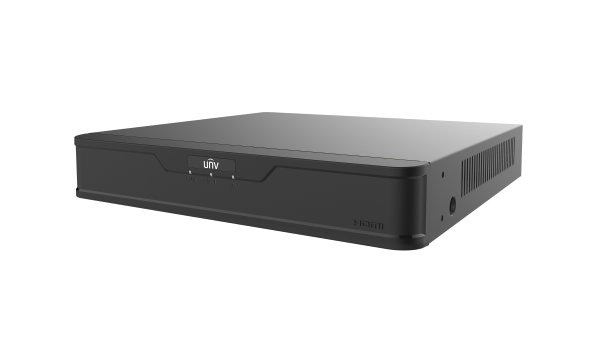

Uniview 4-Channel Hybrid XVR Recorder with H.265 Compression, Smart Motion Detection & Multi-Format Camera Support – UV-XVR301-04U3
The UV-XVR301-04U3 is a compact 4-channel hybrid video recorder designed for small surveillance systems such as homes, shops, and offices. It supports multiple camera formats including TVI, AHD, CVI, CVBS, and IP cameras, making it ideal for upgrading existing analogue CCTV setups or building new hybrid systems. With H.265 compression technology, it efficiently reduces storage usage while maintaining clear and stable video recording quality. The device supports real-time viewing, playback, and remote monitoring through mobile applications. Built-in motion detection and smart event search improve security monitoring efficiency and make it a reliable and cost-effective solution for basic CCTV installations.
Key Features
- 4-channel hybrid XVR recorder
- Supports TVI / AHD / CVI / CVBS / IP cameras
- H.265 / H.264 video compression
- Supports up to 5MP Lite / 1080P recording (camera dependent)
- Motion detection and smart event alerts
- Remote live view and playback via mobile app
- HDMI & VGA output up to Full HD
- 1 SATA interface (supports up to 6–8TB HDD)
- Audio support (camera dependent / RCA input-output)
- ONVIF & RTSP compatibility
- Easy plug-and-play installation
- Stable and low power consumption design
- Compact 1U DVR structure
- Ideal for home, small shop, and office security
Ideal Applications
Perfect for industrial zones, parking lots, retail stores, warehouses, and public areas, it's combines intelligent detection, full-colour clarity, and active deterrence for complete, always-on protection.
