Uniview 4MP ColorHunter Wise-ISP OwlView Fixed Dome Camera IK10
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

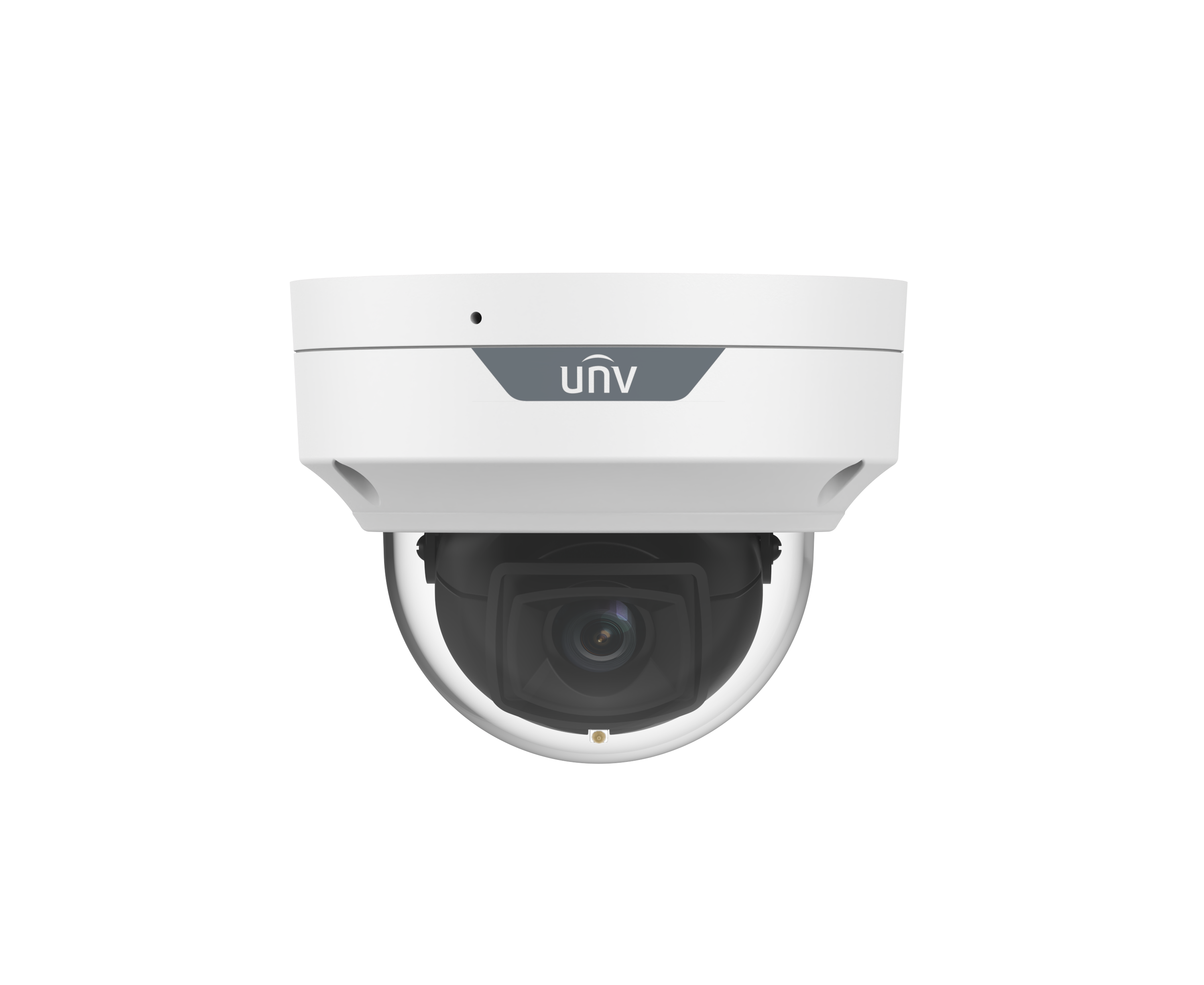

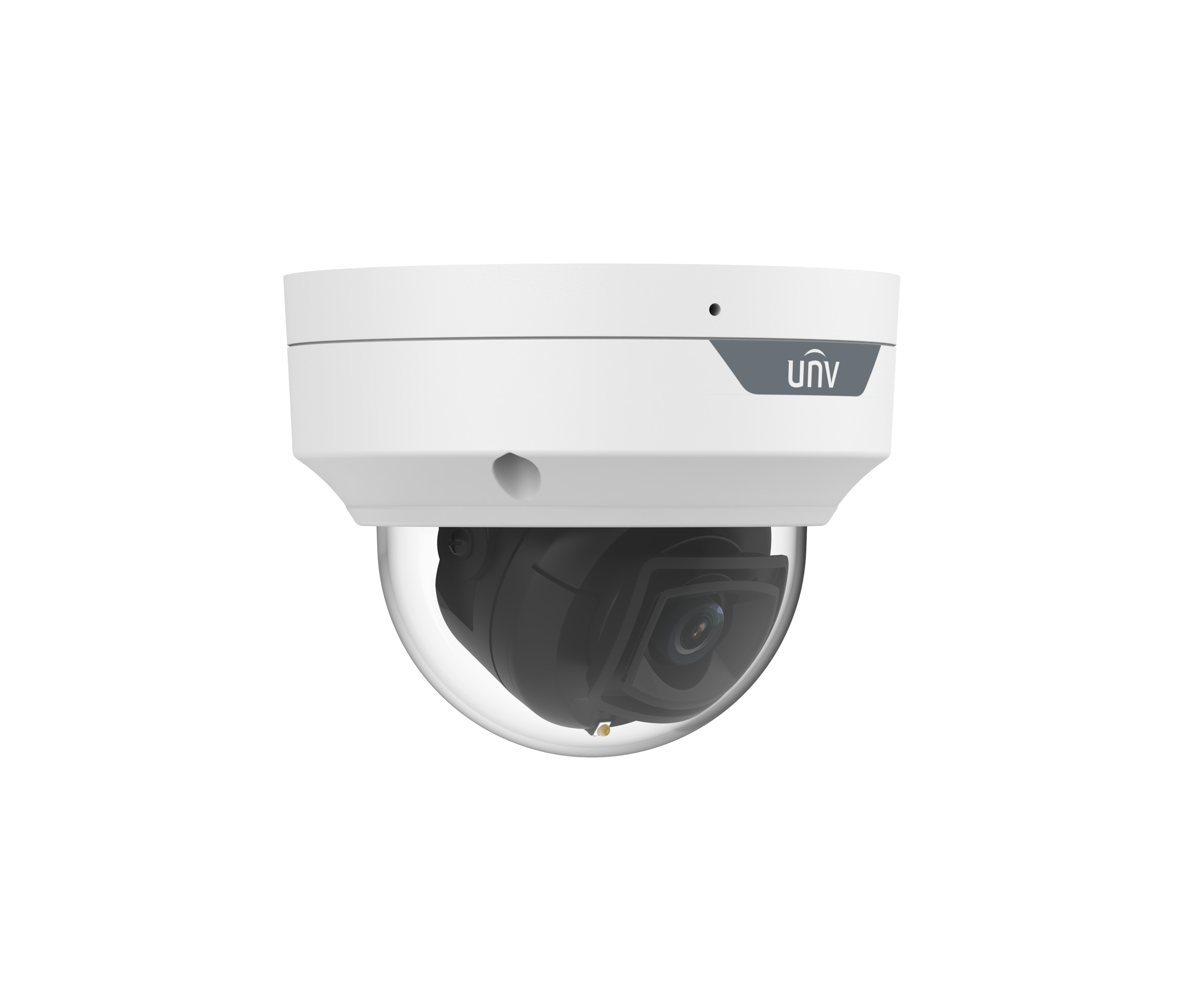

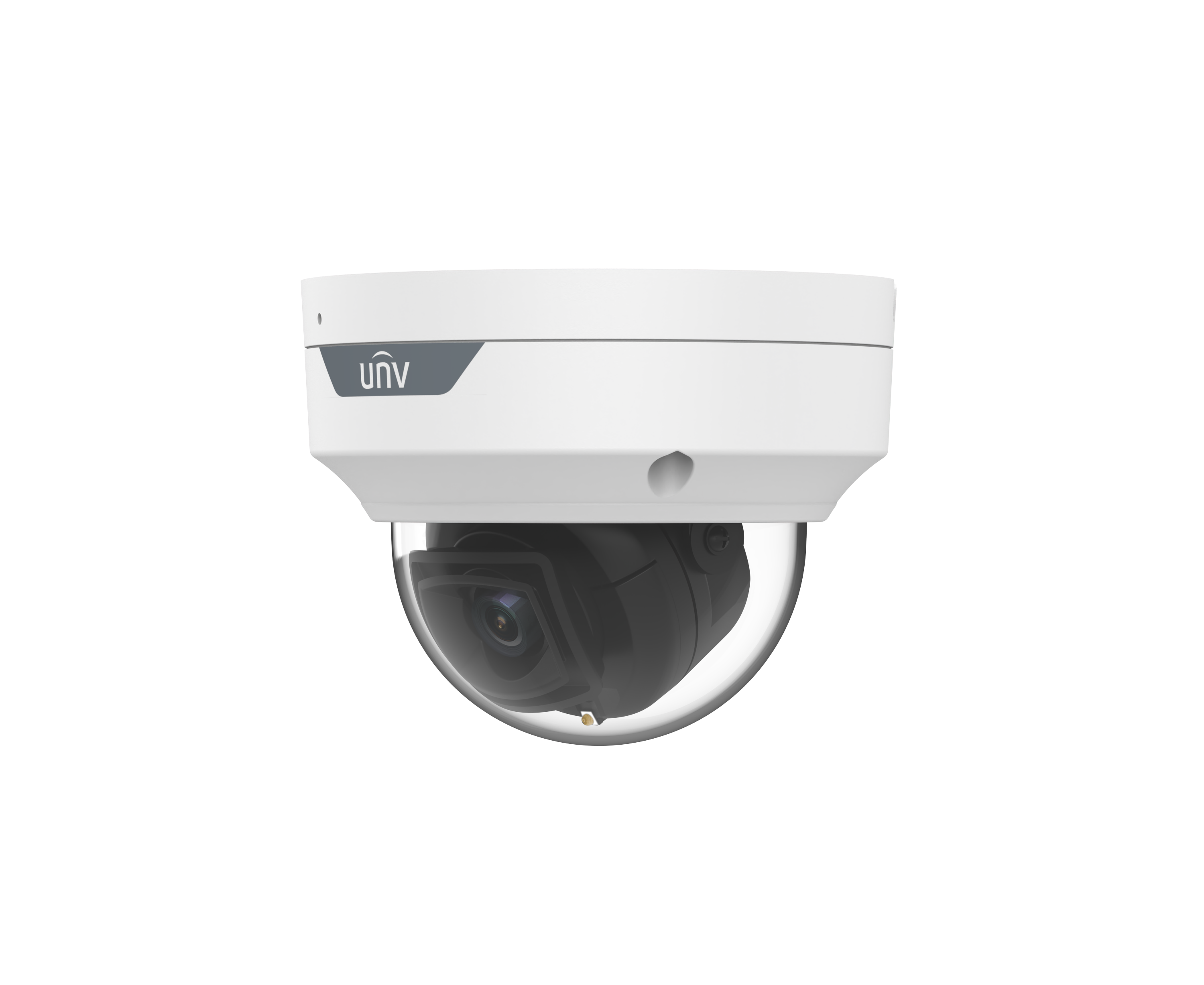

IPC3524LE-ADF28(40)K-WP – 4MP ColorHunter Wise-ISP Fixed Dome Network Camera
Engineered for uncompromising performance and intelligent surveillance, the IPC3524LE-ADF28(40)K-WP delivers exceptional image quality, advanced analytics, and 24/7 full-color monitoring in a compact, vandal-resistant dome design. Ideal for commercial, industrial, and critical infrastructure environments, this camera combines ColorHunter technology with Wise-ISP image optimization to ensure vibrant, detailed video in any lighting condition.
Key Features
-
Superior Image Quality:
Equipped with a 1/1.8" 4MP CMOS sensor and an F1.0 large aperture lens, the camera captures bright, detailed images with remarkable clarity—even in low-light conditions. -
Flexible Resolution Options:
Supports multiple video resolutions, including 4MP (2688 × 1520 @25/20 fps) and 1080P (1920 × 1080 @30/25 fps), allowing adaptability to various surveillance needs. -
Efficient Compression Technologies:
Compatible with Ultra 265, H.265, H.264, and MJPEG, optimizing storage and bandwidth without sacrificing image fidelity. -
ColorHunter with Wise-ISP:
The next-generation ColorHunter system, enhanced with Wise-ISP processing, delivers 24-hour full-color imaging—preserving detail and color accuracy even in near-total darkness. -
Intelligent Intrusion Prevention:
Advanced analytics with target classification dramatically reduce false alarms by distinguishing humans and vehicles from environmental motion such as leaves, shadows, or animals. -
Smart Perimeter Protection:
Supports intelligent functions such as cross-line detection and intrusion detection for proactive area monitoring. -
Exceptional Light Handling:
120 dB True WDR (Wide Dynamic Range) ensures balanced, clear images in challenging backlit or high-contrast lighting environments. -
Powerful Illumination:
Integrated white light illumination provides up to 30 meters (98.4 ft) of coverage for consistent nighttime visibility. -
Audio & Storage:
Built-in microphone enables real-time audio capture; onboard MicroSD slot supports up to 512 GB for local recording. -
Rugged & Reliable:
Built to withstand harsh conditions with IP67-rated weather resistance and IK10-rated vandal protection for maximum durability. -
Installation Flexibility:
Supports PoE power supply for simplified cabling and 3-axis adjustment for precise positioning; includes 9:16 corridor mode for vertical field-of-view optimization.
