Uniview 4MP DualLight IP PTZ with 2.8-12mm Zoom, AutoTracking, Two Way Talk & Active Deterrence
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

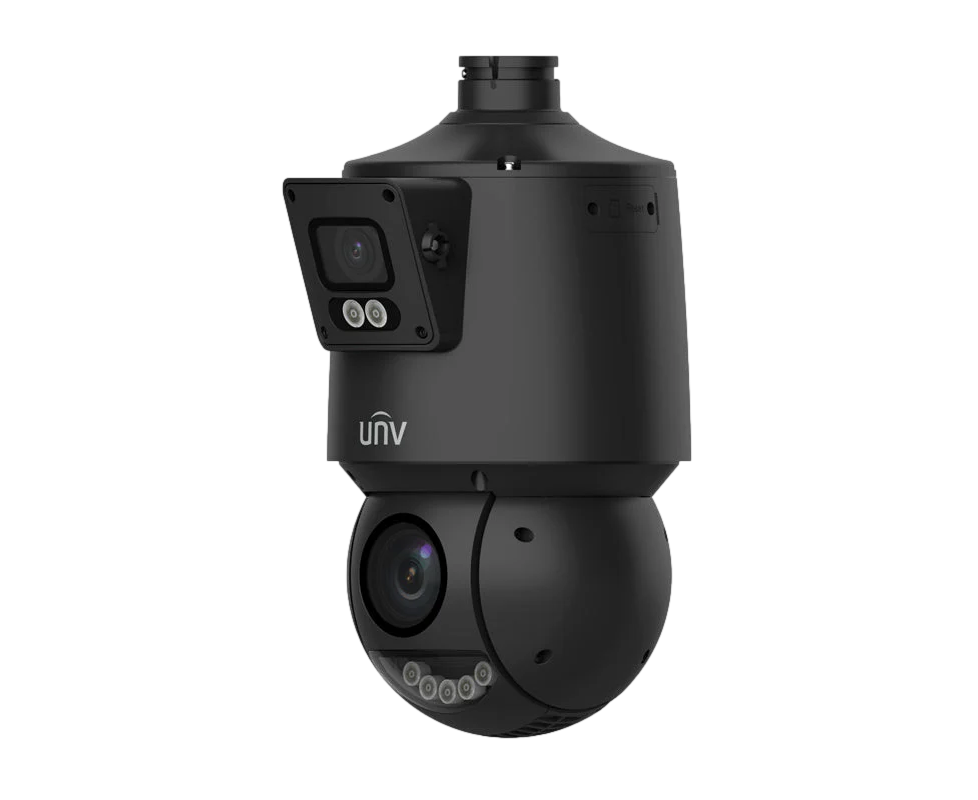

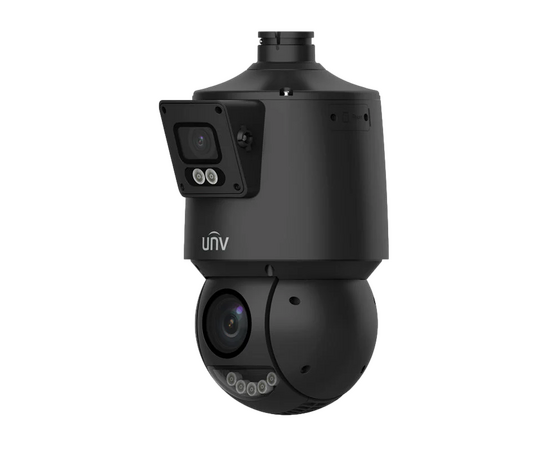

Uniview IPC94144SFW-X25-F40C 4MP + 4MP 25X ColorHunter MultiView Dual-Light Network PTZ Camera
The IPC94144SFW-X25-F40C combines a 4MP fixed camera with a 4MP PTZ camera featuring 25X optical zoom, delivering both wide-area coverage and detailed close-up monitoring from a single IP device. With advanced AI analytics, ColorHunter low-light performance, and dual-light illumination, this MultiView PTZ is engineered for intelligent, all-day, all-night surveillance.
Key Features
-
Dual-Channel MultiView Design: Integrated fixed and PTZ cameras provide simultaneous overview and detailed views using just one IP address.
-
25X Optical Zoom (PTZ): Capture distant objects with exceptional clarity and precision.
-
Advanced Video Compression: Ultra 265, H.265, H.264, and MJPEG for efficient bandwidth and storage usage.
-
Smart Intrusion Prevention: False alarm filtering with cross-line, intrusion, enter/leave area detection.
-
Face Detection & Snapshot Optimization: Automatically selects the best face snapshots; supports masked-area protection.
-
People Counting & Crowd Density Monitoring: Ideal for traffic analysis, public spaces, and operational insights.
-
Linked PTZ Tracking: PTZ camera can automatically track targets detected by the fixed camera's intrusion prevention rules.
-
Active Deterrence: Built-in sound and light warning system enhances visual and audible alerts.
-
LightHunter Technology: Ensures exceptional image quality in ultra-low-light environments.
-
Dual-Light Illumination: IR and warm light for flexible nighttime imaging, including full-color mode.
-
Flexible Power Options: Supports DC 12V and PoE+ (IEEE 802.3at) for easy installation.
-
I/O Interfaces: 2 × alarm input, 1 × alarm output; 1 × audio input, 1 × audio output.
