Uniview 5MP 360° Fisheye Panoramic IP Camera with Smart IR & Built-In Dual Mic (UV-IPC815SB-ADF14K-I0-W)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Uniview 5MP 360° Fisheye Panoramic IP Camera with Smart IR & Built-In Dual Mic (UV-IPC815SB-ADF14K-I0-W)

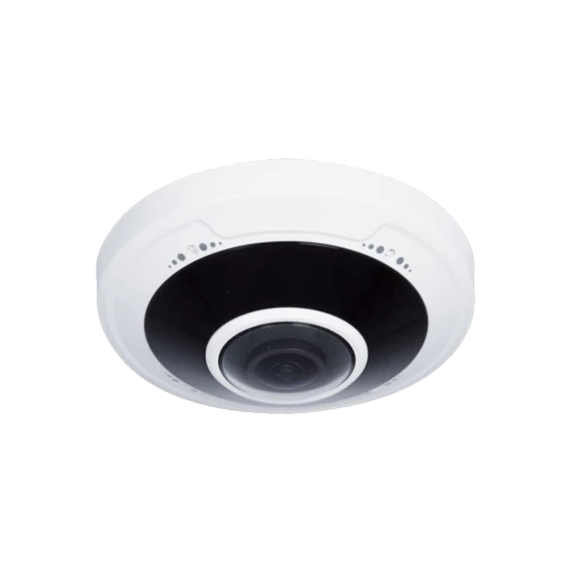

The UV-IPC815SB-ADF14K-I0-W is a professional 5MP fisheye network camera designed for full-area surveillance with a single camera. It uses a 1/2.8" CMOS sensor to deliver high-definition 2592 × 1944 resolution video, providing a complete 360° panoramic view with no blind spots.
Its 1.4mm ultra-wide fisheye lens captures an entire scene in one frame and supports multiple dewarping display modes, allowing flexible viewing such as 360° panorama, 180° split views, and PTZ-style virtual views depending on the monitoring system.
The camera features Smart IR night vision up to 10 meters, ensuring clear monitoring in low light or complete darkness. It also includes built-in dual microphones for enhanced audio pickup, making it suitable for indoor and outdoor environments where sound monitoring is important.
Key Features
- 5MP ultra HD resolution (2592 × 1944)
- 360° fisheye panoramic coverage (no blind spots)
- 1.4mm ultra-wide fixed fisheye lens
- Multiple dewarping display modes (360°, 180°, virtual PTZ views)
- Smart IR night vision up to 10m
- Built-in dual microphones for audio capture
- Supports H.265 / H.264 compression
- Up to 120 dB WDR for balanced lighting
- IP66 weatherproof and IK10 vandal-resistant design
- Supports microSD card up to 256GB
- PoE support for easy installation
-
ONVIF compatible for NVR integration
Ideal For
Retail stores, parking lots, warehouses, office buildings, and residential areas—anywhere you need continuous colour imaging and dependable security.
