Uniview TriGuard 2.0 5MP DualLight IP Turret with Two Way Talk & Active Deterrence
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

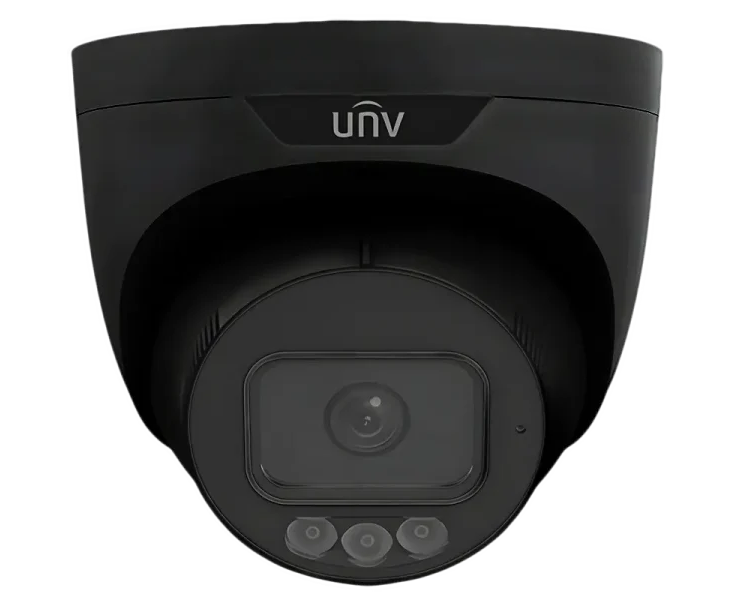

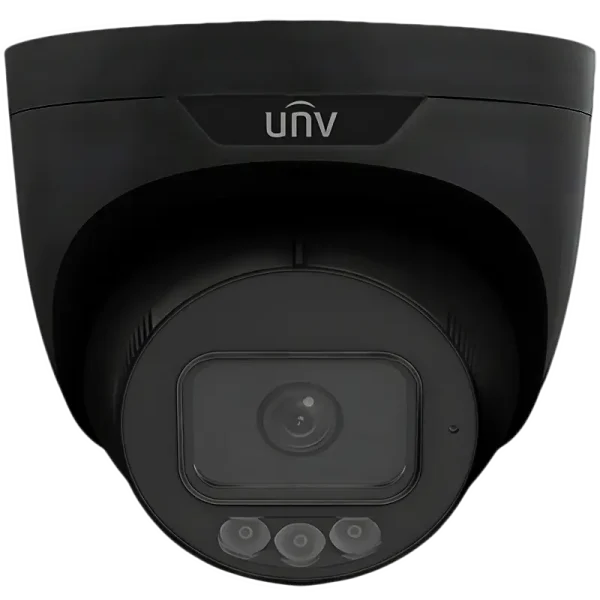

Uniview IPC3635SS-ADF28(40)KMC-I1 5MP Tri-Guard Fixed Dual-Light Turret Network Camera
The Uniview IPC3635SS-ADF28(40)KMC-I1 is a powerful 5MP Tri-Guard turret network camera designed to deliver exceptional image quality and intelligent security performance for professional surveillance applications. Built with Uniview’s latest AI and imaging technologies, this camera combines crystal-clear 5MP resolution, dual-light illumination, and advanced analytics to ensure accurate monitoring day and night.
Key Features
-
Superior Image Quality: 5 MP (2880 × 1620) resolution using a 1/2.7" CMOS sensor for crisp, detailed images in any lighting condition.
-
Flexible Video Options: Supports multiple resolutions and frame rates up to 30 fps at full 5MP.
-
Efficient Compression: Ultra 265, H.265, H.264, and MJPEG encoding minimize bandwidth and storage requirements.
-
AI-Powered Perimeter Protection: Advanced detection of humans, vehicles, and non-motor vehicles with intelligent target classification — reducing false alarms from movement like leaves, light changes, or small animals.
-
People Flow & Crowd Monitoring: Smart analytics for people counting and crowd density to enhance situational awareness in busy environments.
-
Smart Intrusion Prevention with Color Retrieval: Identify and track targets using intelligent color search features.
-
Auto Scene Match (ASM): Automatically optimizes image parameters for different scenes.
-
130 dB True WDR: Maintains clarity and detail in scenes with challenging lighting contrasts.
-
Dual Warning Lights: Built-in red and blue lights provide visual deterrence and event signaling.
-
Two-Way Audio: Integrated microphone and speaker with 1/1 audio I/O for real-time communication.
-
Smart IR up to 30 m (98.4 ft): Delivers clear night vision with adjustable IR illumination.
-
Flexible Installation: Supports 9:16 corridor mode for optimized vertical field of view in narrow spaces.
-
Local Storage: Built-in MicroSD slot supports up to 512 GB.
-
Reliable and Durable: IP67-rated weatherproof housing ensures dependable performance in harsh outdoor environments.
