Uniview 5MP TriGuard 2.0 Dual Light IP Bullet with Microphone
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

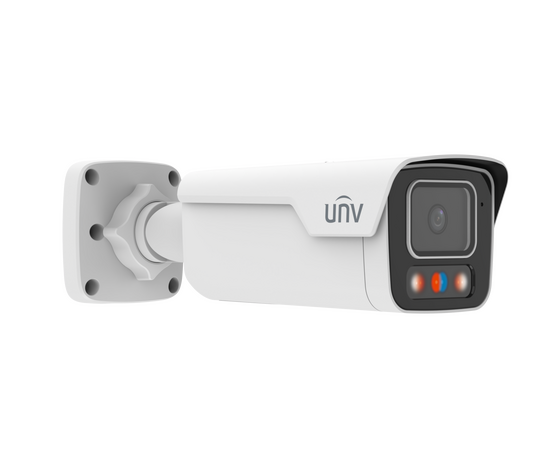

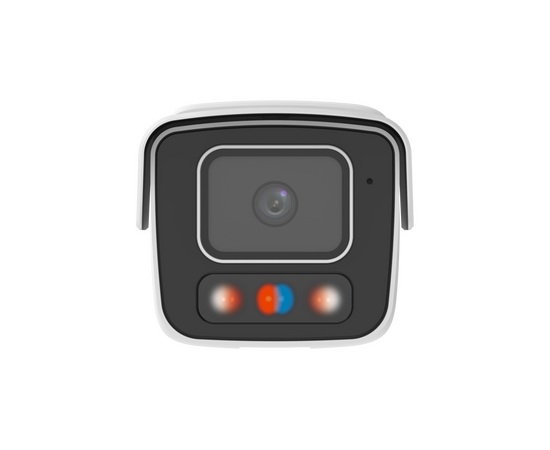

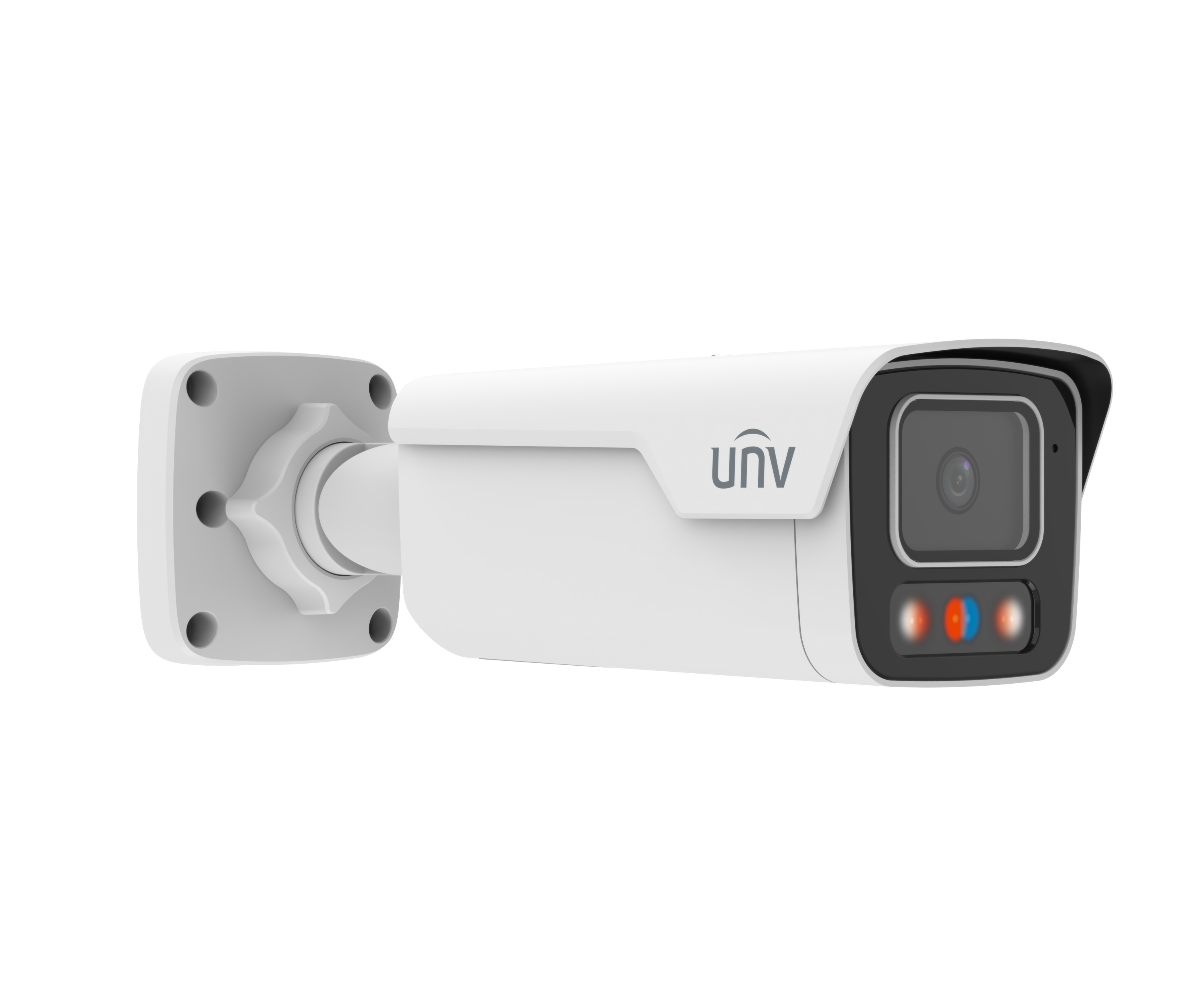

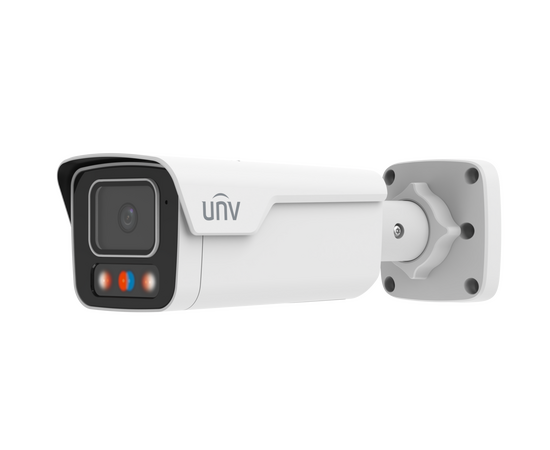

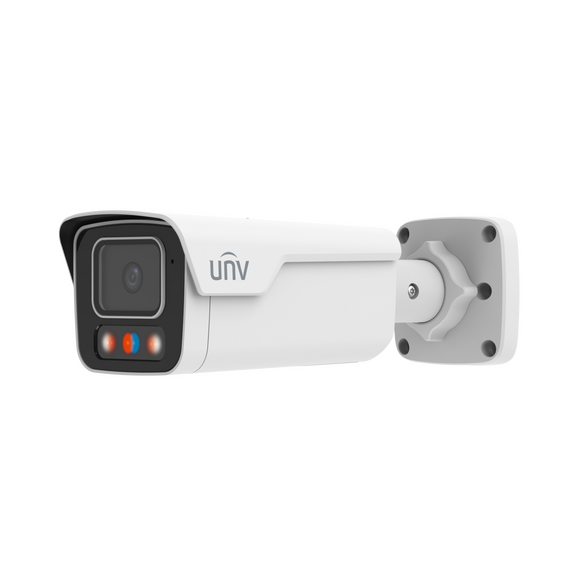

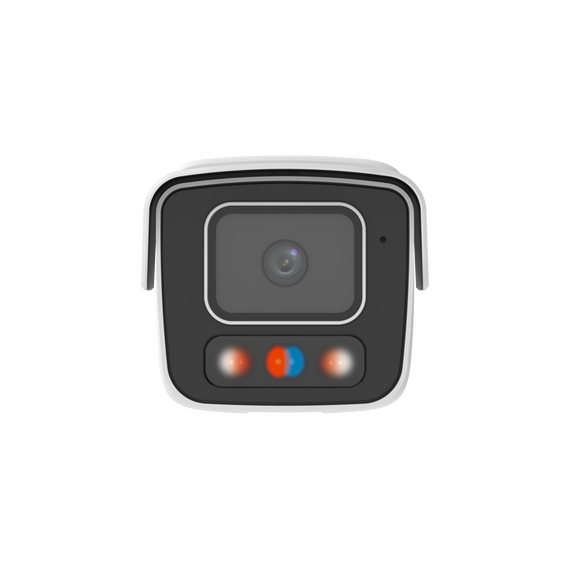

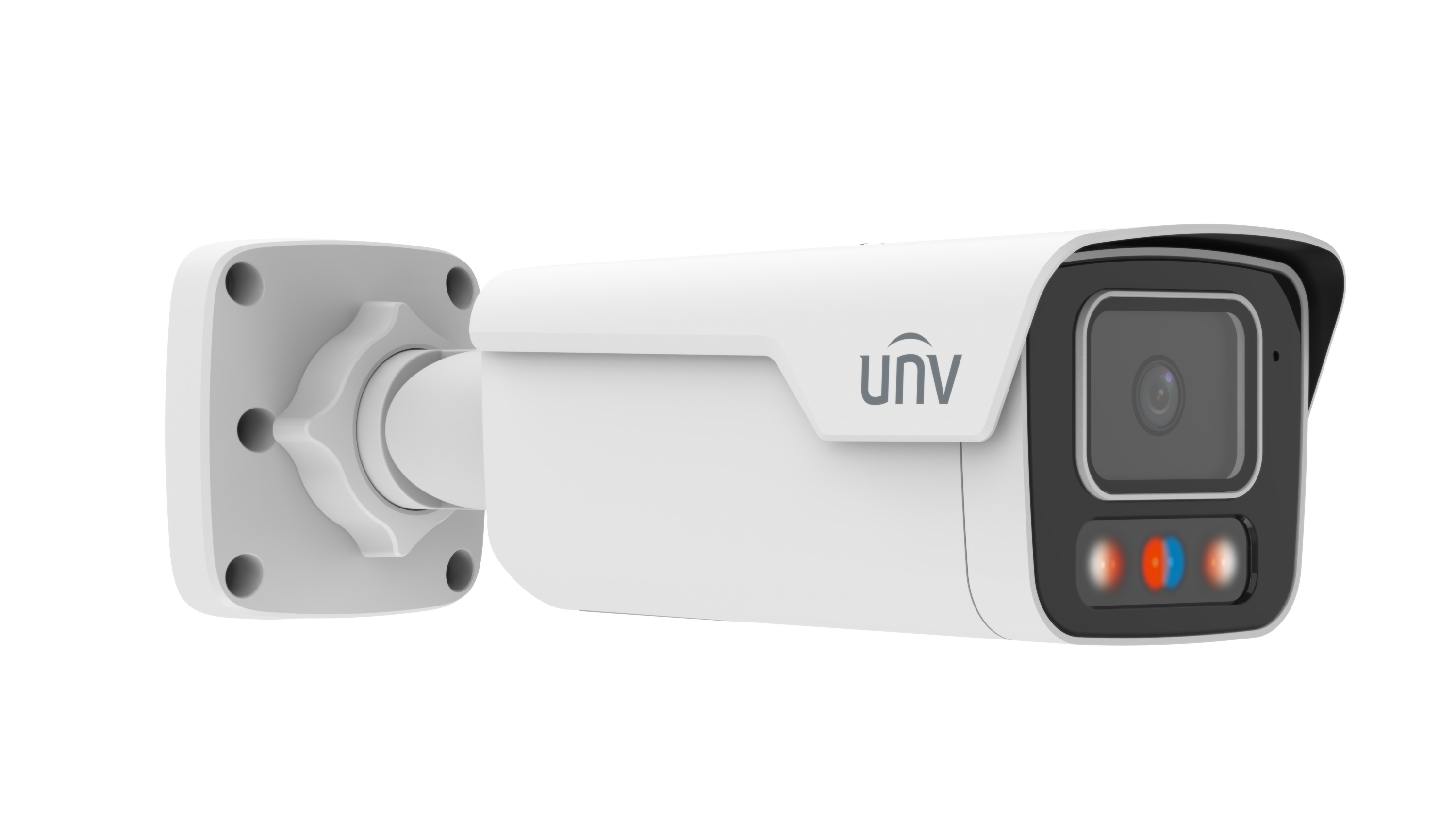

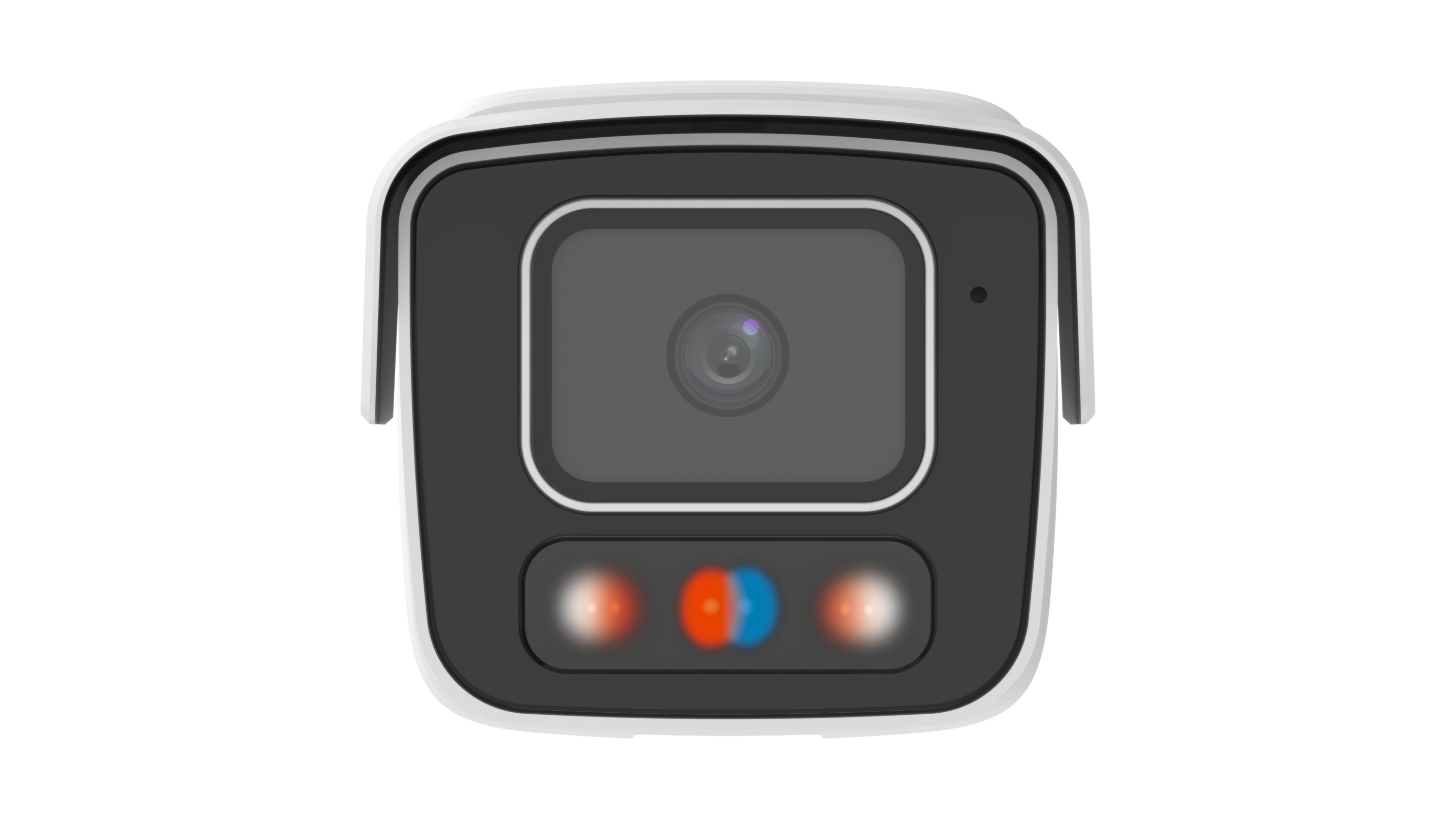

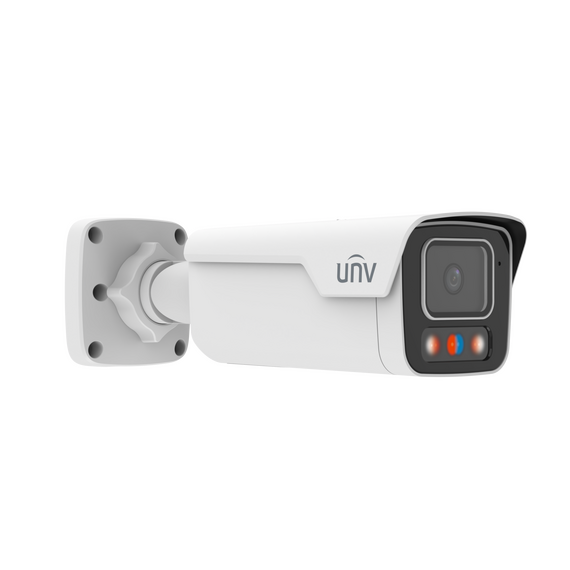

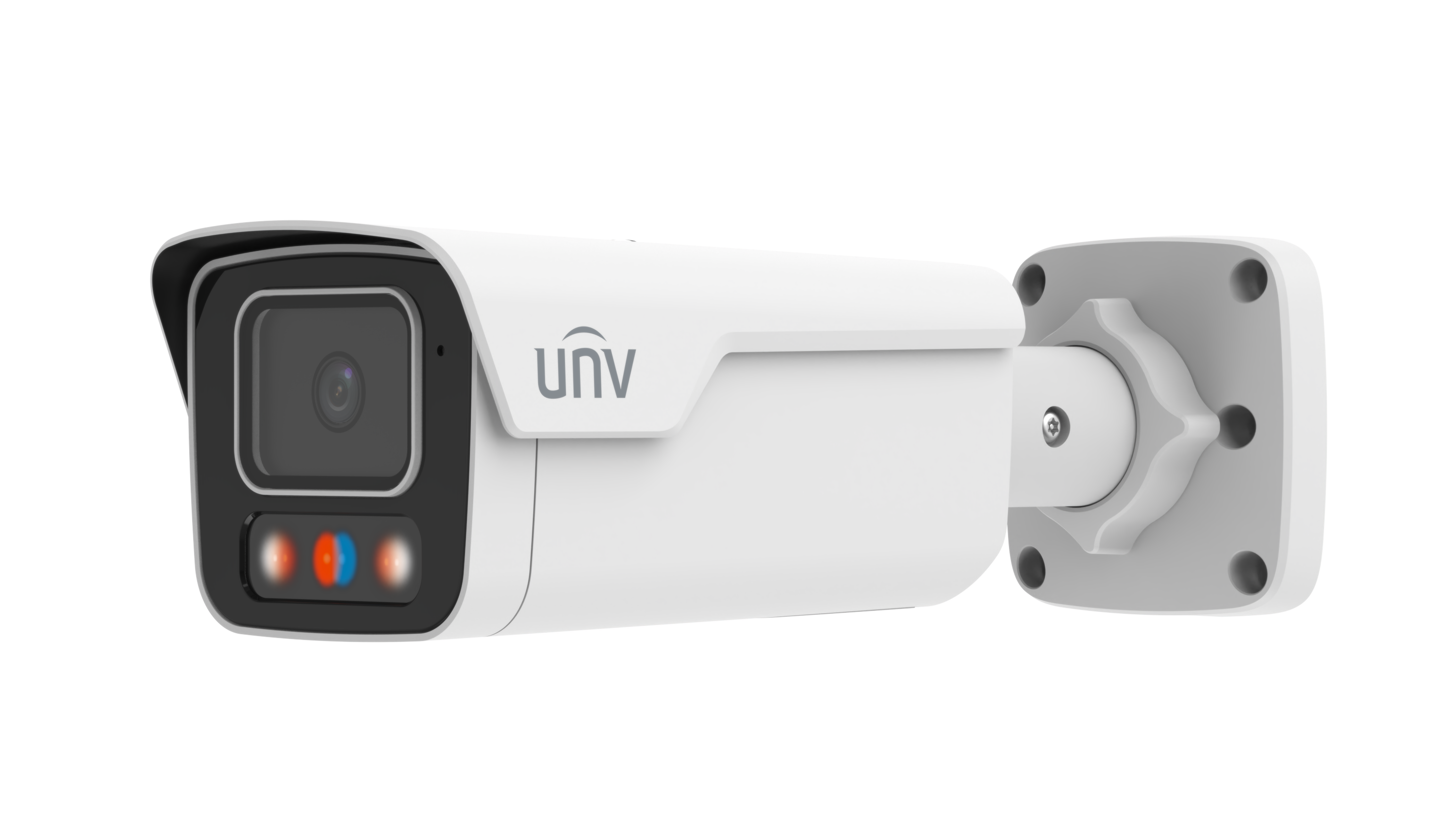

IPC2B15SS-ADF28(40)KMC-I1 – 5MP Tri-Guard Fixed Dual-light Bullet Network Camera
The IPC2B15SS-ADF28(40)KMC-I1 is an advanced Tri-Guard Fixed Dual-light Bullet Network Camera designed to deliver intelligent, full-color, and proactive security monitoring around the clock. Featuring 5MP ultra-clear imaging, active deterrence lights, and AI-powered analytics, this camera ensures reliable protection in commercial, industrial, and public surveillance applications.
Key Features
-
High-Definition 5MP Imaging:
Equipped with a 1/2.7" 5MP CMOS sensor, this camera captures crisp, detailed video at up to 2880 × 1620 @30 fps, ensuring smooth and sharp surveillance footage across multiple resolution options. -
Efficient Video Compression:
Supports Ultra 265, H.265, H.264, and MJPEG formats, optimizing bandwidth and storage usage while maintaining image clarity and detail. -
AI-Powered Smart Protection:
Advanced Intelligent Perimeter Protection features include cross-line detection, intrusion, enter area, and leave area detection.
The intelligent intrusion prevention system uses target classification to distinguish humans, vehicles, and non-motor vehicles—minimizing false alarms from irrelevant motion such as leaves or light changes. -
Enhanced Analytics:
Includes people flow counting, crowd density monitoring, and color-based retrieval for efficient incident analysis and area management. -
Auto Scene Match (ASM):
Automatically adjusts image settings to deliver optimal clarity in varying lighting and environmental conditions. -
Superior Light Handling:
130 dB True WDR (Wide Dynamic Range) ensures clear, balanced images in challenging lighting environments with high contrast or glare. -
Active Deterrence System:
Equipped with red and blue warning lights and a built-in speaker, enabling real-time audio-visual alerts to deter potential intruders before incidents occur. -
Dual-Light Illumination:
Features Smart IR for up to 40 meters (131.2 ft) of infrared coverage, delivering clear monochrome night images when color illumination isn’t needed. -
Audio & Alarm Integration:
Built-in microphone and speaker, plus Alarm I/O (1/1) and Audio I/O (1/1), support two-way communication and flexible integration with security systems. -
Edge Storage & Reliability:
Supports MicroSD cards up to 512 GB for reliable on-board recording.
IP67-rated protection ensures robust performance in outdoor environments, even under harsh weather conditions. -
Flexible Installation:
Supports 9:16 corridor mode for optimized vertical monitoring of hallways, entrances, and narrow areas.
Ideal Applications
Perfect for industrial zones, parking lots, retail stores, warehouses, and public areas, the IPC2B15SS-ADF28(40)KMC-I1 combines intelligent detection, full-color clarity, and active deterrence for complete, always-on protection.
