Uniview Complete Villa Video Intercom Kit with 2MP Door Station, 7” Indoor Monitor & Network Switch (UV-KIT/201S/372S/NSW2020)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

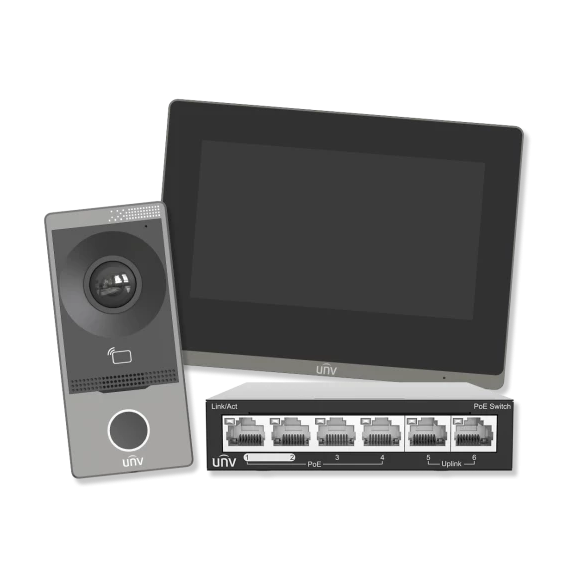

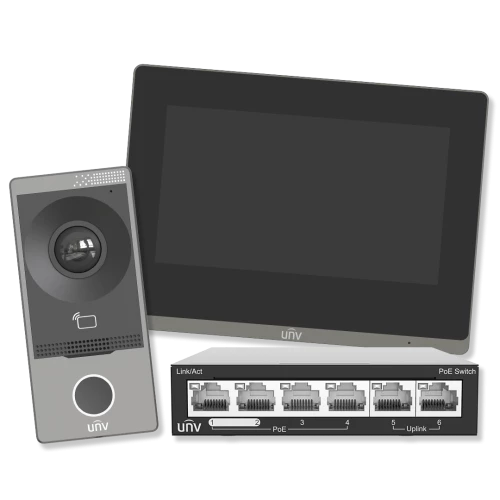

Uniview Complete Villa Video Intercom Kit with 2MP Door Station, 7” Indoor Monitor & Network Switch (PoE) – UV-KIT/201S/372S/NSW2020
The UV-KIT/201S/372S/NSW2020 is a complete professional-grade Uniview villa intercom solution designed for seamless communication, access control, and system networking. It includes the OEU-201S-HMK-W outdoor door station with a 2MP HD camera and IC card access, the OEI-372S-H-W 7-inch indoor touchscreen monitor, and the NSW2020 PoE network switch for stable power and data transmission. This integrated system enables real-time video calling, remote unlocking, and mobile app control through UNV-Link. With PoE support, installation becomes simpler and more reliable by combining power and data in a single cable. Ideal for villas, gated communities, and residential buildings requiring a complete smart entry solution.
Key Features
- Complete kit: Door station + indoor monitor + PoE switch
- 2MP HD outdoor camera with wide-angle view
- 7-inch indoor touchscreen display
- IC card access + mobile app unlocking
- Two-way audio communication (mic + speaker)
- PoE switch (NSW2020) for stable power & data transmission
- WiFi + LAN connectivity support
- IR night vision for low-light visibility
- Remote monitoring via UNV-Link mobile app
- Expandable system (supports multiple indoor units)
- Motion detection & tamper alarm support
- Metal weatherproof outdoor unit (IP65)
- Indoor station with snapshot & call log features
- Easy plug-and-play installation with PoE network
Ideal Applications
Perfect for industrial zones, parking lots, retail stores, warehouses, and public areas, the IPC2B15SS-ADF28(40)KMC-I1 combines intelligent detection, full-color clarity, and active deterrence for complete, always-on protection.
