Uniview UNV-Link Pro Portable Camera Testing & Installation Tool with PoE, WiFi Hotspot, Battery & Voltage Test (UV-GCB01-B7)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

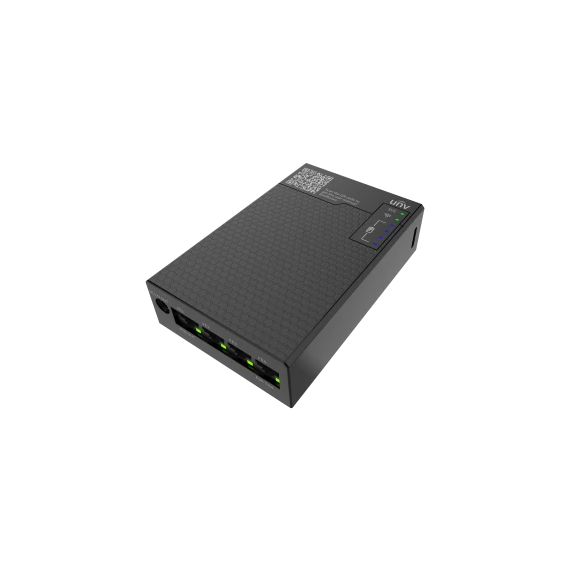

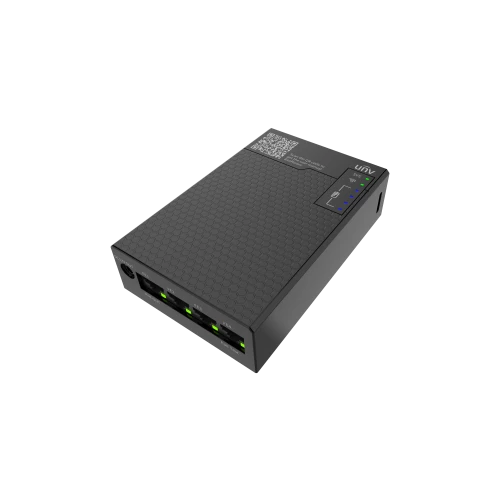

Uniview UNV-Link Pro Portable Camera Testing & Installation Tool with PoE, WiFi Hotspot, Battery & Voltage Test (UV-GCB01-B7)
The UV-GCB01-B7 is a professional multifunction installation and testing device designed for CCTV technicians and system integrators. It allows quick camera setup, testing, and troubleshooting without needing a fixed power source. With built-in PoE output, WiFi hotspot, and Ethernet ports, it enables direct connection to IP cameras for live viewing and configuration via the UNV-Link app. The device also includes voltage testing features to check power levels and ensure stable installation. Its built-in rechargeable battery makes it fully portable, making it an essential field tool for efficient CCTV deployment and maintenance.
Key Featured
- Portable IP camera installation & testing tool
- Built-in PoE output (IEEE 802.3af support)
- 4 × RJ45 Ethernet ports (10/100 Mbps)
- Built-in WiFi hotspot (2.4GHz) for direct camera access
- Voltage testing for DC and PoE devices
- 7500mAh rechargeable lithium battery
- Type-C charging support (DC 5V input)
- DC 12V & 5V power output ports
- Compatible with UNV-Link mobile app
- Live view & camera configuration support
- Field troubleshooting tool for installers
- Compact handheld design
- LED status indicators (battery, WiFi, system)
- Ideal for CCTV installation engineers
