Uniview 8MP ColorHunter Wise-ISP OwlView Warm Light Turret Network Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

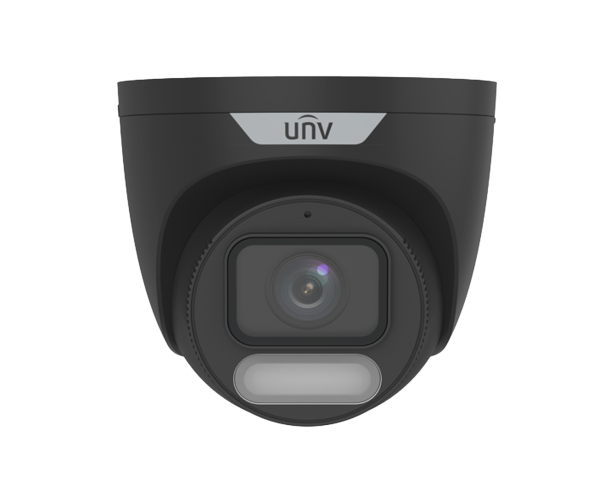

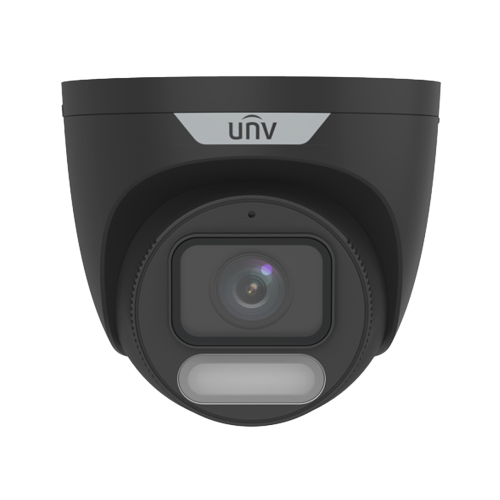

IPC3628LE-ADF28(40)K-WP – 8MP ColorHunter Wise-ISP Warm Light Turret Network Camera
The IPC3628LE-ADF28(40)K-WP delivers next-generation imaging performance with ultra-high 8MP resolution and intelligent color optimization for true-to-life detail around the clock. Built for professional security environments, this ColorHunter Wise-ISP Turret Network Camera combines precision engineering, powerful low-light capability, and rugged reliability—ensuring consistent, full-color surveillance day and night.
Key Features
-
Ultra-HD 8MP Imaging:
Powered by a high-performance 1/1.8" 8MP CMOS sensor and an F1.0 large aperture lens, this camera captures rich, detailed images with superior brightness and clarity—even in challenging lighting conditions. -
Flexible Video Resolutions:
Supports multiple frame rates and resolutions including 8MP (3840 × 2160 @20 fps), 5MP (3072 × 1728 @30/25 fps), and 1080P (1920 × 1080 @30/25 fps) to suit a variety of monitoring needs. -
Advanced Compression Efficiency:
Compatible with Ultra 265, H.265, H.264, and MJPEG for optimized storage utilization and reduced bandwidth consumption without sacrificing image quality. -
ColorHunter with Wise-ISP Technology:
Enhanced ColorHunter technology combined with Wise-ISP image processing ensures stunning 24-hour full-color images, intelligently balancing exposure, color saturation, and noise in extremely low-light environments. -
Superior Light Management:
Equipped with 120 dB True WDR (Wide Dynamic Range) for crisp, balanced video in scenes with strong light contrast or glare. -
Warm Light Illumination:
Integrated white light provides up to 30 meters (98.4 ft) of warm illumination, maintaining full-color visibility and acting as an effective deterrent at night. -
Audio & Storage:
Features a built-in microphone for high-quality audio capture and supports MicroSD storage up to 512 GB for local recording flexibility. -
Durable & Weather-Resistant:
Constructed with IP67-rated protection, this camera withstands harsh outdoor conditions, ensuring long-term reliable operation. -
Simplified Installation:
Supports PoE power supply for easy setup, 3-axis adjustment for precise positioning, and 9:16 corridor mode for optimized monitoring of narrow areas.
