Uniview IPC3638SE-ADZKMC-WP-I1 Varifocal TriGuard Dual Light IP Turret with Alarm & Audio
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

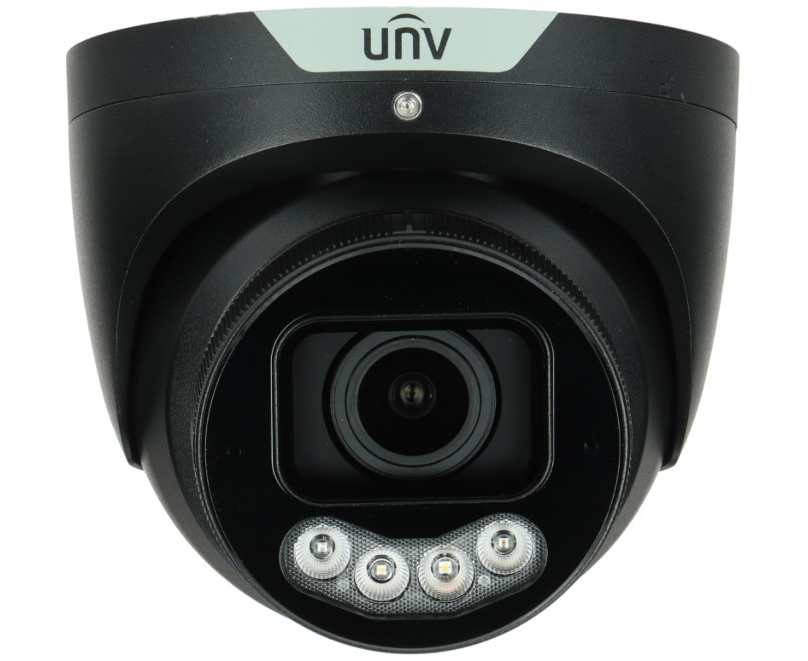

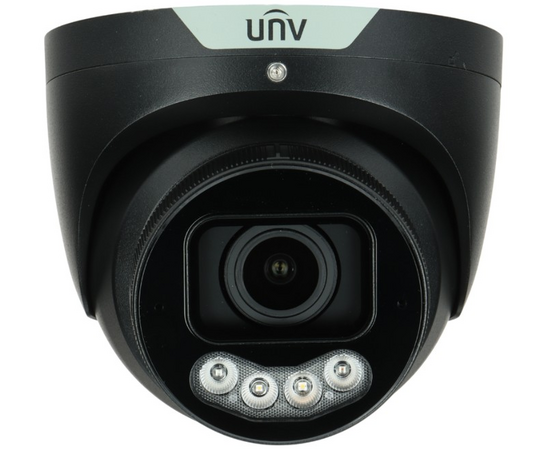

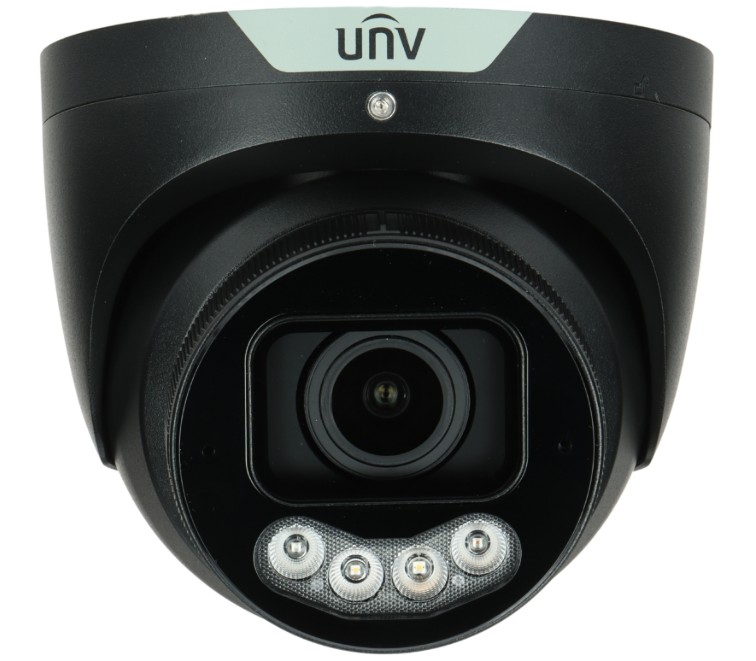

OwlView Plus 8MP Tri-Guard VF Dual-Light Turret Network Camera
The OwlView Plus 8MP Tri-Guard VF Dual-Light Turret Network Camera delivers outstanding image quality, advanced smart analytics, and robust performance for professional-grade surveillance applications. Equipped with a 1/1.8" 8MP CMOS sensor and a large F1.2 aperture lens, this camera captures ultra-sharp, vibrant images with exceptional brightness and clarity, even in low-light conditions.
Supporting multiple resolutions—including 8MP (3840×2160) at 30/25fps—and advanced compression standards such as Ultra 265, H.265, H.264, and MJPEG, it ensures efficient storage and smooth streaming without compromising image fidelity.
Powered by ColorHunter and Wise-ISP technologies, the camera provides true full-colour imaging 24/7, delivering lifelike visuals in any lighting environment. Its Tri-Guard system integrates intelligent illumination, active deterrence, and AI-powered analytics for enhanced situational awareness and proactive protection.
Smart functions include intelligent perimeter protection (cross line, intrusion, enter/leave area detection) and AI-based target classification, which minimises false alarms from irrelevant movement such as leaves, lights, or animals—accurately distinguishing between people, vehicles, and non-motor vehicles. Additional features like people counting, crowd density monitoring, and auto scene match (ASM) provide valuable insights for security and operational management.
With 130dB true WDR, the camera delivers balanced images even in challenging lighting conditions. The 9:16 corridor mode maximises vertical area coverage for hallways and narrow spaces. It also includes smart IR and warm white LED illumination up to 30 metres, a built-in microphone and speaker for two-way audio, and 1/1 alarm and audio I/O for flexible integration.
Built to last, the camera features IK10 vandal resistance and an IP67 weatherproof housing, ensuring reliable performance indoors or outdoors. Supporting up to a 512GB microSD card, the OwlView Plus Tri-Guard Camera combines intelligent imaging, advanced security features, and rugged design—making it an ideal solution for comprehensive 24-hour surveillance.
