Uniview IPC6424SR-X25-VF 4MP Outdoor PTZ Camera with 25X Optical Zoom
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

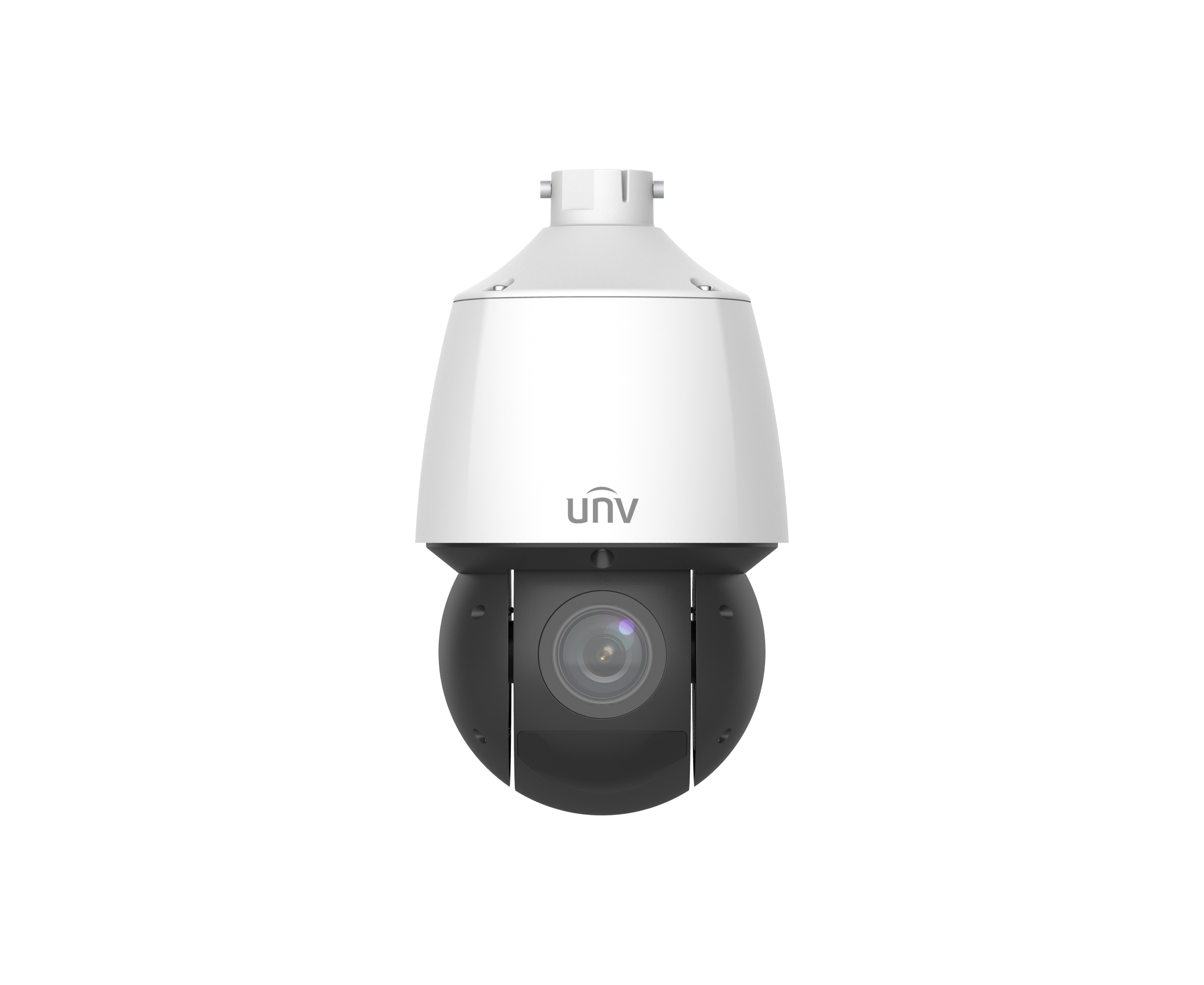

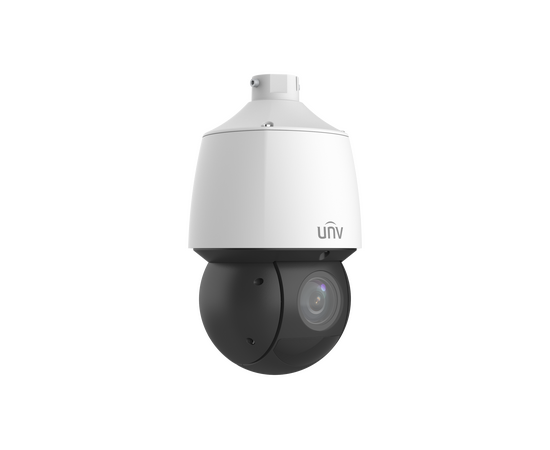

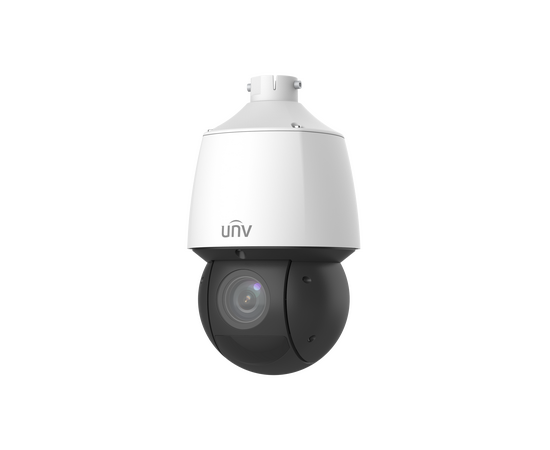

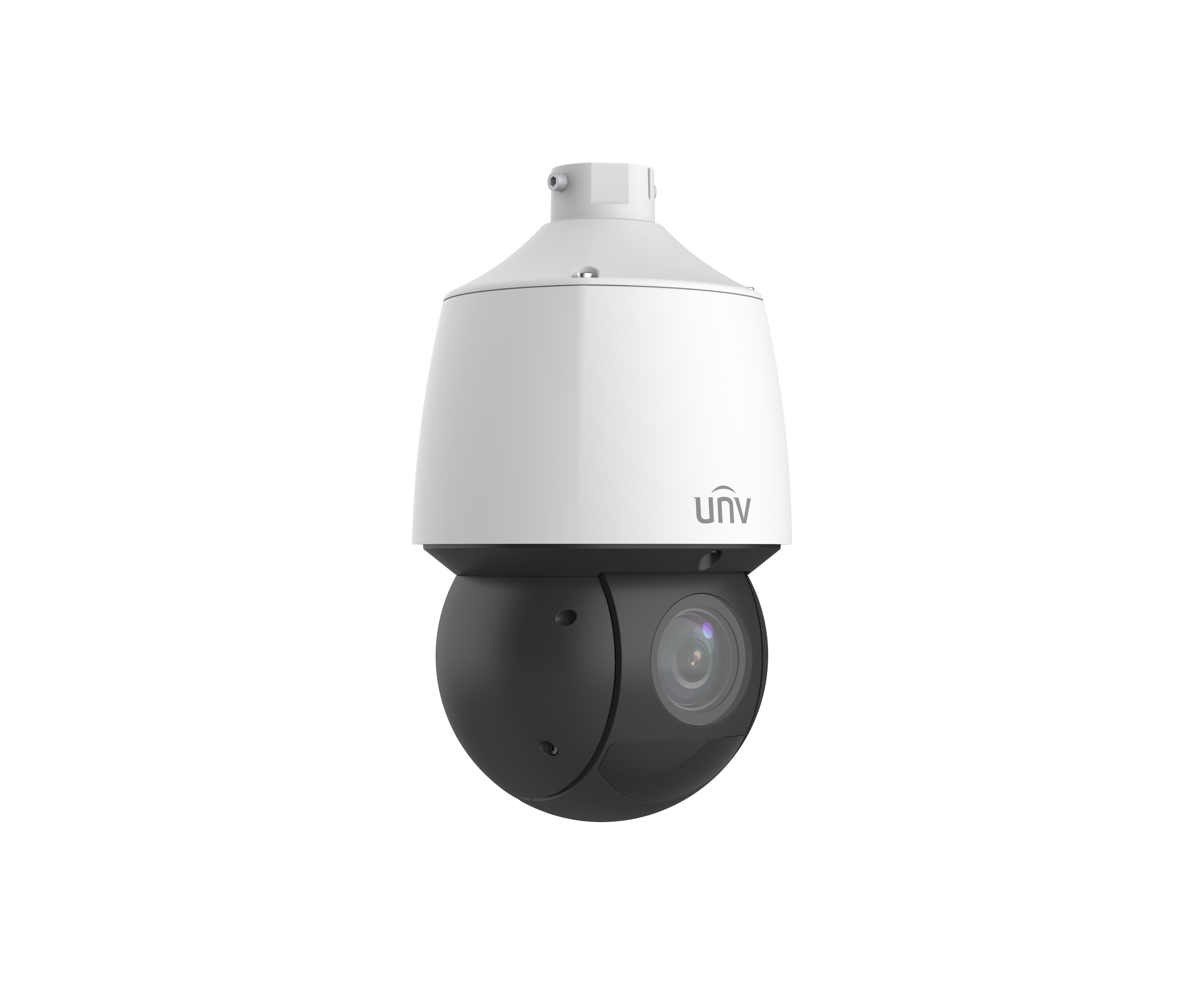

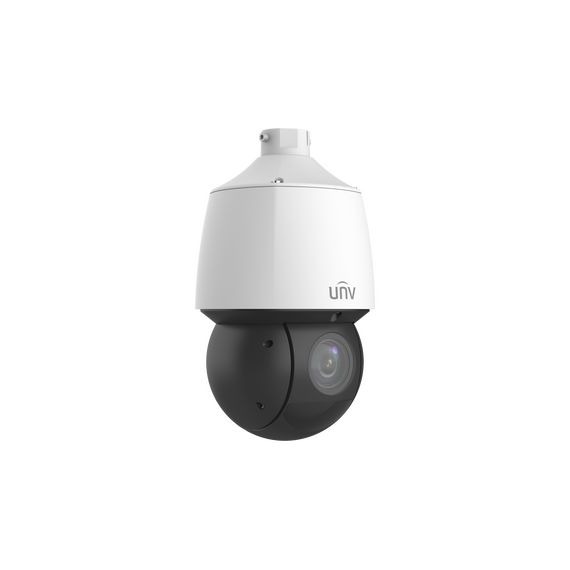

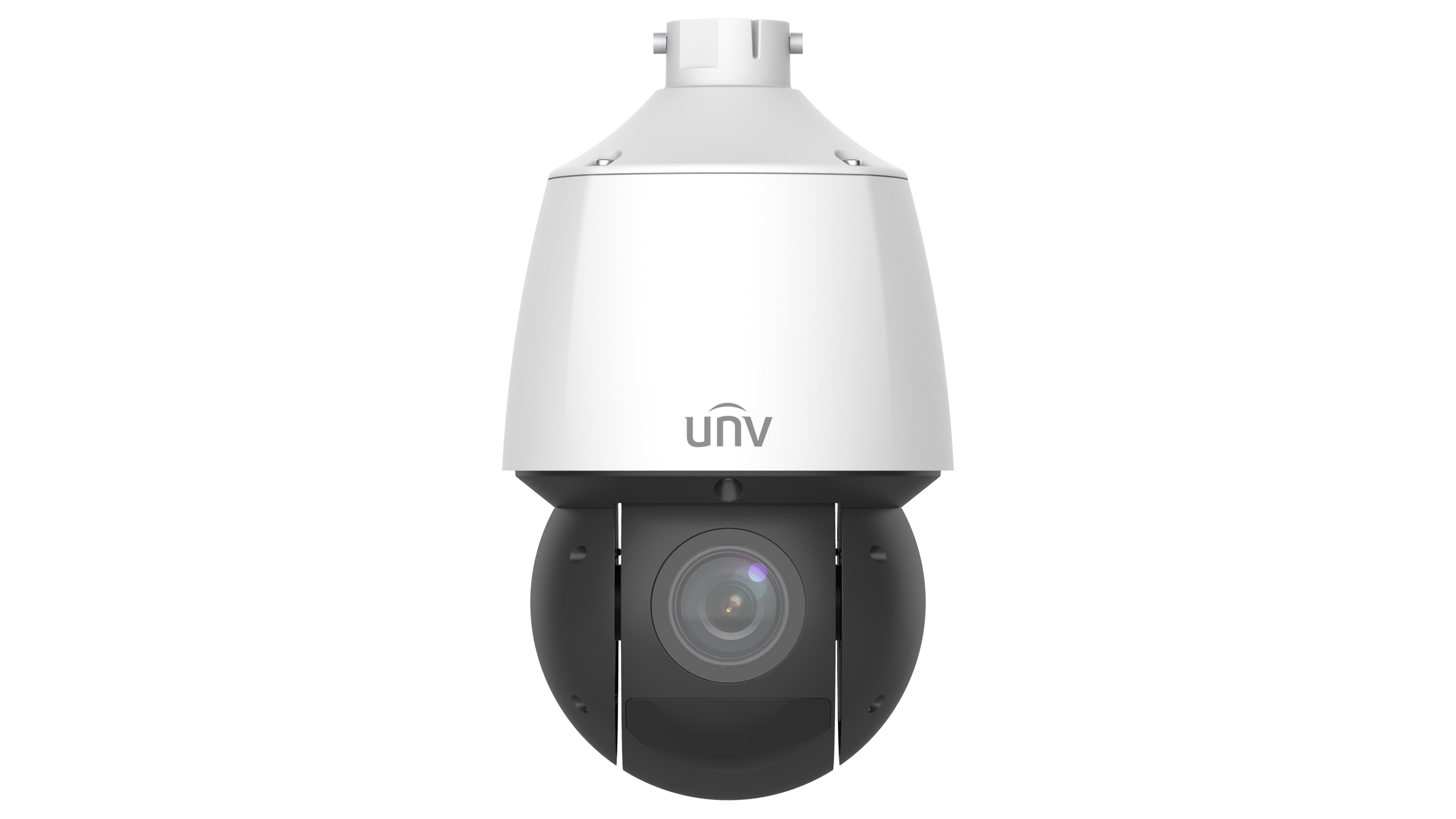

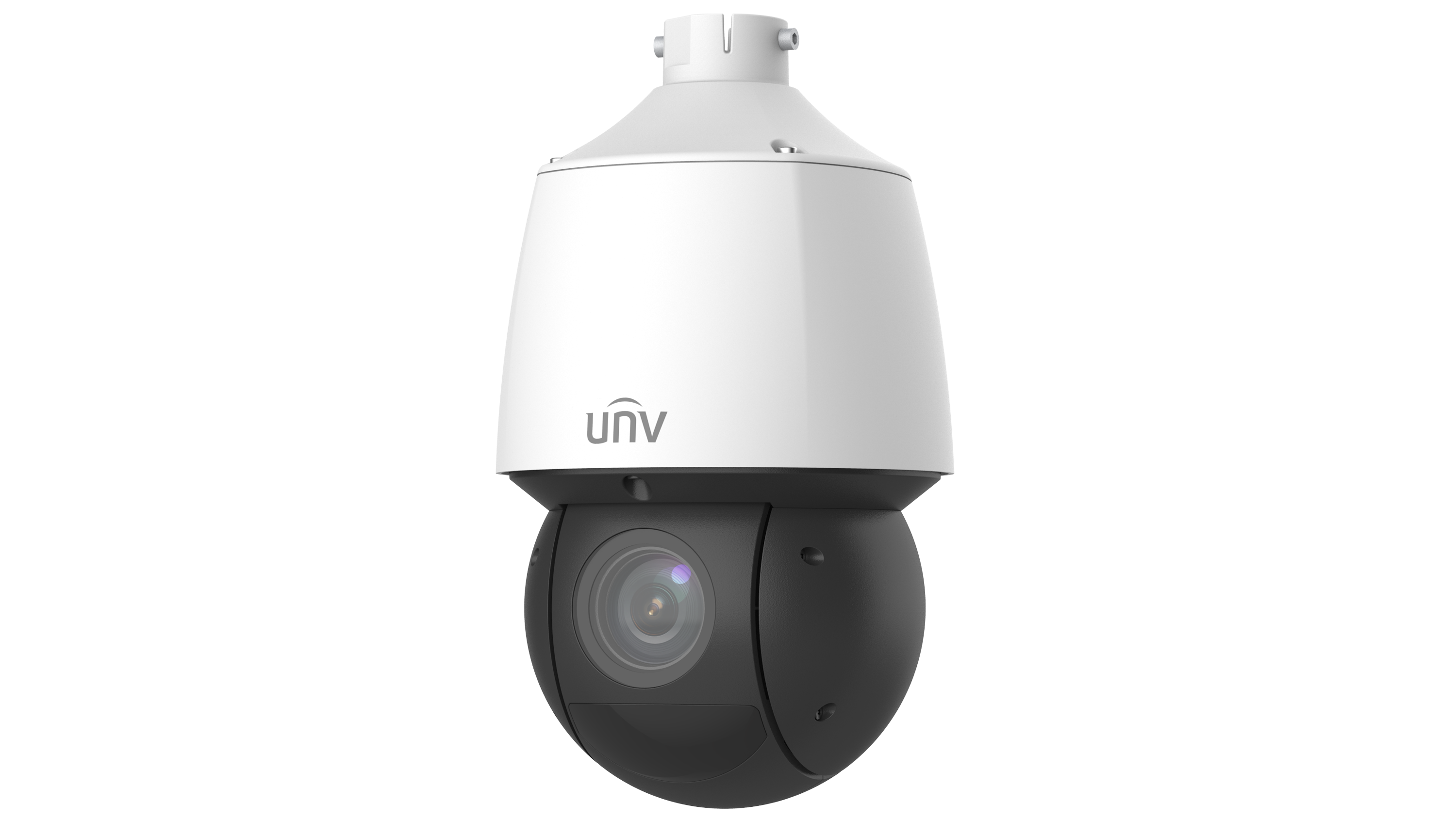

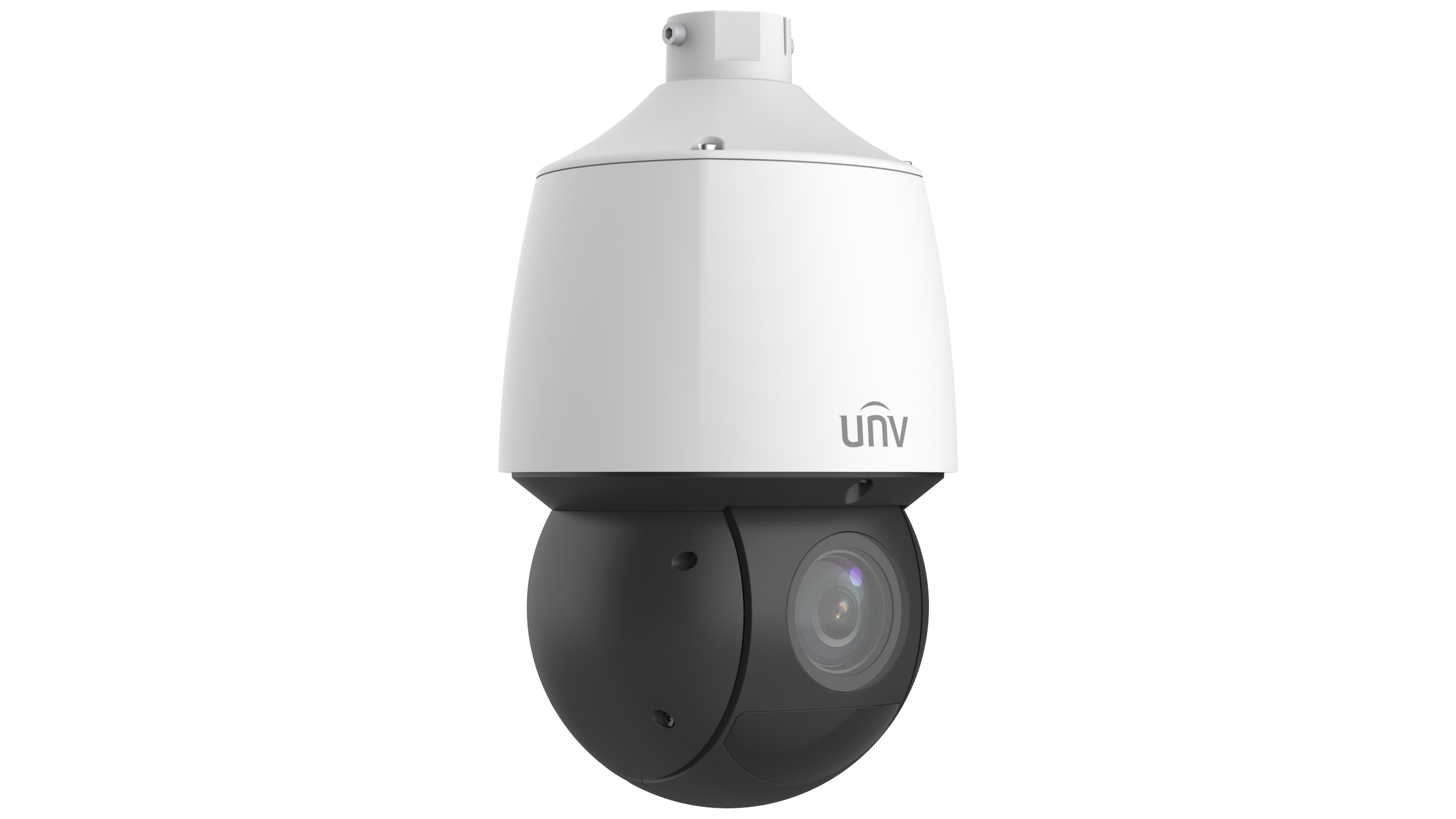

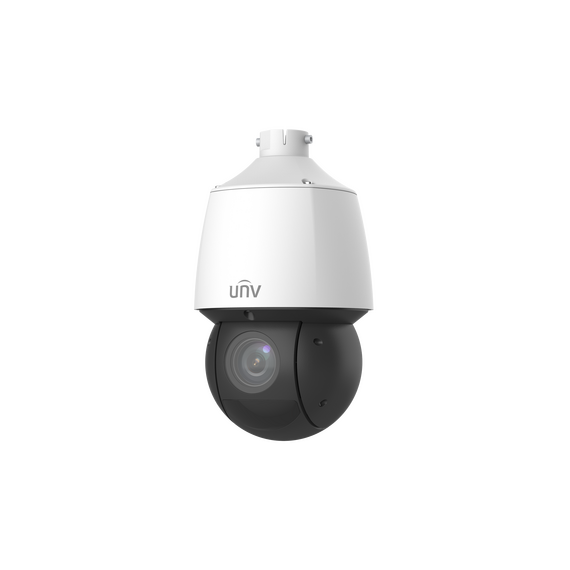

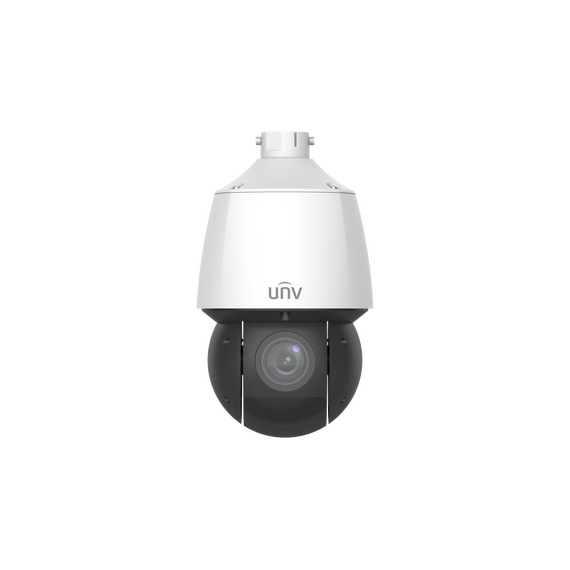

UNV 4MP Outdoor PTZ Camera with 25X Optical Zoom
The UNV 4MP Outdoor PTZ Camera delivers exceptional long-range surveillance with high-resolution imaging, intelligent low-light performance, and robust weather- and vandal-resistant design. Ideal for large outdoor areas, this PTZ camera combines 25X optical zoom, Smart IR, and Lighthunter technology to capture clear and detailed footage in any lighting condition.
Key Features
-
4MP high-resolution imaging for clear, detailed video
-
25X optical zoom for precise long-distance monitoring
-
Lighthunter technology for superior low-light performance
-
Smart IR up to 100 meters for effective night surveillance
-
Durable IK10 vandal-resistant housing
-
IP67-rated weatherproof design for reliable outdoor operation
-
Flexible power options: PoE or mains
-
Advanced video compression: Ultra 265, H.265, H.264
-
Alarm integration: 2 inputs and 1 output for system integration
Versatile and Reliable Outdoor Surveillance
With its powerful zoom and intelligent imaging technologies, this UNV PTZ camera is perfect for perimeter security, parking lots, campuses, industrial sites, and large public areas. The combination of PoE convenience, IP67 protection, and IK10 durability ensures that the camera operates reliably in challenging outdoor environments, while Smart IR and Lighthunter technologies provide crisp, full-color images even in near-dark conditions.
This camera is a professional-grade solution for anyone needing high-performance coverage over large outdoor spaces.
- 25X
