AXIS F2107-RE Standard Sensor (02868-001) - 5MP Rugged Discreet Sensor Unit for F-Series Modular Cameras
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

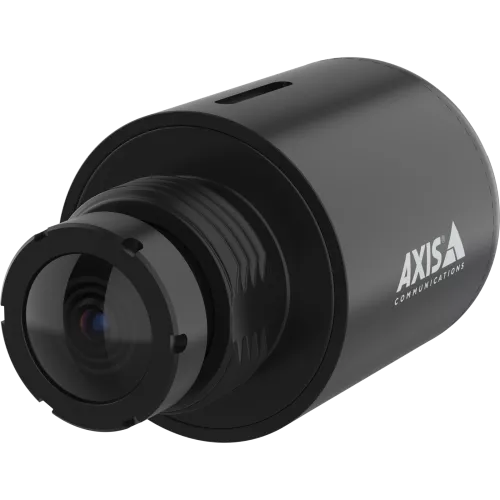

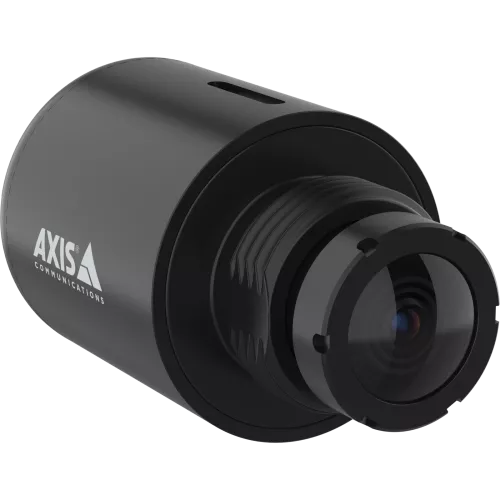

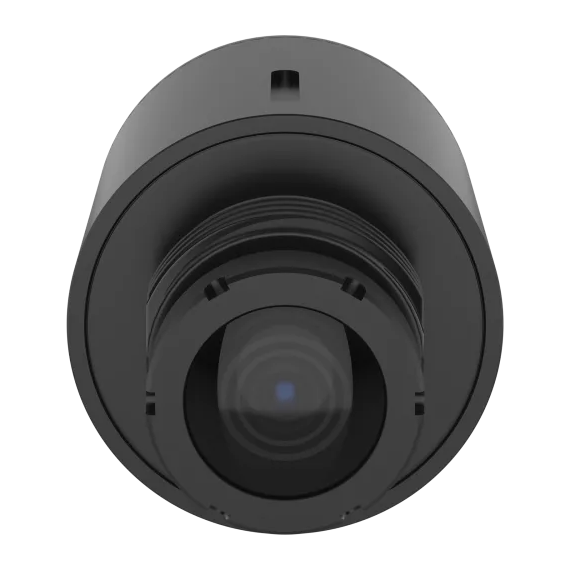

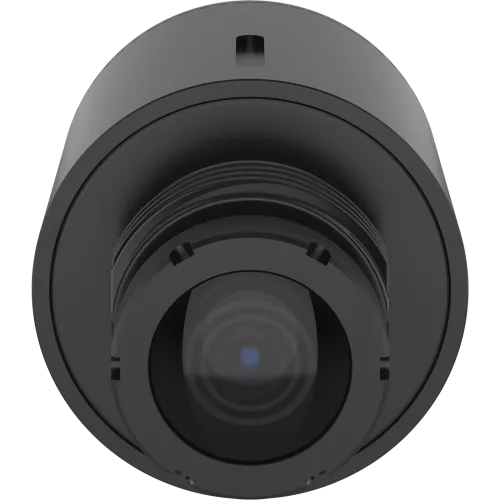

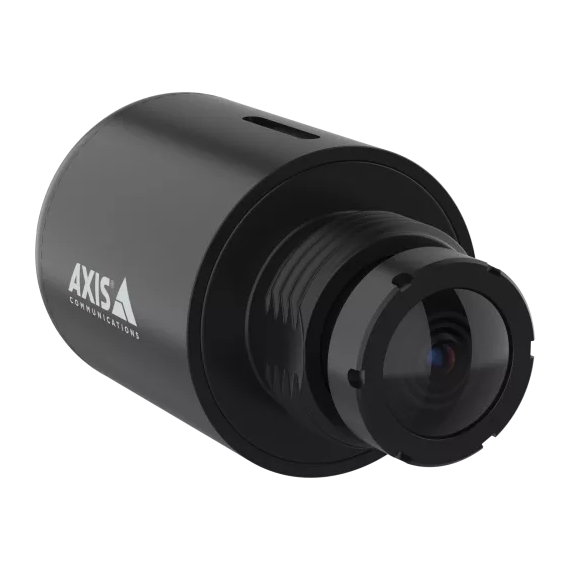

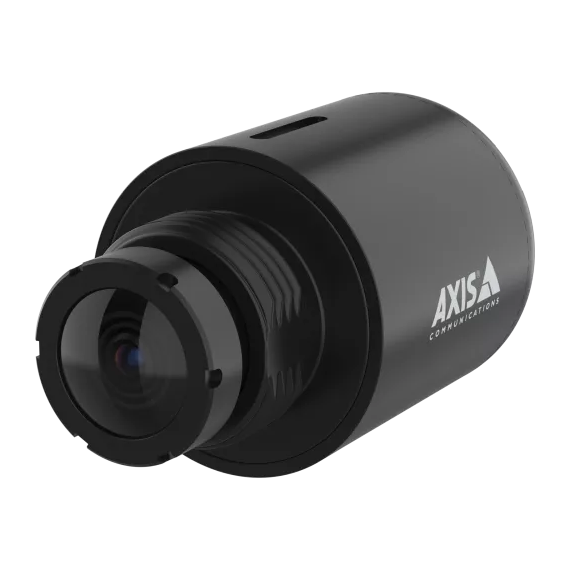

AXIS F2107-RE Standard Sensor (02868-001) – 5MP Rugged Discreet Sensor Unit for F-Series Modular Cameras.
The AXIS F2107-RE Standard Sensor (02868-001) is a compact and rugged camera sensor designed for use with Axis F-series modular main units. It delivers 5MP high-resolution imaging with a wide 110° field of view, making it suitable for discreet surveillance in vehicles, machinery, and harsh environments. Built with industrial-grade protection and a durable SMA connector interface, it ensures stable performance in extreme conditions such as dust, vibration, and moisture. Its modular design allows flexible installation in security systems where compact and remote imaging is required.
Key Features:
5MP high-resolution imaging sensor
110° wide-angle field of view
Designed for F-series modular main units
Rugged industrial-grade sensor housing
IP66 / IP67 / IP6K9K weather and dust protection
Suitable for vehicles, machinery, and outdoor use
Compact and discreet installation design
Stable SMA connector interface for secure connection
Wide operating temperature range for harsh environments
Low power consumption for efficient operation
