5MP TriGuard 2.0 Turret White UV-IPC3635SS-ADF28KMC-I1-W
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

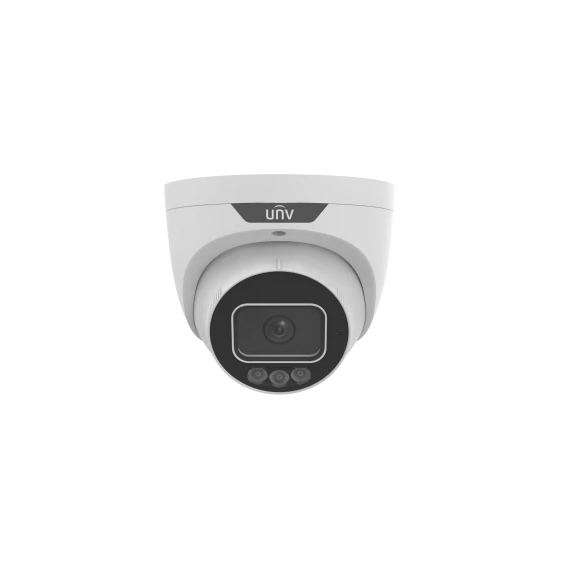

Uniview IPC3635SS-ADF28(40)KMC-I1 5MP Tri-Guard Fixed Dual-Light Turret Network Camera
The UV-IPC3635SS-ADF28KMC-I1-W is a professional 5MP Tri-Guard fixed dual-light turret network camera designed for intelligent security monitoring and active deterrence applications. Equipped with a high-quality 1/2.7" CMOS sensor and F1.0 large-aperture lens, it delivers crystal-clear 2880 × 1620 resolution video with exceptional low-light performance. This camera combines Smart IR and warm white light technology, enabling full-color night vision and intelligent illumination up to 30 meters. Its Tri-Guard active deterrence system includes red-blue flashing warning lights and built-in speaker alerts to help prevent unauthorized access in real time. Powered by advanced AI analytics, the camera supports smart intrusion prevention, human and vehicle classification, line crossing detection, intrusion alerts, people flow counting, and crowd density monitoring. Built-in microphone and speaker support enables two-way audio communication for enhanced security interaction.
Key Features
- 5MP high-resolution imaging (2880 × 1620)
- Tri-Guard active deterrence with red-blue warning lights
- 2.8mm fixed F1.0 lens for superior low-light performance
- Dual-light system: Smart IR + warm white light
- Night vision range up to 30m
- AI smart intrusion prevention with human & vehicle filtering
- Line crossing, intrusion, enter & leave area detection
- People counting and crowd density monitoring
- Built-in microphone and speaker for two-way audio
- Alarm I/O: 1 Input / 1 Output
- 130 dB True WDR for difficult lighting environments
- Supports microSD card storage up to 512GB
- Ultra 265 / H.265 / H.264 compression
- IP67 weatherproof protection for outdoor use
- PoE support for simplified installation
- ONVIF compatible for flexible NVR integration
