4MP OwlView Dome White UV-IPC3514LE-ADF28K-WP-W
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

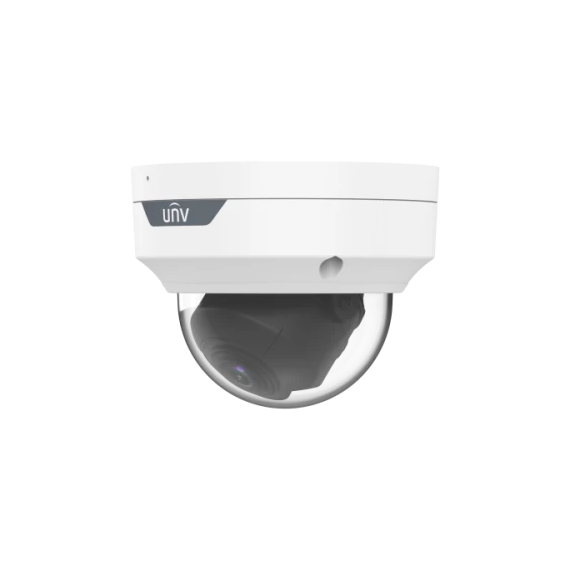

Uniview 4MP OwlView Dome White UV-IPC3514LE-ADF28K-WP-W
The UV-IPC3514LE-ADF28K-WP-W is a high-performance 4MP IP dome surveillance camera from the ColorHunter series, designed to deliver vivid full-color video even in extremely low-light conditions. Powered by a 1/1.8” CMOS sensor and F1.0 large aperture lens, it captures sharp, detailed footage day and night without relying on traditional IR-only night vision.
With advanced Wise-ISP and ColorHunter technology, the camera enhances brightness, reduces noise, and improves color accuracy for superior image clarity in all environments. It supports PoE installation for simplified setup and is built with IP67 weatherproof and IK10 vandal-resistant housing, making it ideal for both indoor and outdoor security applications.
The camera also includes intelligent video analytics such as human detection, intrusion alerts, and motion detection, making it suitable for homes, retail stores, offices, warehouses, and critical infrastructure protection.
Key Features
- 4MP high-resolution (2688 × 1520) crystal-clear video
- ColorHunter technology for 24/7 full-color imaging
- 1/1.8” CMOS sensor with F1.0 ultra-large aperture lens
- Built-in microphone for real-time audio monitoring
- 120 dB True WDR for balanced exposure in bright/dark scenes
- Smart AI detection: human, intrusion, and motion detection
- Supports microSD card storage up to 512GB
- PoE support for easy single-cable installation
- IP67 waterproof and IK10 vandal-resistant design
- Ultra 265 / H.265 / H.264 compression for efficient storage
- Corridor mode (9:16) for hallways and narrow areas
- Advanced Wise-ISP image processing for low-light clarity
