5MP IR Analogue Turret White UV-UAC-T115-F28-W-W
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Uniview 5 MP IR Analogue Turrent White UV-UAC-T115-F28-W-W

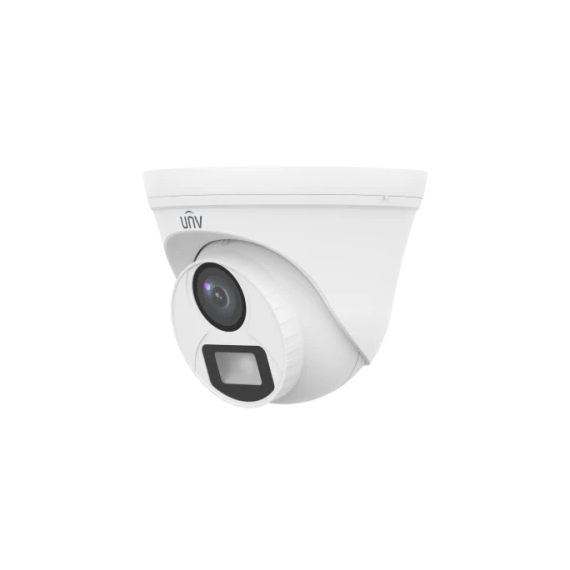

The UV-UAC-T115-F28-W is a high-performance 5MP ColourHunter HD fixed turret analog camera designed to deliver bright, full-color video monitoring 24/7. Equipped with a 1/2.7” CMOS sensor and advanced white light illumination, this camera ensures enhanced visibility even in extremely low-light environments.
Supporting TVI, AHD, CVI, and CVBS video outputs, it offers excellent compatibility with a wide range of DVR systems, making installation flexible and cost-effective. The 2.8mm fixed lens provides a wide viewing angle ideal for homes, offices, shops, parking areas, and commercial security applications.
Built with an IP67 weatherproof housing, the camera performs reliably in harsh outdoor and indoor conditions. Its easy-to-use OSD menu, multi-language support, and durable 3-axis design make installation and configuration simple for professional surveillance setups.
Key Features
- 5MP high-resolution imaging for sharp and detailed video
- ColourHunter technology for 24/7 full-color surveillance
- 2.8mm fixed lens with wide viewing angle
- Supports TVI/AHD/CVI/CVBS video formats
- White light illumination up to 20m night visibility
- IP67 waterproof and dustproof protection
- Advanced low-light performance with vivid color capture
- OSD menu with support for 11 languages
- 180° horizontal and vertical image flip support
- Compatible with long-distance coaxial cable transmission
- Compact turret design for indoor and outdoor installation
- Reliable performance in extreme weather conditions
No reviews found
