Uniview UV-IPC3624LE-ADF28K-WP 4MP ColorHunter Wise-ISP OwlView Turret
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

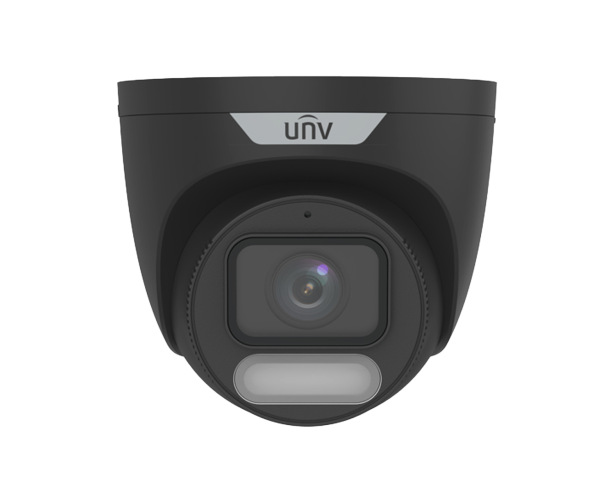

Uniview UV-IPC3624LE-ADF28K-WP 4MP ColorHunter Wise-ISP OwlView Turret
The Uniview IPC3624LE-ADF28K-WP 4MP ColorHunter Wise-ISP IP Turret Camera delivers premium surveillance performance, designed to capture vivid, high-definition images even in extremely low-light environments. With a 4-megapixel sensor and a large F1.0 aperture lens, it records crisp, detailed footage at 25 frames per second, ensuring consistent clarity across diverse conditions. Thanks to ColorHunter and Wise-ISP technologies, the camera enhances colour accuracy and detail reproduction, reducing distortion and improving visibility when lighting is poor.
Built for reliable operation both day and night, the camera includes white light illumination that provides up to 30 metres of warm, even lighting, ideal for maintaining security and visibility in dark areas. Its 120dB true Wide Dynamic Range (WDR) technology balances bright and dark scenes, preventing overexposure and shadow loss—especially useful in environments with mixed lighting such as entrances or parking lots.
For narrow or vertical spaces like hallways, the 9:16 Corridor Mode optimises the field of view, ensuring full area coverage without missing critical details. A built-in microphone supports audio monitoring and optional two-way communication, adding another layer of situational awareness.
Housed in a durable, weather-resistant casing with an IP67 rating, this camera is engineered to endure harsh weather conditions, making it ideal for both indoor and outdoor installations. It supports up to a 512GB microSD card for local storage and utilises Power over Ethernet (PoE) for streamlined installation and operation. Whether used as a standalone surveillance solution or part of a larger security network, the Uniview IPC3624LE-ADF28K-WP provides dependable performance, advanced imaging capabilities, and comprehensive protection.
