Uniview Villa Video Intercom Kit with 2MP Door Station & 7-Inch Indoor Touch Screen, WiFi, IC Card Access & Two-Way Audio (UV-KIT/201S/372S)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Uniview Villa Video Intercom Kit with 2MP Door Station & 7-Inch Indoor Touch Screen, WiFi, IC Card Access & Two-Way Audio – UV-KIT/201S/372S

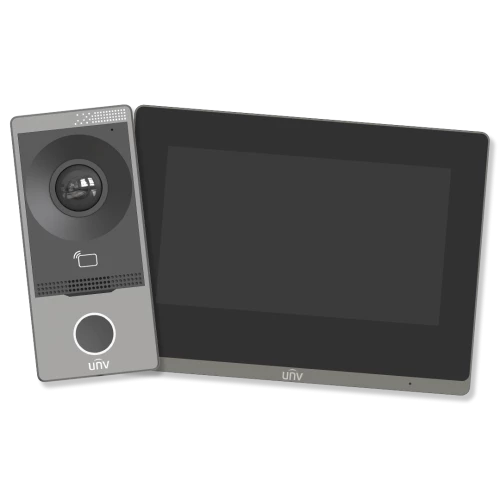

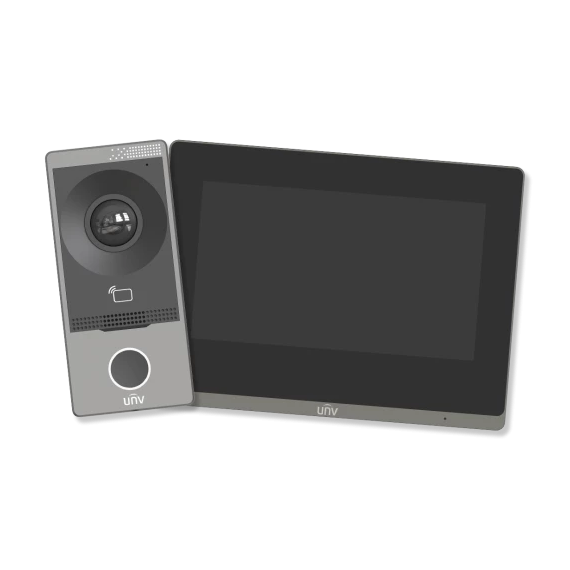

The UV-KIT/201S/372S is a complete Uniview villa video intercom system designed for secure and convenient access control. It includes the OEU-201S-HMK-W outdoor door station with a 2MP camera and IC card reader, along with the OEI-372S-H-W 7-inch indoor touchscreen monitor. The system allows real-time video communication, remote door unlocking, and mobile app integration through UNV-Link. With built-in WiFi, PoE support, and infrared night vision, it ensures stable performance and clear visibility in all lighting conditions. This kit is ideal for villas, apartments, and small residential complexes requiring smart entry management and visitor communication.
Key Features
- Complete kit: 1 outdoor door station + 1 indoor monitor
- 2MP HD camera with wide-angle view
- 7-inch TFT touchscreen indoor display
- IC card access control (keyless entry support)
- Two-way audio communication (mic + speaker)
- WiFi + PoE connectivity support
- IR night vision for low-light visibility
- Remote door unlock via indoor unit or mobile app
- Motion detection and tamper alarm support
- Supports multiple indoor stations (expandable system)
- Live view of visitors and connected cameras
- Metal outdoor unit with IP65 protection
- Indoor station with recording & snapshot function
- UNV-Link mobile app integration
Ideal Applications
Perfect for industrial zones, parking lots, retail stores, warehouses, and public areas.
