Uniview 4MP 4MP 5X Wise-ISP OwlView Tri-Guard Warm Light PTZ Camera
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

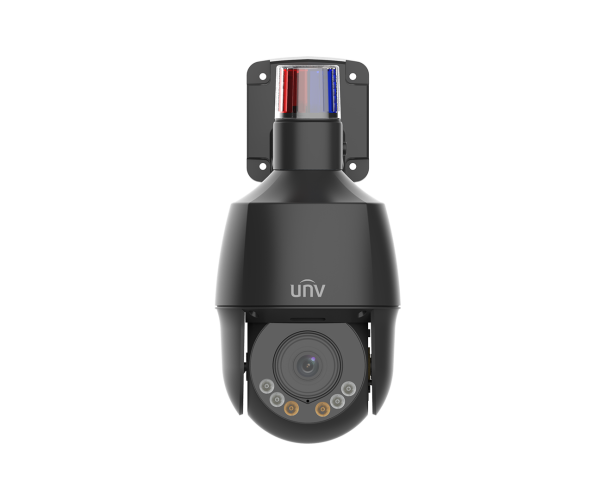

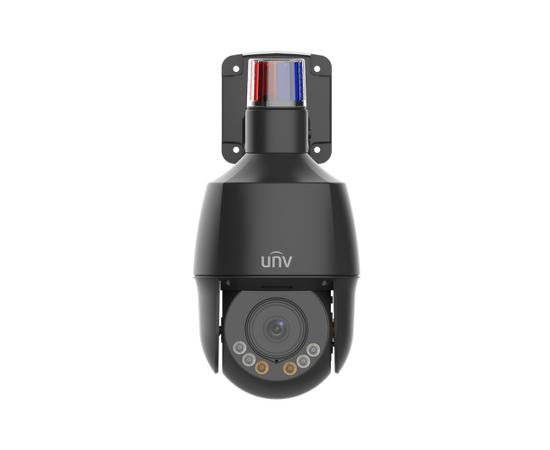

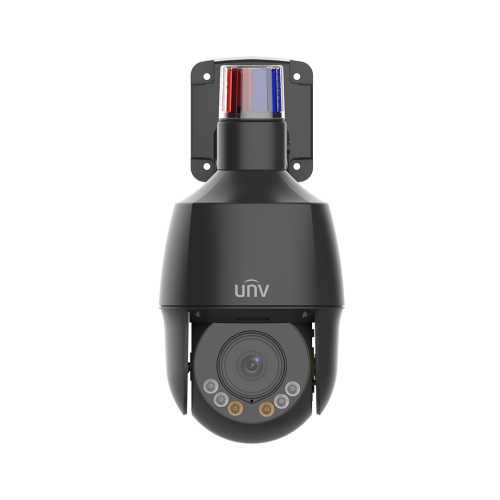

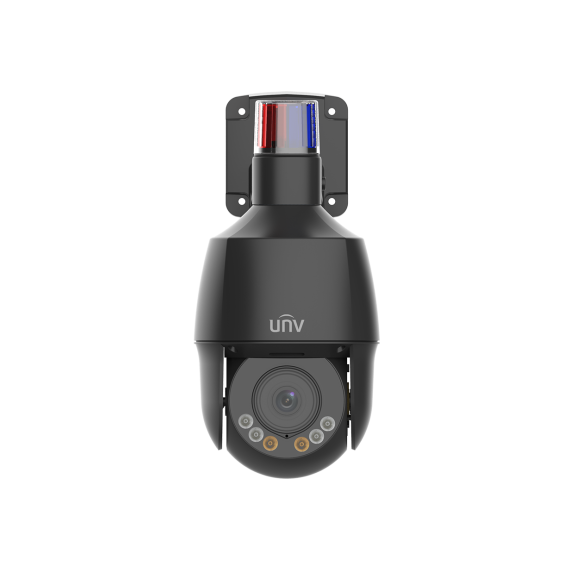

Uniview IPC6324LWH-AX5C-VG2
4MP 5X Wise-ISP Tri-Guard Warm Light Network PTZ Camera**
The IPC6324LWH-AX5C-VG2 is a high-performance 4MP PTZ camera designed for superior color imaging, intelligent detection, and reliable low-light surveillance. Equipped with Wise-ISP technology, Tri-Guard capabilities, and 5X optical zoom, this camera captures detailed, full-color video even in extremely dark environments. Its warm-light illumination, built-in audio, and advanced AI analytics make it ideal for proactive security applications.
Key Features
-
4MP Ultra-Clear Imaging: High-quality image performance using a large 1/1.8" CMOS sensor for excellent clarity and low-light sensitivity.
-
Wise-ISP + ColorHunter: Deep image optimization enhances color reproduction, details, and smear suppression in extremely low-light scenes.
-
Flexible Streaming: Supports 2688 × 1520 @ 30 fps (16:9) with Ultra 265, H.265, H.264, and MJPEG compression formats.
-
Smart Intrusion Prevention: AI-enabled false alarm filtering with cross-line detection and intrusion detection for accurate perimeter protection.
-
120 dB Wide Dynamic Range: Ensures balanced, clear images in challenging lighting conditions such as strong backlight or high contrast.
-
Integrated Audio: Built-in microphone and speaker enable real-time two-way communication and audio deterrence.
-
40 m Warm-Light Illumination: Provides powerful full-color imaging at night with up to 131.2 ft warm-light range.
-
Edge Storage: Supports MicroSD cards up to 512 GB for reliable local recording.
-
Rugged Design: IP66-rated protection for dependable outdoor use in harsh environments.
-
Flexible Power Options: Compatible with DC 12V and PoE (IEEE 802.3at) for easy installation.
