Veracity CAMSWITCH 8 MOBILE VCS-8P2-MOB
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

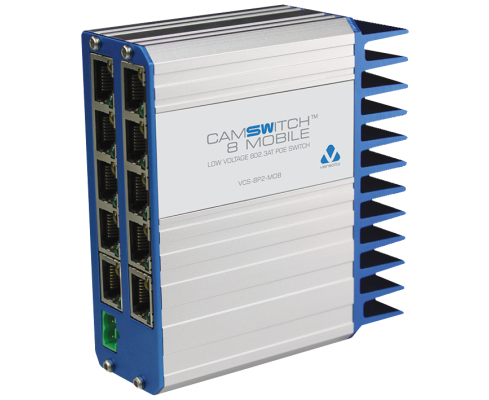

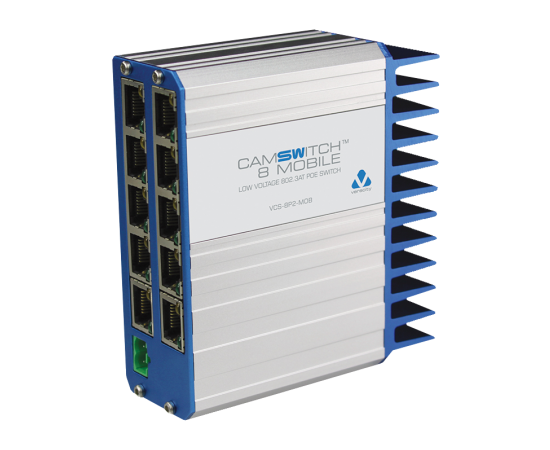

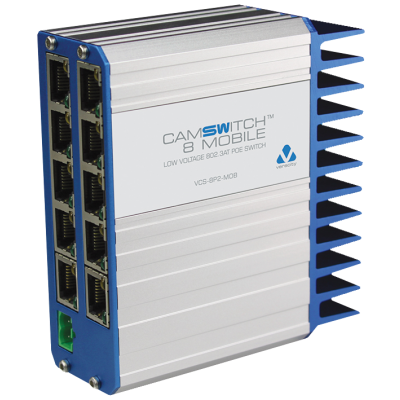

CAMSWITCH Mobile is the ideal solution for installing IP cameras and other POE and network devices in transport, battery/solar powered, and other low-voltage applications. It integrates a 5 or 10 port 10/100 Ethernet switch with the capability to convert a 8 to 40 volt DC supply into an 80 watt IEEE 802.3af/at compliant power source.
CAMSWITCH 8 Mobile features 8 802.3at POE ports, 2 non-POE ports, and a versatile DC power input.
Compact and powerful
CAMSWITCH Mobile delivers up to 80 watts of IEEE802.3af / 802.3at compatible POE power to POE devices from a DC voltage as low as 8 volts, providing continuous operation during engine cranking or low battery scenarios. Ports may also be used for non-POE equipment such as mobile NVRs.
Installer friendly
CAMSWITCH Mobile's internal 10/100 Ethernet switch is entirely self-configuring to speed, duplex and cable type, and POE is automatically detected and enabled. No user configuration is required, and optional mounting are included.
