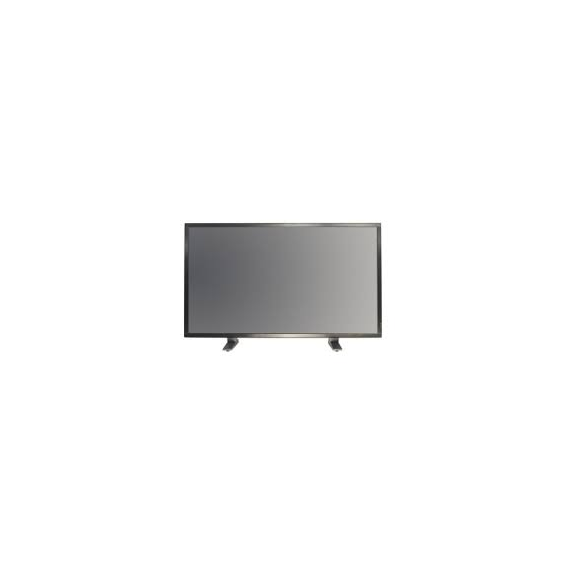

Vigilant Vision 32″ 1080P (16:9) LED Monitor (DS320FHD-2)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
DS320FHD-2 32" Full HD Professional LED Monitor
The DS320FHD-2 is a high-performance 32-inch Full HD LED monitor designed for professional CCTV surveillance and commercial display applications. Delivering crisp 1920 × 1080 resolution, exceptional colour reproduction, and an ultra-wide 178° viewing angle, it ensures clear, consistent images from virtually any position.
Built with a durable metal chassis for continuous operation, the DS320FHD-2 features versatile connectivity including HDMI, VGA, and BNC inputs, making it compatible with a wide range of DVRs, NVRs, PCs, and video sources. An integrated audio input and built-in speakers provide a complete monitoring solution without the need for external audio equipment.
With a high 3000:1 contrast ratio, 300 cd/m² brightness, and support for 16.7 million display colours, the DS320FHD-2 delivers sharp detail and vibrant images, making it ideal for security control rooms, retail environments, reception areas, and commercial installations.
Key Features:
- 32" Full HD (1920 × 1080) LED display
- Wide 178° horizontal and vertical viewing angles
- HDMI, VGA and BNC video inputs
- BNC loop-through output
- Integrated audio input with built-in speakers
- High 3000:1 contrast ratio for enhanced image clarity
- 300 cd/m² brightness for bright, detailed images
- Durable metal housing for professional installations
- VESA 200 × 200 mounting compatibility
- Supplied with desktop stand
The DS320FHD-2 combines reliability, professional-grade performance, and flexible connectivity, making it an excellent choice for 24/7 surveillance monitoring and commercial display applications.
