8MP ColorHunter Turret White UV-IPC3618LB-ADF28K-DL-W
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Uniview 5MP ColorHunter Analogue Bullet White UV-UAC-B125-AF28M-W-W

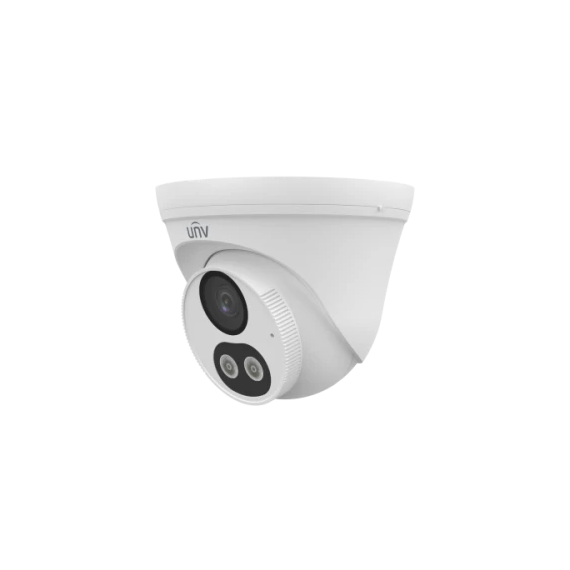

The UV-IPC3618LB-ADF28K-DL-W is a high-resolution 8MP ColorHunter turret network camera designed for advanced security monitoring with exceptional image clarity. It captures ultra-HD 3840 × 2160 resolution video using a 1/2.7" CMOS sensor, delivering highly detailed footage suitable for critical surveillance applications. Equipped with ColorHunter dual-light technology, the camera provides full-color imaging even in extremely low-light environments. It combines infrared and warm white light illumination, ensuring clear visibility at night without losing color detail. The 2.8mm fixed lens offers a wide field of view, making it ideal for perimeter security, commercial buildings, and outdoor monitoring. This model includes intelligent video analytics such as human detection and motion detection to reduce false alarms and improve monitoring accuracy. It also features a built-in microphone for audio recording, adding an extra layer of situational awareness. With IP67 weatherproof protection and support for PoE installation, the camera is built for reliable outdoor performance in harsh environments, making it suitable for professional-grade surveillance systems.
Key Features
- 8MP ultra-HD resolution (3840 × 2160)
- ColorHunter dual-light technology for full-color night vision
- 2.8mm fixed lens with wide-angle coverage
- Smart IR + warm light illumination up to ~30m
- Built-in microphone for audio recording
- AI motion and human detection for smart alerts
- Supports H.265 / Ultra 265 compression
- IP67 weatherproof metal housing for outdoor use
- Corridor mode (9:16) support for narrow areas
- PoE support for easy single-cable installation
- ONVIF compatible for flexible system integration
- Low-light optimized for clear night-time imaging
