8MP OmniView Turret White UV-IPC3K28SE-ADF28KMC-DL-I0-W
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

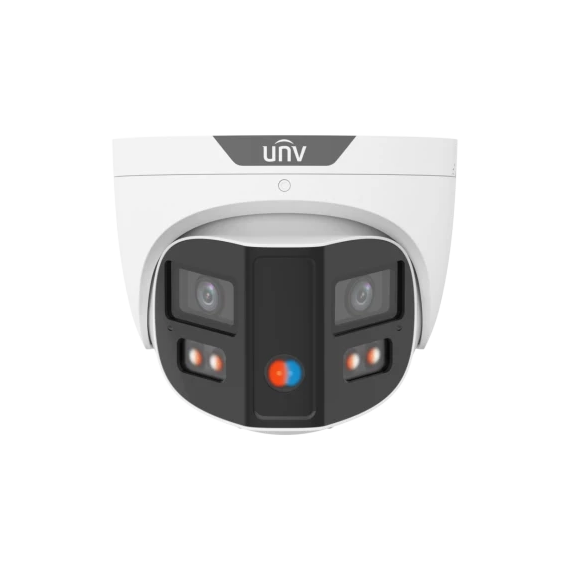

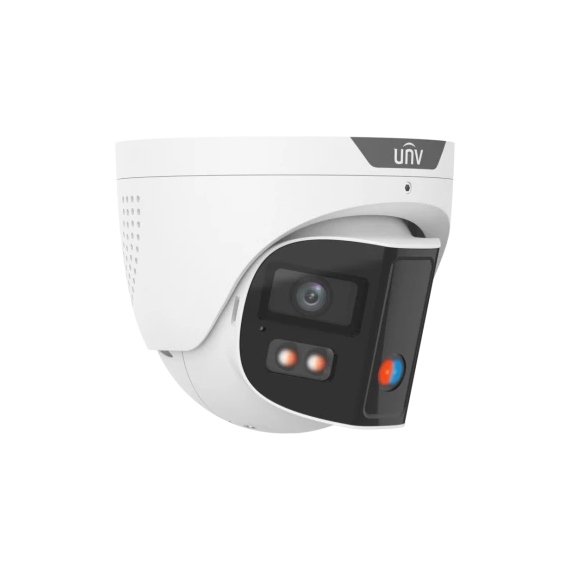

Uniview 8MP OmniView Turret White UV-IPC3K28SE-ADF28KMC-DL-I0-W
The UV-IPC3K28SE-ADF28KMC-DL-I0-W is a premium 8MP panoramic turret network camera designed for advanced intelligent surveillance with ultra-wide 180° coverage. Using dual-lens splicing technology, the camera combines two 4MP sensors into one seamless panoramic image, delivering exceptional area monitoring while reducing blind spots. Powered by ColorHunter technology and a large F1.0 aperture, the camera provides vivid full-color imaging even in extremely low-light conditions. Its dual-light system combines infrared and warm white light illumination, offering clear night visibility up to 30 meters. The camera integrates Tri-Guard smart security functions including AI intrusion prevention, human/vehicle classification, people counting, crowd density monitoring, and active deterrence with red-blue flashing warning lights and built-in speaker alerts. Equipped with built-in dual microphones and speaker support, it enables high-quality two-way audio communication. The camera also supports microSD storage up to 512GB, PoE installation, and rugged IP67 + IK10 protection for demanding outdoor environments.
Key Features
- 8MP panoramic resolution (4096 × 1860)
- Dual-lens splicing technology for seamless 180° viewing
- ColorHunter technology for 24/7 full-color imaging
- 2 × 2.8mm fixed lenses with F1.0 aperture
- Dual-light system: IR + warm white light
- Night vision range up to 30m
- Tri-Guard active deterrence with red & blue warning lights
- Smart AI intrusion prevention with human & vehicle filtering
- People counting and crowd density monitoring
- Built-in dual microphones and speaker
- Supports two-way audio communication
- 130 dB True WDR for strong backlight environments
- Supports microSD card up to 512GB
- IP67 waterproof and IK10 vandal-resistant protection
- PoE support for simplified installation
- ONVIF compatible for flexible NVR integration
