Axis Q6225-LE outdoor PTZ camera HD 1080p resolution, 31x optical zoom, 360° pan and up to 400m Optimised IR
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

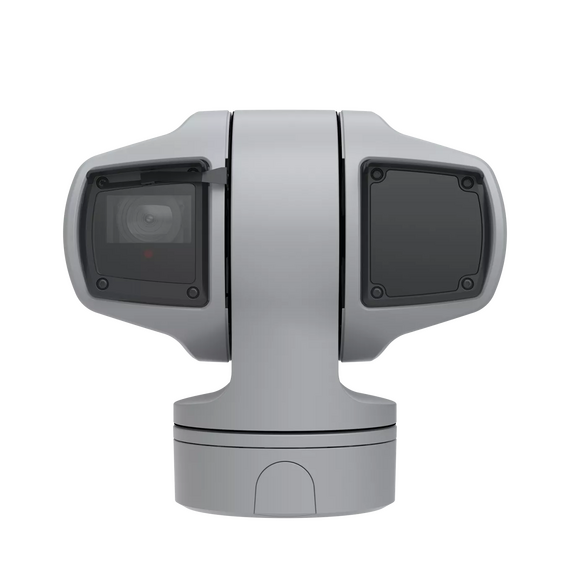

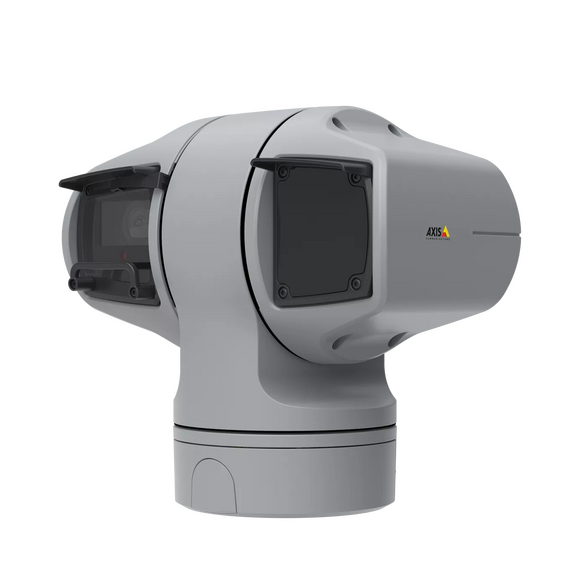

AXIS Q6225-LE PTZ Camera
Ideal for wide and long-distance surveillance, AXIS Q6225-LE is specially designed with high precision PTZ and long-range OptimizedIR. It features a ½” sensor, 31x optical zoom, and built-in analytics to alert you when needed.
Heavy-duty and robust
This heavy-duty PTZ camera meets the MIL-STD-810G standard, ensuring reliable operation in the toughest conditions. And it can withstand winds up to 245 km/h (152 mph). With vandal-resistant IK10-rated casing and NEMA 4X, NEMA TS-2, and IP66/IP68 ratings, you can rest assured that the camera housing is resistant to both harsh weather conditions and impacts. Thanks to the flexible design the camera can be mounted facing up or down depending on your needs. Furthermore, out-of-the-box it includes a bracket with sliders for safe and easy top-mounted installations.
Great image quality both far and wide
AXIS Q6225-LE offers HDTV 1080p resolution with 31x optical zoom. Thanks to long-range OptimisedIR up to 400 m (1312 ft) the camera’s IR LEDs can automatically adjust to the camera zoom, so the entire field of view is always evenly illuminated. Plus, high-speed pan/tilt performance ensures exceptional coverage of large areas and great detail when zooming in. Featuring a very light-sensitive ½” inch sensor, Forensic WDR, and Lightfinder it ensures sharp, clear images even when there’s both dark and light areas in the scene. Additionally, Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements without sacrificing quality.
Intelligent protection
This high-performance PTZ camera is packed with built-in analytics to alert you when needed. It comes with AXIS Guard Suite analytics, including AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for detecting motion, intrusion, and loitering. It also features autotracking functionality. And Axis Gatekeeper automatically moves the camera to a preset position when motion is detected in a pre-defined area. Thanks to Axis Object Analytics you can detect and classify people and vehicles. Furthermore, it includes a Trusted Platform Module that is FIPS
- 31x
