AXIS T91G61 Wall Mount Grey (01444-001) – Outdoor PTZ Wall Mount with IP66 Cable Compartment & Integrated RJ45 Connector
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
AXIS T91G61 Wall Mount Grey (01444-001) – Outdoor PTZ Wall Mount with IP66 Cable Compartment & Integrated RJ45 Connector

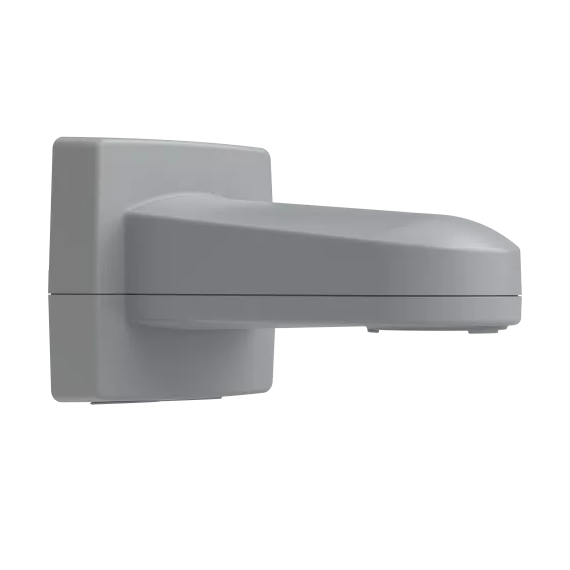

The AXIS T91G61 Wall Mount Grey (01444-001) is a heavy-duty outdoor mounting solution designed for AXIS PTZ and high-end network cameras. It features an integrated sealed compartment that safely houses power accessories such as PoE midspans or media converters, protecting them from water, dust, and environmental damage. The mount includes a pre-mounted IP66-rated RJ45 Ethernet cable with gasket for fast and secure installation. With its rugged aluminum construction and vandal-resistant design, it is ideal for critical surveillance deployments in urban, industrial, and perimeter environments.
Key Features
- IP66-rated weatherproof wall mount for outdoor use
- IK10 impact-resistant aluminum housing
- Built-in compartment for midspans or media converters
- Pre-mounted RJ45 Ethernet cable with IP66 connector
- Designed for AXIS PTZ and multi-sensor camera systems
- Internal space for clean cable and accessory management
- Compatible with AXIS T91B57 pole mount system
- Supports secure and professional outdoor installations
- Reduces exposure of power and network components
