CCTV Data Compliance Kit addon - 5 X 16GB USB Drives addon (HAY-5USB16GBPK)
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
These 16GB USB drives are to be used to provide evidence to the authorities. Each pack is for 5 incidents and comes complete with tamper-proof evidence bags.
Can be used in conjunction with the MASTER KIT HAY-MUSBKT32GB

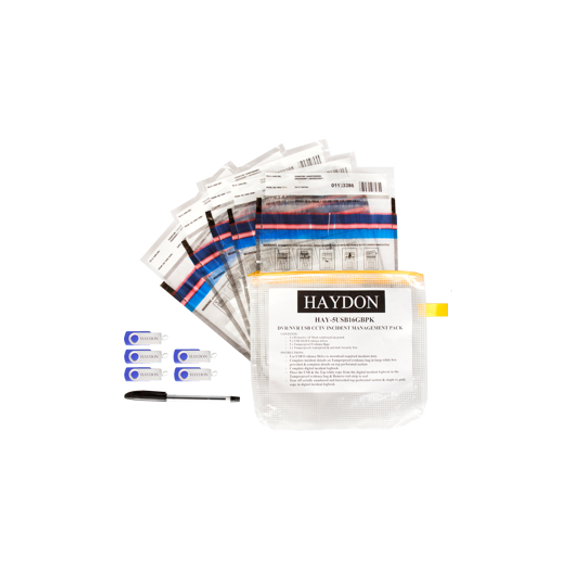

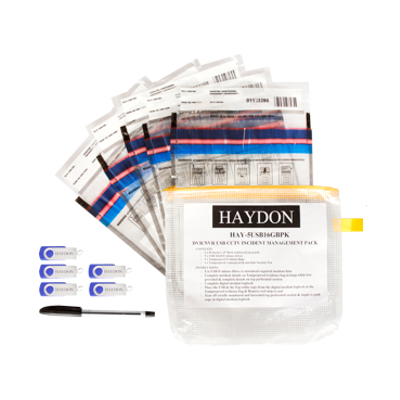

Contains:
- 5 x 16GB USB DRIVES, this is a grade “A” NAND flash & with high quality SMI controller chip. Fast read & write speeds, manufactured with 20 point ISO certification quality control for every drive. Ten year warranty.
- 5 x Tamper Evidence Bags. These are manufactured by the market leader and are fully bar-coded, serial numbered and have a tamper-proof seal. Once closed they can only be opened by cutting open and destroying the bag. They have a tear off strip which will be kept by the site for the audit trail of evidence.
- 1 x Security Ink pen (ballpoint) for writing in the incident logbook. Tamper-proof, Waterproof and Fade-proof ink.
- 1 x 1 x A5 Zip Bag Mesh reinforced clear PVC. To keep in USBs and Pen safe on site.
