CCTV Data Compliance Kit
- CCTV Lens Guide
- Hard Drive Size Guide
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)

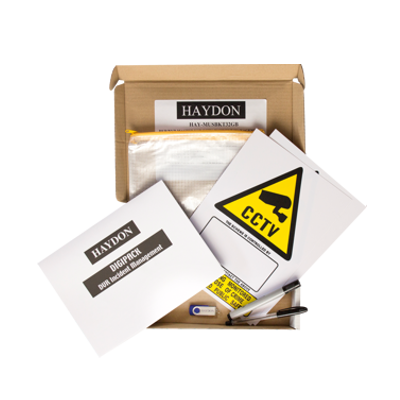

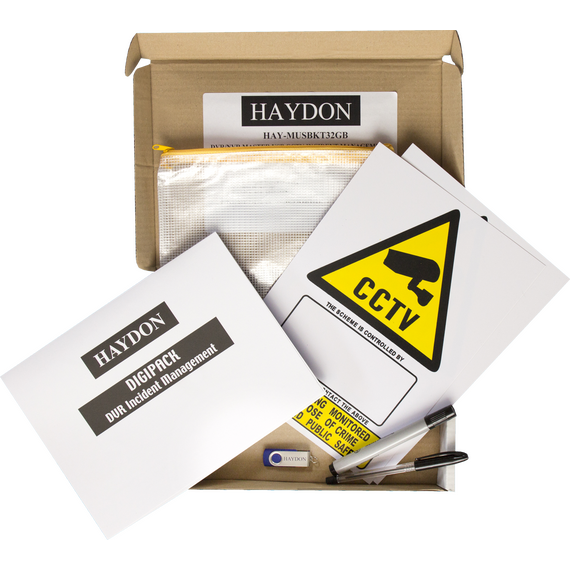

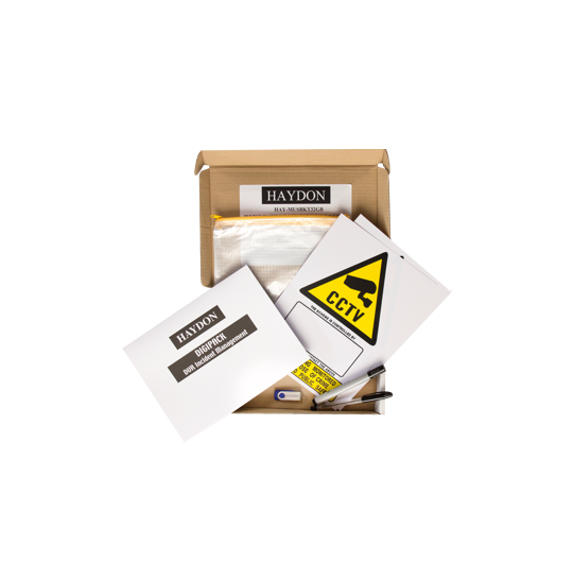

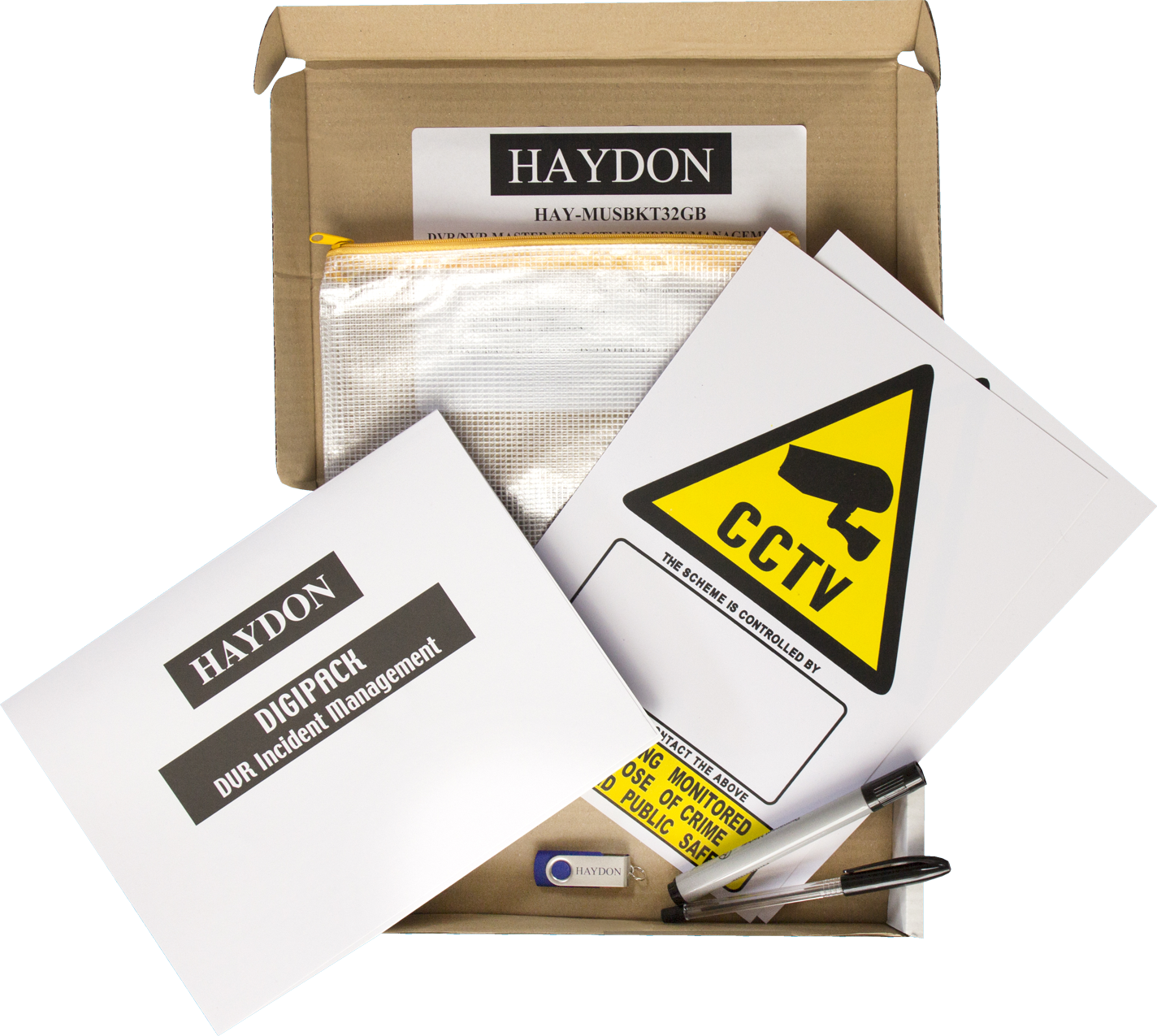

This kit provides the user with 25 incident report logs for CCTV evidence. The 32GB MASTER drive is to be kept on site and used for the users own backup of any incident until the authorities have finished with the evidence. If anything happens to the original evidence given to the authorities you have a backup as the DVR/NVR will usually have written over the evidence. After any case is finished then the incident on the Master drive must be deleted. 2 X Data Protection compliant CCTV A4 warning signs where you write the operators name & contact details with the permanent marker provided. This pack is designed to be used with HAY-5USB16GBPK which are the drives and evidence bags for incident downloads to be used by the authorities.
Contains:
- 1 X Digital incident logbook – which includes
- 25 triplicate incident reports
- 10 Subject access request forms
- 2 x WSA4 Warning signs A4 size
- 1 x Permanent Marker for writing operators contact details on the signs
- 1 x Security Ink pen (ballpoint) for writing in the incident logbook. Tamper-proof, Waterproof and Fade-proof ink.
- 1 x 32GB USB MASTER DRIVE, this is a grade “A” NAND flash & with high quality SMI controller chip. Fast read & write speeds, manufactured with 20 point ISO certification quality control for every drive. Ten year warranty.
- 1 x A5 Zip Bag Mesh reinforced clear PVC. To keep the USB and Pens safe on site.
