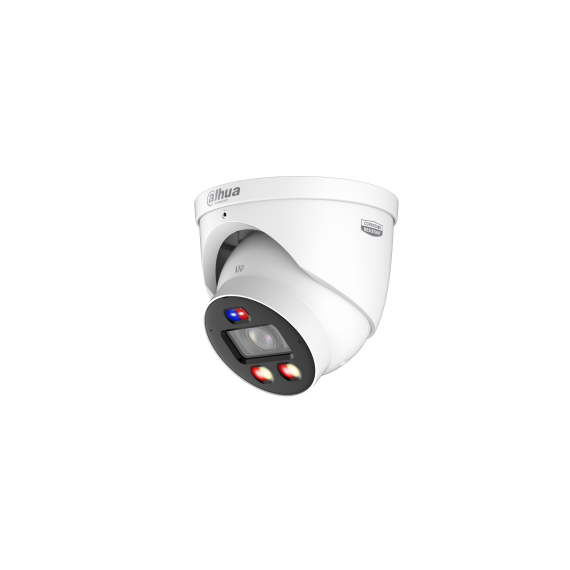

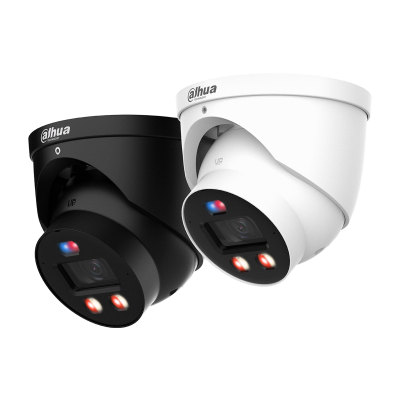

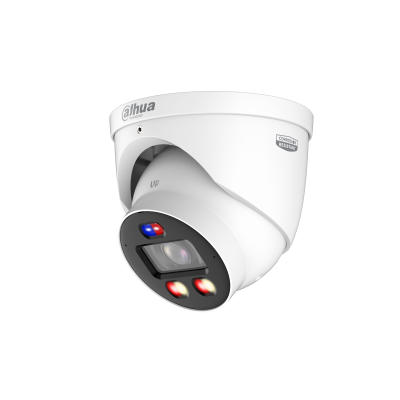

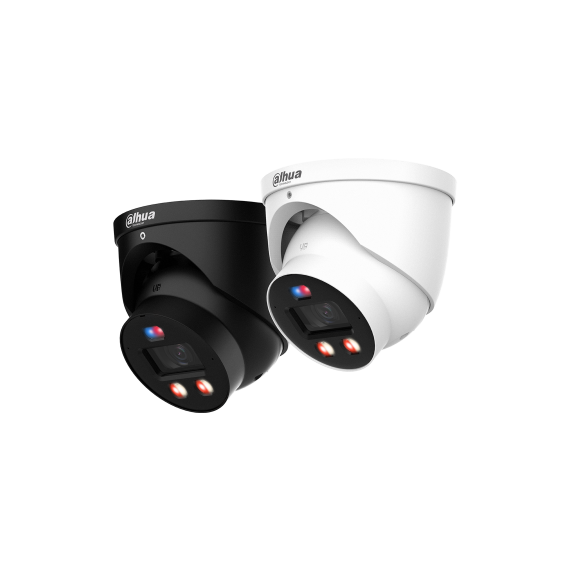

Dahua IPC-HDW3649HP-AS-PV-0280B-PRO 6MP WizSense TiOC Pro Eyeball IP Camera (2.8mm, Active Deterrence, Smart Dual Light, Two-Way Audio)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Dahua IPC-HDW3649HP-AS-PV-0280B-PRO 6MP WizSense TiOC Pro Eyeball IP Camera (2.8mm, Active Deterrence, Smart Dual Light, Two-Way Audio)
The Dahua IPC-HDW3649HP-AS-PV-0280B-PRO is an advanced 6MP eyeball network camera from Dahua's TiOC Pro (Three-in-One Camera) Series, combining intelligent detection, active deterrence, and full-color surveillance in a single professional security solution. Built around a high-performance progressive CMOS sensor, the camera delivers sharp video at up to 6MP resolution (3288 × 1850), ensuring excellent image quality for identification and evidence collection. As part of Dahua's WizSense AI platform, the camera uses deep-learning algorithms to accurately distinguish humans and vehicles from irrelevant motion, dramatically reducing false alarms. Advanced perimeter protection features including intrusion detection and tripwire detection provide reliable event-based monitoring for commercial, industrial, and residential environments. A key feature of the TiOC Pro series is its active deterrence capability. When an intrusion event is detected, the camera can trigger flashing red and blue warning lights along with customizable audio warnings, helping to discourage potential intruders before incidents escalate. This proactive approach improves site security and reduces response times.
KEY FEATURES
- 6MP resolution (3288 × 1850)
- 1/2.7" Progressive CMOS image sensor
- Fixed 2.8mm wide-angle lens
- TiOC Pro active deterrence technology
- Smart Dual Light (IR + Warm White LED)
- Full-color night surveillance
- Red & blue flashing warning lights
- Built-in siren and customizable audio alarms
- WizSense AI human and vehicle classification
- SMD 4.0 intelligent motion detection
- Perimeter protection (Intrusion & Tripwire)
- Built-in microphone and speaker
- Two-way audio communication
- Smart H.265+ / Smart H.264+ compression
- AI H.265 / AI H.264 encoding
- 120dB True WDR
- 3D Noise Reduction (3D NR)
- AI Scene Self-Adaptation (AI SSA)
- Defog, BLC, HLC and ROI functions
No reviews found
