Dahua IPC-HDW3649HP-ZAS-PV-2712-PRO 6MP WizColor TiOC Pro Motorised Varifocal Eyeball IP Camera (2.7–12mm, Active Deterrence, Smart Dual Light, Two-Way Audio)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Dahua IPC-HDW3649HP-ZAS-PV-2712-PRO 6MP WizColor TiOC Pro Motorised Varifocal Eyeball IP Camera (2.7–12mm, Active Deterrence, Smart Dual Light, Two-Way Audio)

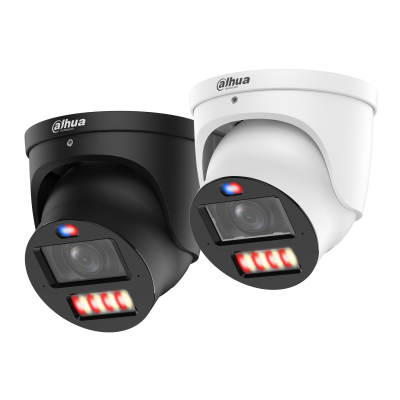

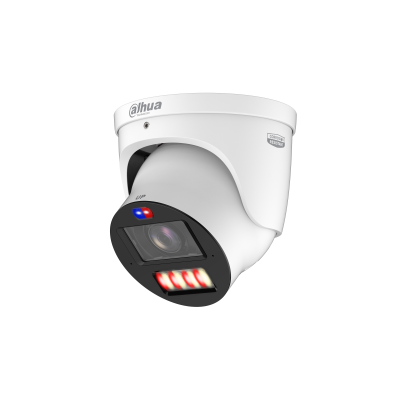

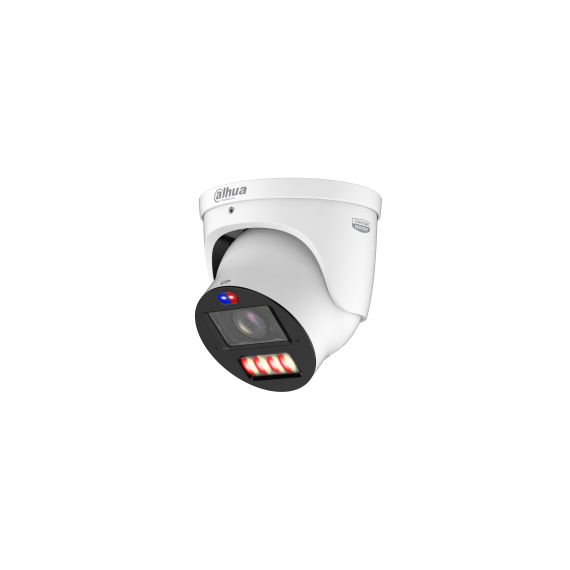

The Dahua IPC-HDW3649HP-ZAS-PV-2712-PRO is a high-end 6MP network eyeball camera from Dahua's WizSense 3 Series and TiOC Pro family, combining intelligent detection, active deterrence, full-color imaging, and advanced AI analytics in a single surveillance solution. Built around a large 1/1.8" CMOS image sensor, the camera delivers exceptional low-light performance and captures video at up to 3288 × 1850 resolution, providing detailed evidence-quality footage day and night. The camera features a motorised 2.7–12mm varifocal lens, allowing remote zoom and focus adjustment after installation. This flexibility enables users to cover wide areas or focus on specific targets without physically repositioning the camera. The lens offers a horizontal viewing angle ranging from approximately 112° to 48°, making it suitable for entrances, parking areas, warehouses, commercial sites, and perimeter protection. As a TiOC Pro (Three-in-One Camera), it combines intelligent monitoring, active deterrence, and full-color evidence collection. When an intrusion event is detected, the camera can activate red and blue warning lights, built-in audio warnings, and two-way communication features to discourage intruders before incidents escalate.
KEY FEATURES
- 6MP resolution (3288 × 1850)
- Large 1/1.8" CMOS image sensor
- Motorised 2.7–12mm varifocal lens
- WizColor full-color technology
- TiOC Pro active deterrence system
- Smart Dual Light (IR + Warm White Light)
- Up to 50m IR illumination
- Up to 50m warm light illumination
- Red & blue flashing warning lights
- Built-in speaker with customizable audio warnings
- Built-in dual microphones
- Two-way audio communication
- WizSense AI analytics
- SMD 4.0 human & vehicle detection
- AcuPick intelligent target search
