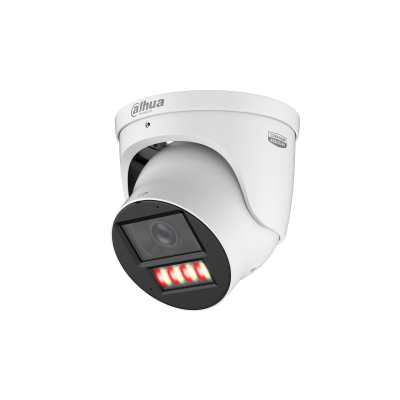

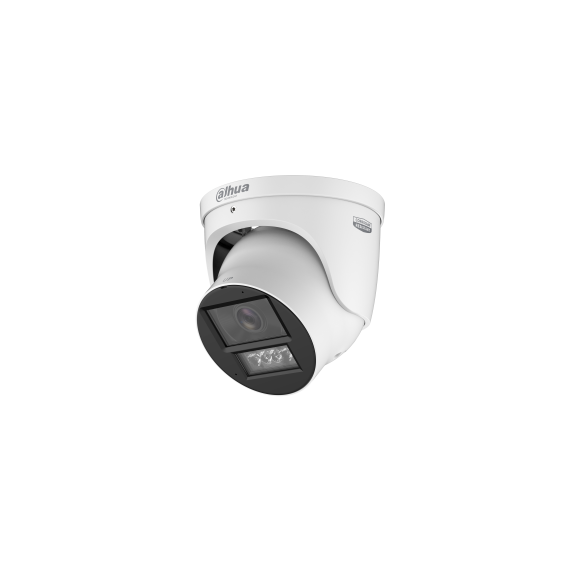

Dahua IPC-HDW5859HP-ASE-PV-0280B-PRO-ATC, 8MP WizMind Full-Colour AI Anti-Corrosion Eyeball Camera
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Dahua IPC-HDW5859HP-ASE-PV-0280B-PRO-ATC, 8MP WizMind Full-Colour AI Anti-Corrosion Eyeball Camera
The Dahua IPC-HDW5859HP-ASE-PV-0280B-PRO-ATC is part of Dahua’s WizMind 5 Pro series, engineered for intelligent surveillance in harsh and corrosive environments such as ports, chemical plants, coastal zones, and heavy industrial facilities. It features an 8MP (3840 × 2160) 1/1.8” CMOS sensor that provides exceptional image clarity and detail. Combined with WizColor technology, the camera delivers vivid full-colour images even in extremely low-light conditions, reducing reliance on IR-only night vision. Powered by Dahua’s advanced AI engine, the camera supports multiple intelligent functions such as perimeter protection (tripwire, intrusion detection), SMD (Smart Motion Detection), face detection, people counting, and AcuPick smart search. These features help improve detection accuracy while minimizing false alarms. For proactive security, the camera integrates active deterrence functions including built-in speaker, siren, and warm light warning system, enabling real-time intrusion response. It also supports two-way audio communication via built-in microphones and speaker.
KEY FEATURES
- 8MP Ultra HD resolution (3840 × 2160)
- 1/1.8” high-performance CMOS sensor
- WizColor full-colour low-light imaging technology
- Advanced AI analytics (face detection, IVS, SMD, people counting)
- AcuPick smart video search support
- Active deterrence (warm light, siren, speaker warning)
- Built-in dual microphones & two-way audio support
- IP67 weather resistance & IK10 vandal protection
- Professional anti-corrosion design (C5-H / NEMA 4X equivalent)
- Smart H.265+/H.265 video compression
- PoE / PoE+ / ePoE power support
- 130 dB WDR for high-contrast lighting scenes
- Up to 60 m IR + up to 50 m warm light illumination
