Haydon HAY-1M-HDMI High-Speed HDMI 1.4 Cable 1m with 4K Ultra HD Support
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

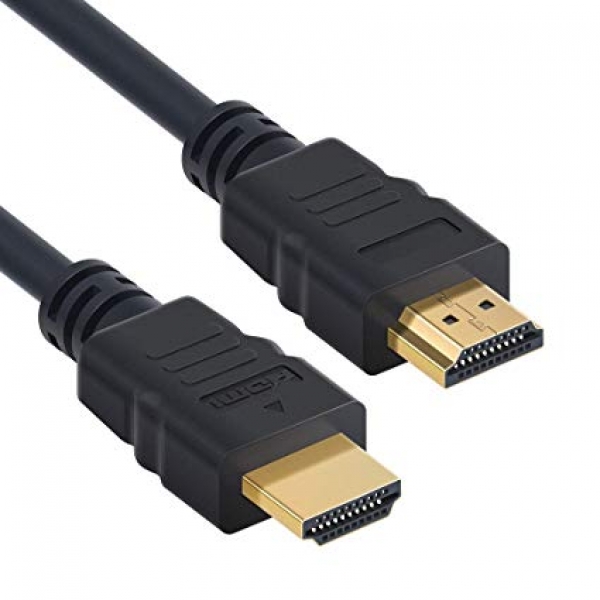

Haydon HAY-1M-HDMI High-Speed HDMI 1.4 Cable 1m with 4K Ultra HD Support
The Haydon HAY-1M-HDMI is a professional-grade High-Speed HDMI 1.4 digital interface cable engineered to provide dependable audio and video connectivity for a wide range of multimedia applications. With a 1-metre cable length, it is ideal for connecting televisions, monitors, projectors, CCTV recorders, gaming consoles, Blu-ray players and other HDMI-compatible devices where a short, high-quality connection is required.
Built to the HDMI 1.4 specification, the cable supports Ultra HD 4K and 2K resolutions at up to 30Hz, together with 1080p Full HD video output. It also supports 3D content, allowing compatible devices to deliver immersive three-dimensional entertainment and presentation experiences. With support for the Audio Return Channel (ARC), compatible televisions can send audio back to AV receivers or soundbars using the same HDMI cable, reducing cable clutter and simplifying installation.
The cable provides data transfer speeds exceeding 10.2 Gbps, ensuring smooth transmission of high-definition video and multi-channel digital audio. Constructed using 30 AWG conductors with 15+1 CCS configuration, the HAY-1M-HDMI incorporates triple shielding and copper-shielded, gold-plated connectors to minimise electromagnetic interference and maintain excellent signal integrity even in demanding AV environments.
KEY FEATURES
- High-Speed HDMI 1.4 digital interface cable
- 1-metre cable length
- Supports 4K Ultra HD (3840 × 2160) at 30Hz
- Supports 2K and 1080p Full HD resolutions
- Supports Audio Return Channel (ARC)
- Compatible with 3D video
- Data transfer speeds exceeding 10.2 Gbps
- Gold-plated connectors
- Triple-shielded cable construction
- Copper-shielded connectors
- 30 AWG cable
- 15+1 CCS conductor configuration
- 6.0mm cable outer diameter
- Suitable for TVs, monitors, projectors, CCTV and AV equipment
- Limited Lifetime Warranty
