Haydon HAY-RJ45BL2MCAT5 Blue CAT5e RJ45 Ethernet Patch Lead 2m (Pack of 5)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

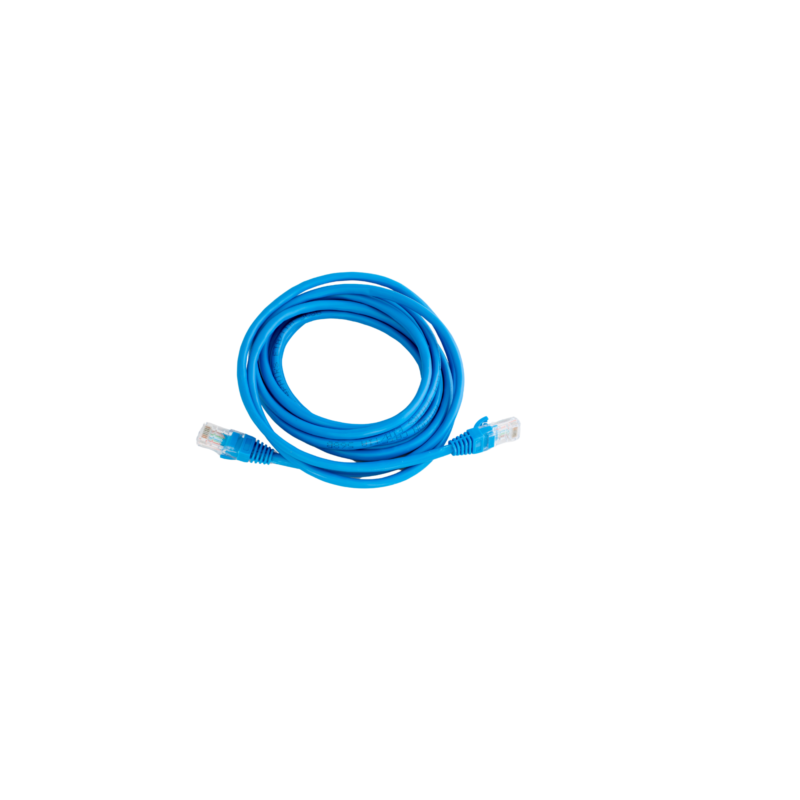

Haydon HAY-RJ45BL2MCAT5 Blue CAT5e RJ45 Ethernet Patch Lead 2m (Pack of 5)
The Haydon HAY-RJ45BL2MCAT5 is a high-quality CAT5e RJ45 Ethernet patch lead designed to provide dependable network connectivity for professional CCTV, IT and structured cabling applications. Supplied in a convenient pack of five, each 2-metre grey patch lead is suitable for connecting networking equipment where additional cable length is required without compromising installation quality or performance.
Manufactured using 26 AWG stranded conductors, the cable offers excellent flexibility while maintaining consistent signal transmission for everyday Ethernet networking. Each lead is terminated with industry-standard 8P8C RJ45 modular connectors, ensuring compatibility with network switches, routers, patch panels, IP cameras, NVRs, computers, printers, VoIP phones, access control systems and other Ethernet-enabled devices. The cable follows the recognised EIA/TIA-568B wiring configuration, ensuring seamless integration into existing network infrastructures.
To maximise long-term reliability, the RJ45 connectors feature gold-plated contacts, reducing contact resistance and helping to maintain stable, high-quality data transmission. Each connector is protected by a moulded snagless boot, preventing damage to the retaining clip during installation whilst providing effective strain relief for improved cable durability.
KEY FEATURES
- CAT5e RJ45 Ethernet patch lead
- 2-metre cable length
- Supplied in a pack of five
- Blue cable finish
- RJ45 (8P8C) male connectors
- 26 AWG stranded conductors
- Gold-plated connector contacts
- Moulded snagless strain-relief boot
- Durable PVC outer jacket
- EIA/TIA-568B wiring configuration
- Supports up to 350MHz bandwidth
- Flexible cable construction
- Suitable for CCTV and IP networking
- Compatible with switches, routers and patch panels
- Ideal for structured cabling and Ethernet installations
