Haydon HAY-VESA13-30 Vesa Tilt Monitor Mount, Basic Bracket 100x100 max
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

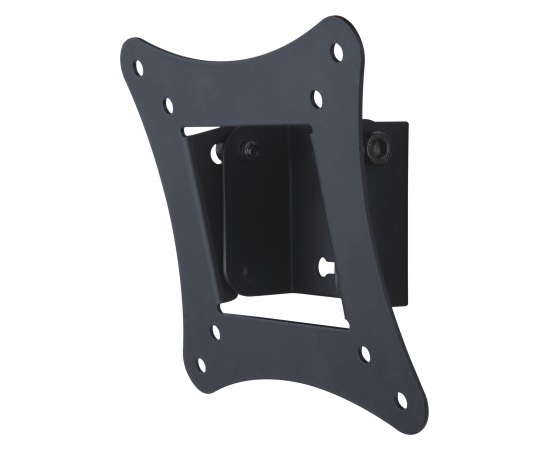

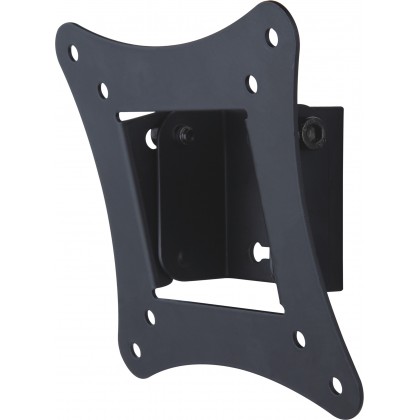

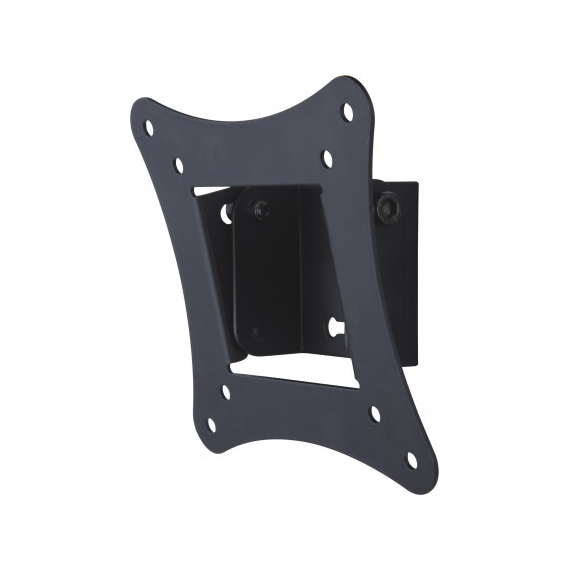

Haydon HAY-VESA13-30 VESA Tilt Monitor Mount – Basic Bracket 100 × 100
The Haydon HAY-VESA13-30 is a compact and reliable VESA tilt monitor wall mount designed for small to medium-sized monitors and displays. It provides a simple, space-saving mounting solution for CCTV monitoring screens, office displays, retail installations, and professional AV applications where a low-profile wall mount is required.
Designed for screens from 13" to 43", the HAY-VESA13-30 supports displays up to 15 kg and is compatible with VESA mounting patterns up to 100 × 100 mm (including 75 × 75 mm compatibility). Its adjustable tilt function allows the display angle to be positioned for improved viewing comfort and visibility.
The low-profile design positions the monitor only 30 mm from the wall, helping maintain a neat installation while saving space. The lightweight construction makes it suitable for quick and straightforward installation in CCTV control rooms, reception areas, offices, and commercial environments.
Key Features:
- Genuine Haydon VESA monitor wall mount bracket
- Suitable for 13"–43" screens
- Maximum load capacity: 15 kg
- Maximum VESA size: 100 × 100 mm
- Supports VESA 75 × 75 mm mounting patterns
- Tilt adjustment: 0° to 12°
- Low-profile wall distance: 30 mm
- Lightweight design: approximately 0.45 kg
- Compact and easy installation
- Suitable for CCTV monitors, AV displays, offices, retail, and commercial applications
- Durable construction for reliable everyday use
The Haydon HAY-VESA13-30 Tilt Monitor Mount is an ideal choice for installers looking for a simple and economical monitor mounting solution. Its slim profile, adjustable tilt, and VESA compatibility make it well suited for security monitoring stations and professional display installations where flexibility and reliability are required.
Please note: Always confirm the monitor’s VESA pattern and weight before installation. The mounting wall or surface must be capable of safely supporting the combined weight of the monitor and bracket.
