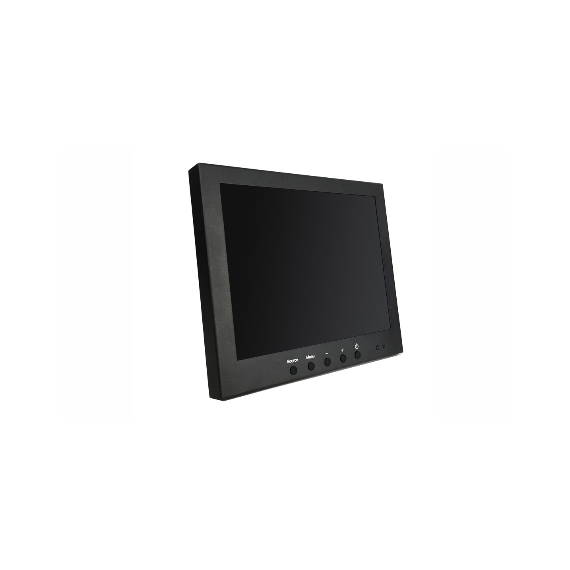

10.1" LED 16:9 Vigilant Vision Monitor with BNC In/Out, VGA, HDMI and Glass Front
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

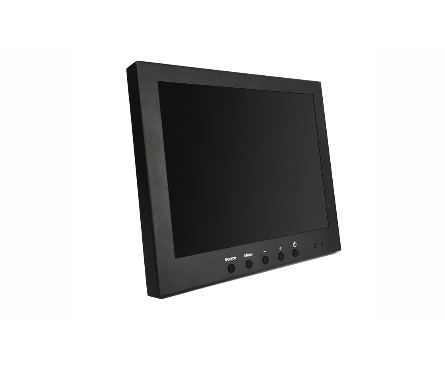

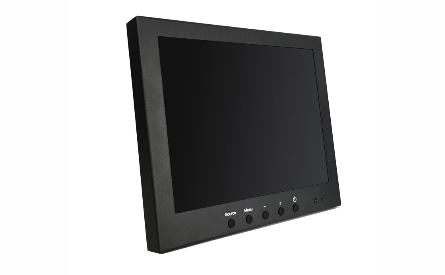

Vigilant Vision DSM10.1LED-WGF 10.1" LED CCTV Monitor
The Vigilant Vision DSM10.1LED-WGF is a compact 10.1" LED monitor designed for CCTV and security applications, with a durable metal case and glass front for a clean, professional finish.
It features a 16:9 display with a maximum resolution of 1280 x 800, together with HDMI, VGA, BNC input and BNC output connections. This gives installers plenty of flexibility when connecting DVRs, cameras and other compatible video equipment. Built-in stereo speakers and a 3.5mm audio connection are also included.
The monitor can be used on a desk or wall mounted using its 75 x 75mm VESA mounting points. With a brightness of 300 cd/m², 800:1 contrast ratio and low power consumption of under 10W, it is well suited to continuous CCTV monitoring in homes, offices, shops and security environments.
Key Features:
- 10.1" LED display
- 16:9 aspect ratio
- 1280 x 800 maximum resolution
- Metal case with glass front
- 1 x HDMI input
- 1 x VGA input
- 1 x BNC video input
- 1 x BNC video output
- 3.5mm audio connection
- Built-in stereo speakers
- 300 cd/m² brightness
- 800:1 contrast ratio
- 12ms response time
- 16.7 million display colours
- 80/80/80/80° viewing angle
- 75 x 75mm VESA mounting
- Suitable for desk or wall mounting
- 12V DC 1A power supply
- Power consumption under 10W
- Operating temperature: 0°C to 50°C
- Includes power supply, stand, remote control, user guide and HDMI cable
