Haydon HAY-VESASW1 Vesa Monitor Bracket 200 x 200 Max with Swivel and Tilt
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

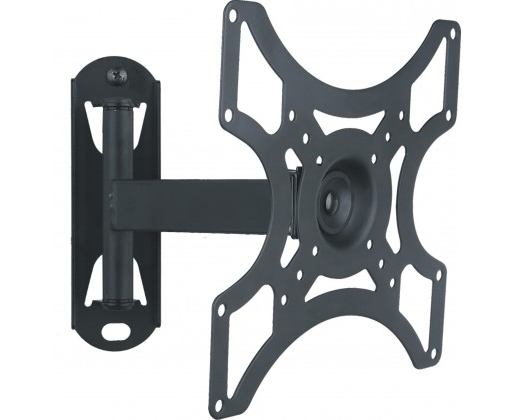

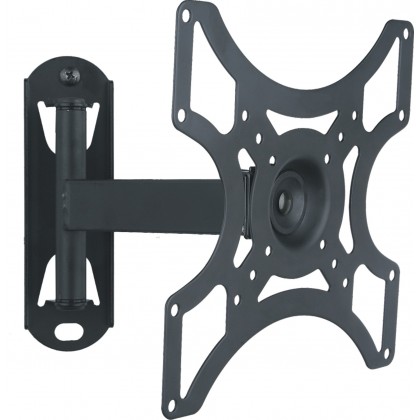

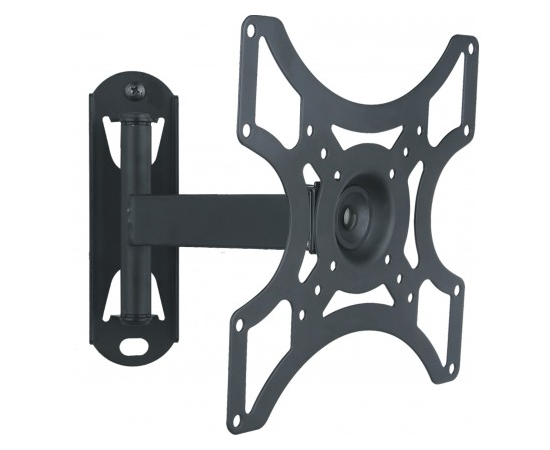

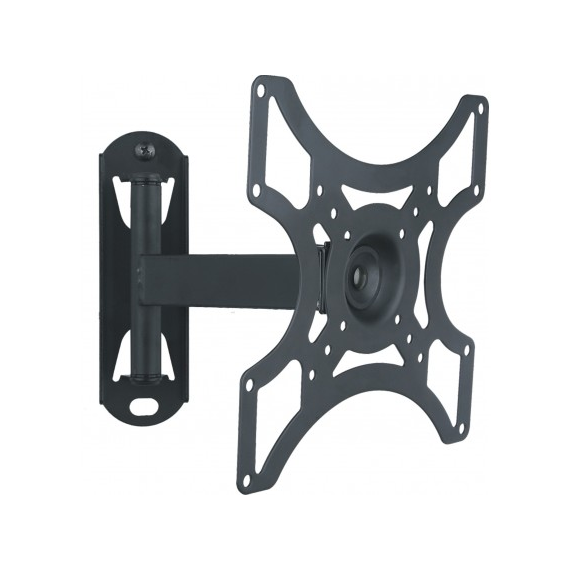

Haydon HAY-VESASW1 VESA Monitor Bracket 200 x 200 with Swivel and Tilt
The Haydon HAY-VESASW1 is a versatile VESA monitor wall bracket designed for secure mounting of 13" to 42" displays, including monitors commonly used in CCTV, security control rooms, offices, and commercial AV installations. Featuring swivel and tilt adjustment, it allows users to position the screen for improved viewing comfort and optimal visibility.
Designed to support VESA mounting patterns up to 200 × 200 mm, the HAY-VESASW1 provides compatibility with a wide range of small to medium-sized monitors. Its adjustable design allows the screen to be tilted and swivelled, making it easier to achieve the ideal viewing angle in different installation environments.
Built for reliable everyday use, this monitor bracket supports screens up to 25 kg and provides a strong, stable mounting solution for professional and domestic applications. Its compact design helps maximise desk and workspace areas while keeping displays securely mounted on walls.
Key Features:
- Haydon HAY-VESASW1 VESA monitor wall bracket
- Suitable for 13" to 42" screens
- Supports VESA mounting patterns up to 200 × 200 mm
- Swivel adjustment: ±45°
- Tilt adjustment: -15° to +15°
- Maximum load capacity: 25 kg
- Compact and robust design for secure wall mounting
- Ideal for CCTV monitors, security systems, offices, and AV installations
- Helps improve viewing position and screen accessibility
- Suitable for residential and commercial display applications
- Bracket weight: approximately 1.2 kg
The Haydon HAY-VESASW1 VESA Monitor Bracket is an ideal solution for installers and users requiring a reliable, adjustable wall mount for CCTV and display monitors. With flexible positioning, strong load support, and broad VESA compatibility, it provides a practical and professional mounting solution for a variety of screen installations.
