Haydon HAY-VESASW2 Vesa Monitor Bracket 200 x 200 max with double Swivel and Tilt
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

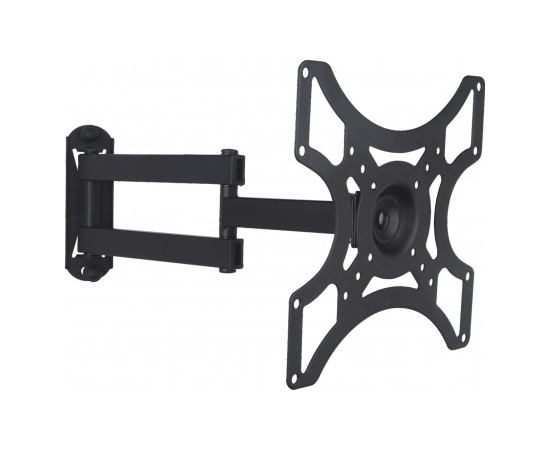

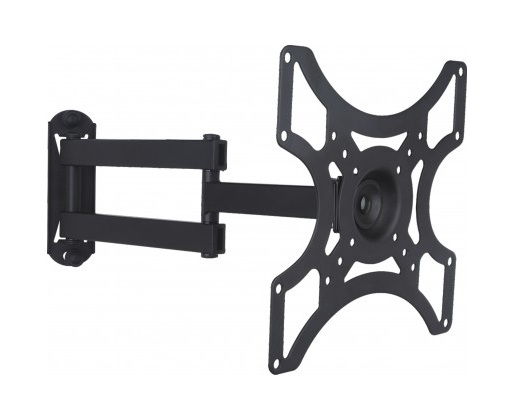

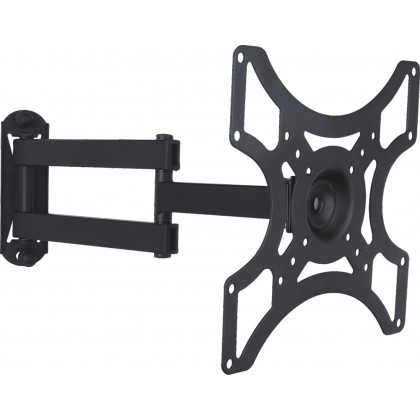

Haydon HAY-VESASW2 VESA Monitor Bracket 200 x 200 with Double Swivel and Tilt
The Haydon HAY-VESASW2 is a professional double swivel monitor wall bracket designed for 13–42 inch displays. It provides a flexible mounting solution for monitors used in CCTV control rooms, offices, commercial environments, and professional AV installations, offering adjustable viewing angles through swivel, tilt, and extension functions.
The bracket supports VESA mounting patterns up to 200 × 200 mm, including smaller 75 × 75 mm and 100 × 100 mm configurations. Its strong construction supports monitors weighing up to 25 kg, making it suitable for a wide range of security monitoring screens and display applications.
The HAY-VESASW2 features a dual swivel arm design with adjustable extension, allowing users to position the screen closer to or further away from the wall depending on viewing requirements. The tilt function helps optimise screen angle, improving visibility and user comfort in different installation environments.
Key Features:
- Haydon double swivel monitor wall bracket
- Suitable for 13–42 inch monitors and displays
- Maximum VESA compatibility: 200 × 200 mm
- Supports VESA patterns including 75 × 75 mm and 100 × 100 mm
- Maximum load capacity: up to 25 kg
- Tilt adjustment: -15° to +15°
- Swivel adjustment: -90° to +90°
- Extension range: 50 mm to 382 mm
- Black finish for a professional appearance
- Provides flexible screen positioning and viewing adjustment
- Suitable for CCTV monitoring stations, offices, meeting rooms, and AV installations
- Weight: approximately 1.38 kg
The Haydon HAY-VESASW2 VESA Monitor Bracket is an ideal solution for installers requiring a strong and adjustable wall mounting system for smaller to medium-sized displays. Its double swivel arm, tilt adjustment, and extended reach provide excellent flexibility for professional monitor positioning.
Please note: Always confirm that the monitor size, weight, and VESA mounting pattern are compatible with the bracket before installation. The mounting surface must be capable of supporting the combined weight of the monitor and bracket.
