Hikvision DS-1280ZJ-S Junction Box
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

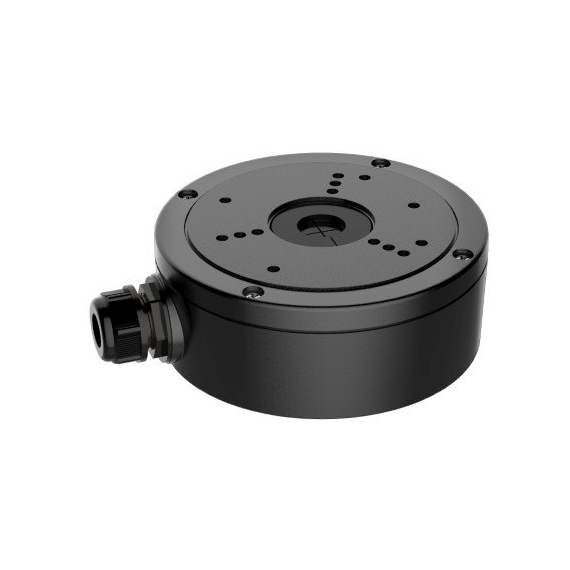

Hikvision DS-1280ZJ-S Junction Box

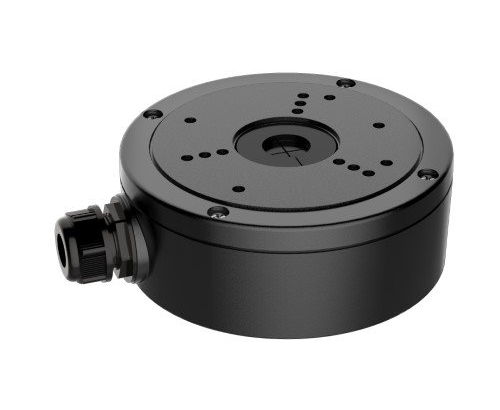

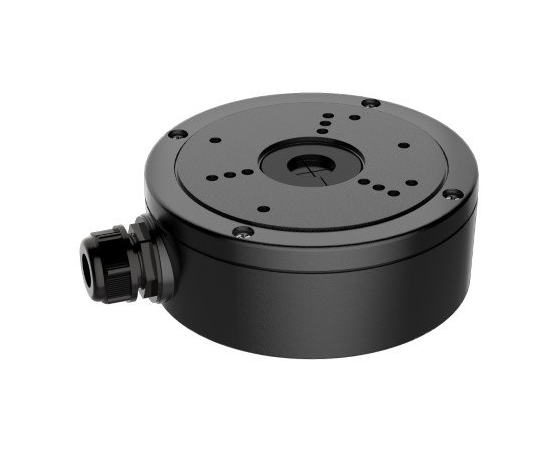

The Hikvision DS-1280ZJ-S is a robust junction box designed for compatible Hikvision dome camera installations. It provides a secure mounting platform while allowing installers to neatly conceal, organise, and protect camera cable connections, creating a cleaner and more professional CCTV installation.
Manufactured from high-quality aluminium alloy with a surface spray treatment, the DS-1280ZJ-S offers excellent durability and reliability for professional surveillance applications. Its strong construction provides secure camera support while helping protect power and network connections from exposure.
The junction box features a waterproof design and integrated cable management options, including a cable hole on the bracket to improve installation flexibility. It is ideal for installations where a tidy appearance, improved cable protection, and a secure mounting base are required.
Key Features:
- Genuine Hikvision junction box for compatible dome cameras
- Designed to provide secure camera mounting and cable management
- Durable aluminium alloy construction with surface spray treatment
- Hikvision White finish for a professional appearance
- Waterproof design for suitable outdoor applications
- Integrated cable hole for improved cable routing
- Helps conceal and protect power and network connections
- Provides a neat and professional camera installation finish
- Suitable for residential, commercial, and professional CCTV systems
- Dimensions: Ø137 × 54 × 171.5 mm
- Weight: approximately 660 g
- Maximum load capacity: up to 4.5 kg (installation dependent)
The Hikvision DS-1280ZJ-S Junction Box is an ideal accessory for installers requiring a dependable mounting and cable management solution for dome cameras. It improves installation quality by providing secure camera support, enhanced cable protection, and a clean finished appearance across a wide range of surveillance projects.
Please note: The junction box should be installed on a suitable flat surface capable of supporting more than three times the combined weight of the camera and mounting accessory. For outdoor installations, suitable waterproof sealing should be used to help maintain protection against moisture ingress.
