Uniview 4MP Tri-Guard AI Bullet IP Camera with Dual-Light Full-Color Night Vision & Two-Way Audio (UV-IPC2124SB-ADF28KMC-I1-W)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)
Uniview 4MP Tri-Guard AI Bullet IP Camera with Dual-Light Full-Color Night Vision & Two-Way Audio (UV-IPC2124SB-ADF28KMC-I1-W)

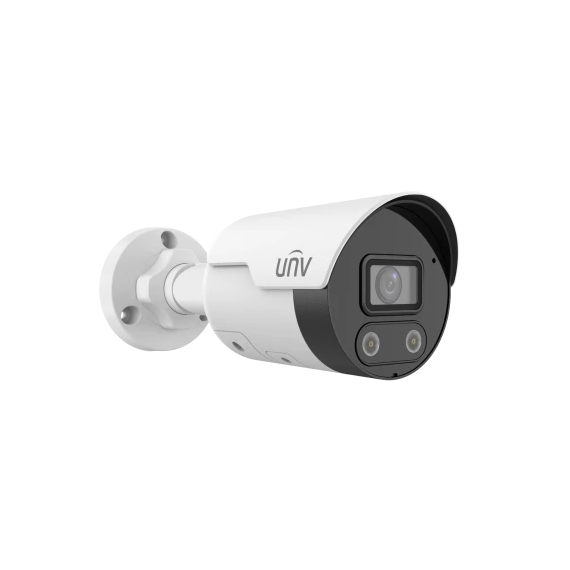

The UV-IPC2124SB-ADF28KMC-I1-W is a professional 4MP Tri-Guard bullet IP camera designed for smart security monitoring in homes, offices, warehouses, parking areas, and commercial spaces. Equipped with ColorHunter and Wise-ISP technology, it delivers vivid full-color images even in extremely low-light conditions. Its dual-light system combines IR and warm white light for enhanced night vision up to 40 meters, while AI-powered intrusion prevention accurately detects humans and vehicles to reduce false alarms. Built-in microphone and speaker support two-way audio communication, making it an ideal solution for intelligent outdoor surveillance
Key Features
- 4MP high-definition resolution (2688 × 1520)
- ColorHunter + Wise-ISP full-color night vision
- Dual-light technology (IR + warm light)
- Night vision range up to 40m
- 2.8mm fixed wide-angle lens
- AI smart intrusion prevention
- Human & vehicle classification
- Built-in microphone and speaker
- Supports two-way audio communication
- 130dB True WDR for strong backlight scenes
- Supports microSD storage up to 512GB
- Ultra 265 / H.265 / H.264 compression
- IP67 weatherproof metal housing
- PoE support for easy installation
- ONVIF compatible for NVR integration
Ideal Applications
Perfect for industrial zones, parking lots, retail stores, warehouses, and public areas, the IPC2B15SS-ADF28(40)KMC-I1 combines intelligent detection, full-color clarity, and active deterrence for complete, always-on protection.
