Uniview 4MP TriGuard 3.0 Bullet - UV-IPC2B14SE-ADF28KMC-WP-I1-B
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

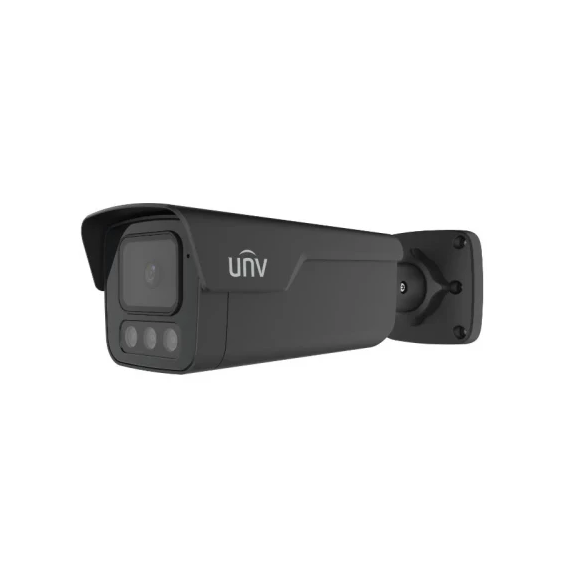

The Uniview IPC2B14SE-ADF28KMC-WP-I1 is a professional 4MP IP bullet camera designed for advanced outdoor surveillance. Featuring Uniview’s OwlView Plus and ColorHunter technology, it delivers clear full-colour images 24/7, even in very low-light conditions. The camera includes intelligent AI-based intrusion detection, active deterrence with warning lights and audio, dual microphones and speaker for two-way communication, and dual-light illumination with up to 40m IR and warm light range. Built with IP67, IK10, and NEMA 4X protection ratings, it is ideal for demanding commercial and industrial security installations.
High quality image with 4 MP, 1/1.8" CMOS sensor
• Features an F1.0 large-aperture lens
• 4 MP (2688 × 1520)@30/25 (default) fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP technology ensures 24-hour full-color images
• Intelligent perimeter protection, including cross line, intrusion, enter area, leave area detection
• Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
• Intelligent people flow counting and crowd density monitoring
• Smart intrusion prevention with color retrieval
• ASM (auto scene match)
• 130 dB true WDR technology enables clear image in strong light scene
• Supports 9:16 corridor mode
• Alarm I/O: 1/1, audio I/O: 1/1
• Built-in dual-mic and speaker
• Smart IR, up to 40 m (131.2 ft) IR distance
• White light, up to 40 m (131.2 ft) warm light distance
• MicroSD, up to 512 GB
• IK10 vandal resistant
• Supports NEMA 4X and IP67 protection
