Uniview 5MP EasyStar Analogue Turret Black (UV-UAC-T125-AF28LM-B)
Unless selecting a vari-focal camera (with an adjustable lens) It is important to select the correct camera lens option for where the camera is to be positioned. A smaller lens will give you a wider angle but will be "zoomed out more", while a bigger lens will narrow the angle down and "zoom in more". See below to give you some idea on angles of Megapixel HD Cameras:
| Lens in mm | Approx Viewing Angle (degrees) | Ideal Distance (metres) | Typical usage/notes |
|---|---|---|---|
| 2.8 | 106 | <6 | For seeing as much of the immediate area as possible such as above a doorway/low down/garage soffits (edges can appear slightly warped/distorted) - clearly "zoomed out" |
| 3.6/4 | 83-90 | <12 | A great general purpose option giving great coverage still in the corner of a room or higher up on second floor soffits with less distortion - more of a natural "zoom" |
| 6 | 56 | 6-20 | Narrows down the angle and zooms in to look past the immediate area a little to gain more detail - down a driveway for example from higher up |
| 12 | 24 | 20+ | Zooms in significantly more to look at a gate, entrance or adjascent building |
| 16 | 19 | 24+ | As above but more so |
The amount of hard drive space you require is dictated by how many cameras, as well as their resolution and frame rate settings. Finally you can often make your storage space last a lot longer by enabling motion detected recording rather than continuous, especially if there are long periods of no activity.
|
Resolution (Megapixels) |
Days of storage provided by 1TB per camera (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (continuous - full 25 frames per second) |
Days of storage provided by 1TB per 4 cameras (50% motion- 15 frames per second) |
|---|---|---|---|
| 1 | 44 | 11 | 36 |
| 2 | 22 | 5 | 18 |
| 3 | 17 | 4 | 14 |
| 4 | 11 | 3 | 9 |
| 5 | 9 | 2 | 8 |
| 6 | 8 | 2 | 6 |
| 8 (4K) | 5 | 1 | 4 |
| 12 | 4 | 0.5 | 3 |
As a rule of thumb we recommend a minimum of 2 Terabytes per 4 x 2-4MP HD cameras, as this should give you 2 weeks to a month with a few adjustments on motion detected recording. You may only require the full 25 frames per second on certain cameras if things are fast moving.
(All of our hard drives come fitted and are CCTV specific from one of the major brands)
- FREE UK Mainland Delivery for orders over £240
- Premium Services Available and Worldwide
- View all details here
12/24/36 months warrantiesGuarantee for all purchased goods in our online store is 1 year, most are 2.
1 Hour Delivery window notificationYou receive SMS messages about each stage of your order.
Return and exchange with easeYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.
Price match promiseWe will match or beat any other Authorized Reseller.
- Debit/Credit Card
- Visa, MasterCard, AMEX
- Paypal (Inc finance)
- Bank transfer (BACS)

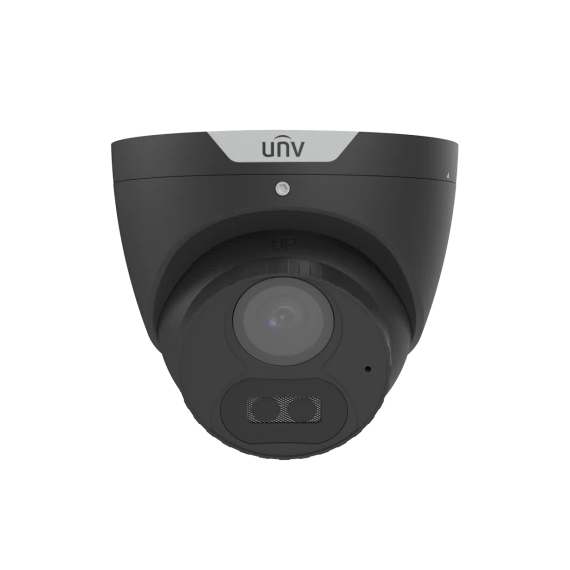

Uniview 5 MP IR Analogue Turrent Black UV-UAC-T125-AF28LM-W
The UV-UAC-T125-AF28LM-W is a high-performance 5MP LightHunter analog turret camera designed to deliver clear and detailed surveillance footage in both bright and low-light environments. Equipped with a 1/2.7" CMOS sensor and LightHunter technology, it provides enhanced sensitivity and superior image clarity during nighttime monitoring. The camera features a 2.8mm fixed lens with a wide viewing angle, making it ideal for homes, offices, retail stores, and outdoor security applications. Its dual IR illuminators provide up to 40 meters of infrared night vision, ensuring reliable visibility even in complete darkness. Supporting TVI, AHD, CVI, and CVBS outputs, the camera offers excellent compatibility with multiple DVR systems. It also includes a built-in microphone for audio transmission over coaxial cable, allowing synchronized audio and video recording. With IP67 weatherproof protection and a durable metal housing, the camera is built to withstand harsh outdoor environments while maintaining stable long-term performance.
Key Features
- 5MP high-resolution imaging (2880 × 1620)
- LightHunter technology for enhanced low-light performance
- 2.8mm fixed wide-angle lens
- IR night vision range up to 40m
- Built-in microphone for audio over coaxial cable
- Supports TVI / AHD / CVI / CVBS video outputs
- DWDR and 2D digital noise reduction
- Smart IR with automatic day/night switching
- IP67 waterproof and dustproof protection
- Metal front housing with durable construction
- OSD menu with support for 11 languages
- Supports 180° horizontal and vertical image flip
- Suitable for indoor and outdoor surveillance systems
